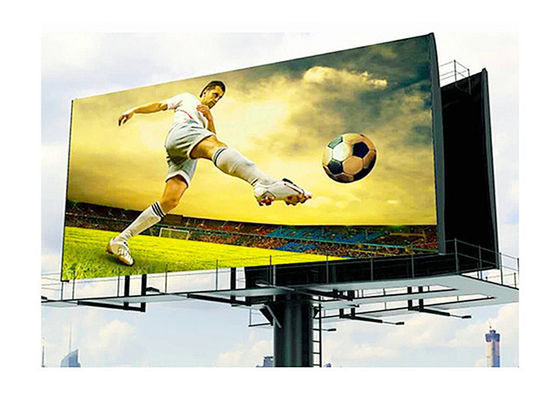

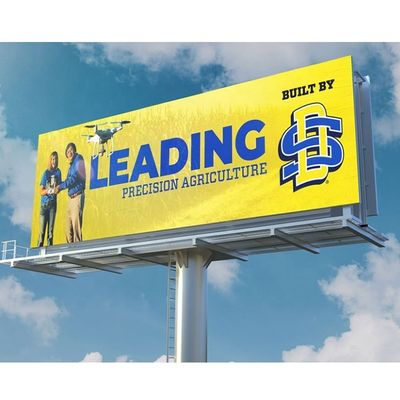

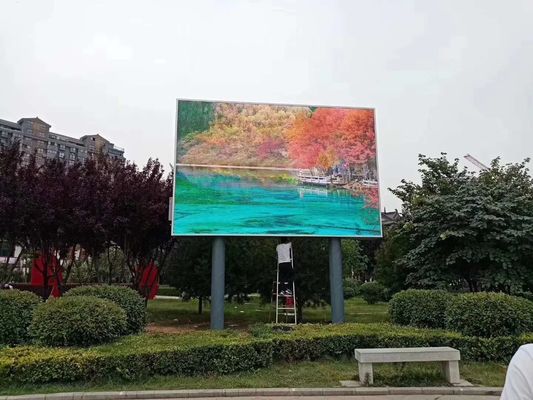

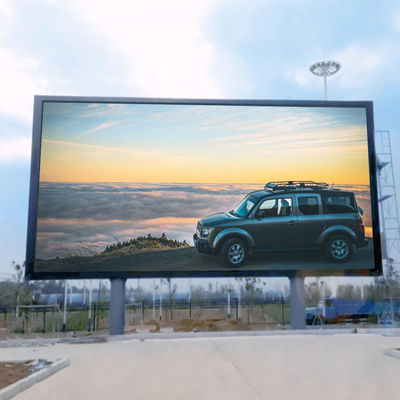

SMD P4 P5 P6 P8 P10 Outdoor LED Advertising Billboards Waterproof High Resolution

SMD P4 P5 P6 P8 P10 Outdoor LED Advertising Billboards Waterproof High Resolution

SMD P4 P5 P6 P8 P10 Outdoor LED Advertising Billboards Waterproof High Resolution
SMD P4 P5 P6 P8 P10 Outdoor LED Advertising Billboards Waterproof High Resolution

Product Details:

Place of Origin: ShenZhen in China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P6

Payment & Shipping Terms:

Minimum Order Quantity: 1sqm
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: Western Union, MoneyGram, D/P, T/T, L/C
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Pixels: 4mm Tube Chip Color: Full Color
Cabinet: Steel Or Aluminum For Options Pixel Configuration: 1R1G1B
Warranty: 3 Years Brand: SCXK
High Light:

led screen module

,

led sign module

SMD P4 P5 P6 P8 P9 Outdoor LED Advertising Display Screens Waterproof High Resolution



Features:

1. IP65 Level Waterproof,
2. High Quality Power and Control Card.
3. Standard cabinet size: 960mm*960mm, Depends the Display size,
4. Highly effective & quick for transportation and screen assembling
5. SMD black light, wider viewing angle, high-contrast(5000:1),soft image
6. Special buckles structural connection between the cabinets,don’t need other tools
7. Cabinets are in common use for standard modules,shorten production cycle

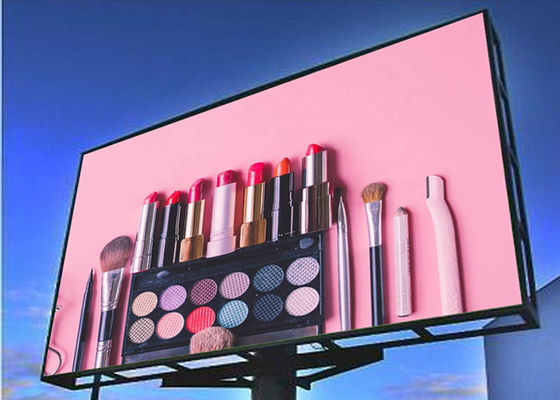

SMD P4 P5 P6 P8 P10 Outdoor LED Advertising Billboards Waterproof High Resolution 0

Products Description:



1. High Stability: Use high quality components and parts and sophisticated processing technique. Products with stable quality , high reliability and long life span.



2. Rich Content: It can show text, chart, graphic, cartoon ,video and so on.



3. High Refresh Rate: Adopt MBI5124 drive IC (Standard Configuration). The refresh rate can be as high as 1920Hz, which can eliminate ghost effect effectively. For rental led display, we prefer to adopt the MBI5252/ MBI5153 driver IC, the refresh rate can achieve 3840Hz. The graphics are stable with no wave or black screen. Video pictures are fine and smooth with clear edges. It has good dynamic expressiveness which can show the graphic information exactly/vividly and brings you perfect visual enjoyment.



4. High Resolution: Adopt high pixel density display unit with micro pitch, which can joint the boards together in any direction, any size and any shape to easily produce FHD, 4k big screen.



5. Superior Consistency Coupled with Low Brightness and High Gray: Adopt high quality black LED lamp with black cover. The contrast can be as high as 3000:1. Pictures are fine and clear with vivid color.



6. Super-wide view angle: 140°view angle and consistent display effect at multi direction , no mosaic phenomenon.



7. Advanced control system: Prefer adopting advanced and stable Nova Star control system, with the best led display control system, the most advanced pixel-level led display calibration system and the most professional software for specialized applications.



8. LED Single-lamp maintenance with low cost.



9. Environmental-friendly and energy-saving.





P4 LED Display Module Technical Parameter (T=25°C)

Technical Parameter

Parameters Values

Pixel Pitch

4mm

Physical Density

62500dots

Pixel Configuration

1R1G1B

LED Parameter

R: 82~102mcd ; 621~625nm
G: 245~305mcd; 524~528nm
B: 45~56mcd; 468~472nm

LED Encapsulation

SMD 2121Black (Nationstar or Aplight LEDs)

Module Size

256*128mm

Module Resolution

64*32dots

Cabinet Size

768*768mm

Cabinet Resolution

192*192dots

Driving Method

Constant Current

Scanning Mode

1/16 scan

Driving Device

MBI 5124 IC (Standard Configuration) or other High refresh rate driver IC

Module Working Voltage

DC 5V

Module Consumption

18W

Viewng Angle

140°

Frame Frequency

≥60Hz

Refresh Frequency

≥1920Hz

Equilibrium Brightness

>1400cd/m2

Working Environment Temperature

-10°C ~ 60°C

Working Environment Humidity

10% ~ 70% RH

Color Temperature

≥10000K

Gray Scale / Color

≥16.7M color

Mean Free Error Time

>5000hours

Change Frame Frequency

≥ 60Hz

Life Span

>100000hours

Lamp Failure Frequency

<0.0001

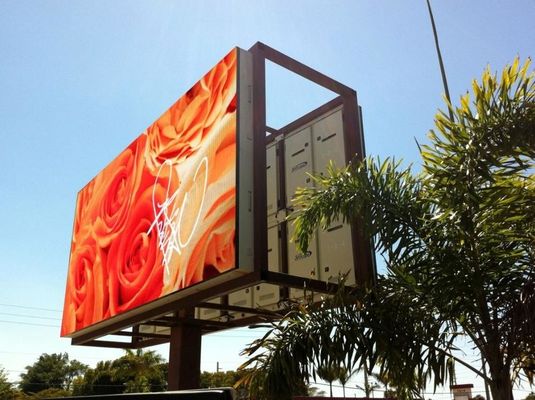

SMD P4 P5 P6 P8 P10 Outdoor LED Advertising Billboards Waterproof High Resolution 1

Certifications
Our former product like transparent soft LED display have CE, FCC and Rhos certificate, our new foldable flexible LED module display will have EC certificate soon, don't worry about the certificate, our product is complied of every international standard, so it is not hard to pass the CE criteria and we will get CE certificate soon
SMD P4 P5 P6 P8 P10 Outdoor LED Advertising Billboards Waterproof High Resolution 2



Packaging and shipping

Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.

SMD P4 P5 P6 P8 P10 Outdoor LED Advertising Billboards Waterproof High Resolution 3

Why choose us:

Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.



SMD P4 P5 P6 P8 P10 Outdoor LED Advertising Billboards Waterproof High Resolution 4
