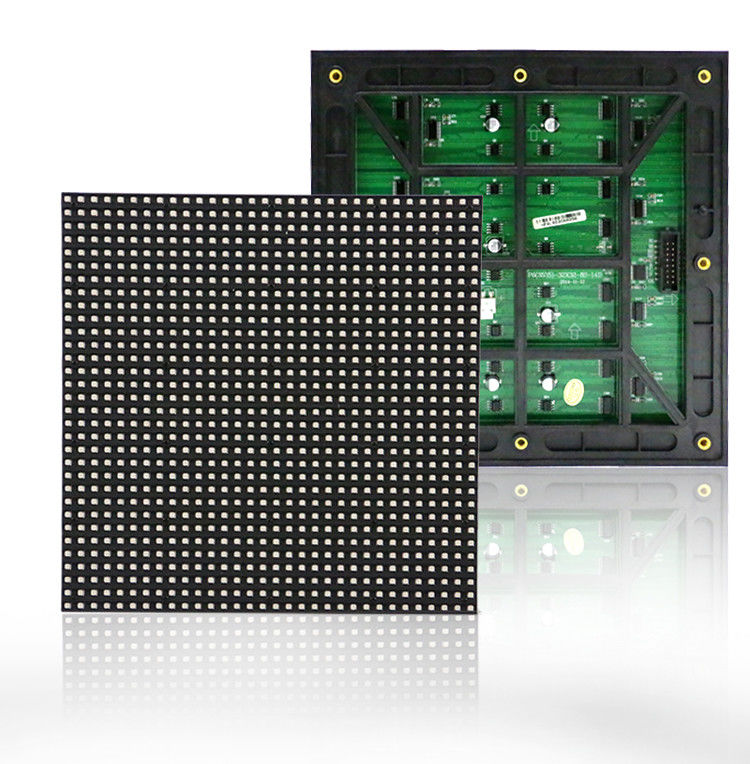

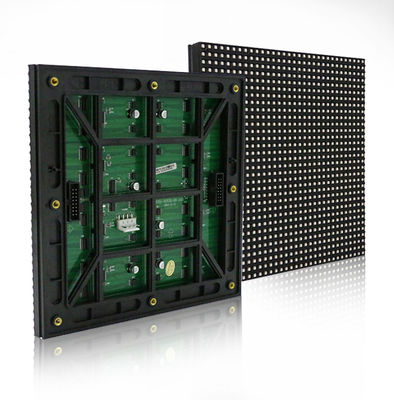

Indoor / Outdoor P6 Full Color LED Display Module With PCB Board Lightweight

Indoor / Outdoor P6 Full Color LED Display Module With PCB Board Lightweight

Indoor / Outdoor P6 Full Color LED Display Module With PCB Board Lightweight
Indoor / Outdoor P6 Full Color LED Display Module With PCB Board Lightweight
Indoor / Outdoor P6 Full Color LED Display Module With PCB Board Lightweight
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P6
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: T/T or western Union
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Product Name: P6 Led Display Module Module Size(W * H): 192mm*192mm
Standard: CE/ROHS/FCC/ISO2001 Tube Chip Color: Full Color
Pixel Pitch: 6mm Module Qty: 1pcs
Type: Free Standing Resolution(W*H): 64dots*32dots
High Light:

led display smd

,

outdoor smd led display

Indoor / Outdoor P6 Full Color Led Display Module With PCB Board Lightweight smd led display module





Feature:

1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.
2. Nice appearance and simple structures.
3. Jointed correctly, being installed & dismounted by one person without tool.
4. Humanized operating interface with breakdown indicator lights, easy to maintain.
5. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.



Technicail Specification:



Indoor SMD 3 in 1 full color LED Display
Module Pitch/mm P3 P4 P5 P6
  Module size/mm 192x192 128x128 160x160 384x192
  Density of pixel/(dots/m2) 111111 62,500 40,000 27,777
  Pixel composition 1R1G1B 1R1G1B 1R1G1B 1R1G1B
  Led encapsulation SMD2121 SMD2121 SMD3528 SMD3528
  Resolution of module 64X64 64X32 64X32 64X32
Main Optimum viewing distance 4-14m 5-15m 6-16m 7.5-20m
  View angle / ° 160 H,120 V 160 H,120 V 160 H,120 V 160 H,120 V
  Max power consumption/W/M2 2,300 2,000 1,700 1,400
  Size of cabinet/mm 576x576 512X384 640X480 768X576
  Weight of cabinet/kg 9 15 21 30
  Driving method 1/16 scan constant current 1/16 scan constant current 1/8 scan constant current 1/8 scan constant current
  Frame frequency / Hz/S ≥360 ≥360 ≥360 ≥360
  Refresh rate Hz/S ≥600 ≥600 ≥600 ≥600
  Luminance of white balance ≥2500 nits ≥2500 nits ≥2500 nits ≥2000 nits
  Operation of Environmental Temperature/°C below 30 to above 50
  Working vlotage 110-220 VAC/+/- 10%
  Grey scale/color displaying colors≥16.7M(synchronized)
  Brightness adjustment 256 levels of each color(manually),100 levels of each color(automatically)
  Input signal RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
  Control system linsn(sending card,receiving cards and Hubs)
  Average of non-failure life >50,00h
  Life span >100,000h
  Functionaless dot rate <0.0001

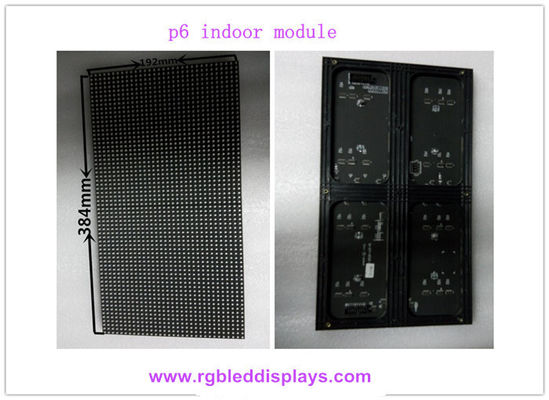

Indoor / Outdoor P6 Full Color LED Display Module With PCB Board Lightweight 0



About our factory:



Shenzhen Shichuangxinke Electronic Co.,Ltd was founded in 2005, is headquartered in Shenzhen, China.

we have been exported to USA,Canada,Argentina,Brazil,Ecuador,Venezuela,Honduras,Germany,Spain,Moldova,Poland,Netherlands,Russia,Sweden,France,Belgium,Turkey,Israel,Saudi Arabia,South Africa,Uganda,Egypt,Angola,India,Vietnam,Thailand,New Zealand,Australia and other 50 countries and regions,and gained a great reputation from customers.



We are the responsible manufacture who focus on LED display and LED lighting manufacturing and engineering solutions. SCXK has its own serial of advanced machines such as Full Automatic SMT Machine, Peak Welding Machine and Reflow Welding Machine for production. We make every processing of LED module which is most important part of LED display, which makes us a strict control of production procedures and product quality. Not only we focus on the R&D of products, but also we emphasize the quality. We are a production enterprise; we solve all the worries about quality for our customers. During production, we have strict Quality control, making sure every LED display have gone through strict tests and aging before enter into market.


We will do better and we will achieve higher.Wancolor LED will strongly promote the channel construction, the channel objectives are: to provide one-stop service to any demand customers.

Indoor / Outdoor P6 Full Color LED Display Module With PCB Board Lightweight 1Indoor / Outdoor P6 Full Color LED Display Module With PCB Board Lightweight 2

Indoor / Outdoor P6 Full Color LED Display Module With PCB Board Lightweight 3



Our Service



1) Training after order

After the order is placed, a processional training will be offered, including software use, operate safety, maintain equipment



2) Installation and debugging

BESD could send professionals to conduct on site installation and debugging in strict accordance with the requirements of the schemes and original manual.



3) Warranty

Warranty: 2 years warranty, lifetime maintenance

Equip with free spare parts. The first 2 years after shipment, we will be responsible for free maintenance if any problem caused by quality itself. While you should take the cost of the freight to us. After 2 years, service is still available, but would charge for labor, material and freight cost that generates.



4) Maintenance

Maintenance principles: response in time, solve problems asap and ensure the use.

Maintenance period: In the maintenance period of the led display body, free of all maintenance charges

After maintenance period, only charge the material cost and labor cost.





♦ Production process:



→1) Incoming Inspection→2)SMD→3)Plug-in

→4) Wave Soldering→5)After Welding→6)Testing

→7) Semi Finished Aging→8)Module Assembly

→9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing









Indoor / Outdoor P6 Full Color LED Display Module With PCB Board Lightweight 4





Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.



A. Flight case Packing
1) 150KG Per flight case
2) 3 cabinets in one case
3) Flight case size: 1010mm*560mm*1175mm=39inch*22inch*46inch



B. Plywood case
1) 180KG per plywood case
2) 3 cabinets in one case
3) Plywood case size: 1120mm*585mm*930mm= 44inch*23inch*36inch



C. Customized packing is acceptable
D. 20"FT container loading of 100sq.m





♦ Why choose us:



Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.







♦ FAQ



What kind of payment terms you can accept ?

We can accept T/T and Western Union.



What about your Led Display quality ?

Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of

our products continuity.



What is your delivery time ?

Within 7-35 days according to your area and quantity.



Is your LED display competitive ?

Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure

our led display’s competitiveness.
