P10 DIP SMD Outdoor High Resolution Advertising LED Screen board

P10 DIP SMD Outdoor High Resolution Advertising LED Screen board

  • P10 DIP SMD Outdoor High Resolution Advertising LED Screen board
  • P10 DIP SMD Outdoor High Resolution Advertising LED Screen board
  • P10 DIP SMD Outdoor High Resolution Advertising LED Screen board
P10 DIP SMD Outdoor High Resolution Advertising LED Screen board
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: p10
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Product Name: P10 DIP SMD Outdoor High Resolution Advertising LED Screen Board Item: SCX-P10
Usage: Outdoor Input Power: 220V/110V
Voltage: DC5V Function: Video, Picture
High Light:

advertising led display board

,

advertising led billboard

P10 DIP SMD Outdoor High Resolution Advertising LED Screen board​






Application



Widely use in stadiums, advertisement, banks, securities exchange, stations, shopping malls, postal offices, schools, restaurants, entertainment, enterprises ,highway etc


♦ Features:

1. light weight: single person can be a single hand, saving installation time;
2. thin box: box with die casting aluminum, high strength, toughness, high precision, easy deformation,its thickness is only 80mm;
3. Screen Ping: surface flatness error less than 0.2mm, the effective elimination of mosaic;
4. disassembly fast: the box is connected up and down with fast locking mechanism, pull the two handles 90 degrees to lock the two cabinet, 10s to complete a cabinet installation, high mounting accuracy. Enclosure and wiring connection fast and reliable, that is beautiful in appearance but also to achieve a real sense of the rapid disassembly;
5.Easy maintenance: modular design, installation and removal easy assembly Screen anywhere, simple to maintain
6.tolerance: a new structure designed to meet the lifting of laminated requirements to meet indoor and outdoor requirements. Box single, compatible with a variety of pitch, indoor-outdoor module compatibility
7.High gray high refresh rate design,gradation 14 bit,refresh rate above 960Hz
8.Low excellent thermal design and cooling performance, without an external fan, air conditioning, low noise; light box weight, low installation costs required; Low cabinet power consumption, saving operating costs.

♦ Technical specification

outdoor  SMD P10
Resolution/mm 10
Pixel configuration 1R1G1B
Pixel density/pixels/m² 10000/m²
Module resolution 32x16
Module size/mm 320x160
View distance 4-250m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >8000cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 16bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode Constant driving current
Scanning mode (1/4)
Frame rate 60Hz
Refresh frequency >3000Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss

Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃
Maximum power:/㎡ <950W
Average power:/㎡ <350W
Self-check technology

LED spot self-check, communications check, power check,
temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,
send out warning signs to the operators.(need customization)

Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast  (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%



♦ Production process

1) Incoming Inspection→2)SMD→3)Plug-in
→4) Wave Soldering→5)After Welding→6)Testing
→7) Semi Finished Aging→8)Module Assembly
→9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing

♦ Our mission:

To be the premier providr of creative,marketing and innovative solutions devoted to helping other companies succeed and grow.

♦ Applications

--- Outdoor and indoor advertising, digital billboards, advertising companies
--- Sports halls, fields, playgrounds,school church
--- Airports, bus stations and railway passenger terminals.
--- Facades of shopping malls, department stores, banks and car dealerships.
--- Architecture and social projects, information systems in cities.
--- Show-business, concerts, festivals, motor shows and other public events.

♦ Packaging and shipping

Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.

♦ Why choose us

Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.

Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.

Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.

Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.

♦ Our project

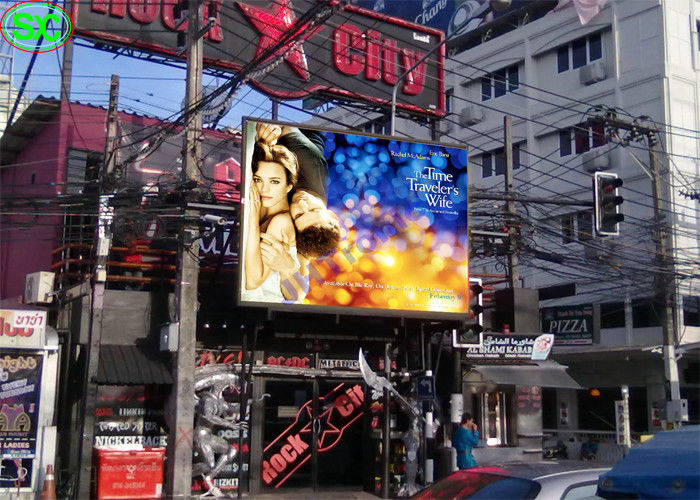

P10 DIP SMD Outdoor High Resolution Advertising LED Screen board 0
