Place of Origin: | China |
Brand Name: | SCXK |
Certification: | CE/ROHS/FCC/ISO/UL |
Model Number: | p10 |
Minimum Order Quantity: | negotiation |
---|---|
Price: | negotiation |
Packaging Details: | flight case, wooden case, carton, it is up to you. |
Delivery Time: | 7-10 working days after receive your payment |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 5000sqm per month |
Product Name: | P10 DIP SMD Outdoor High Resolution Advertising LED Screen Board | Item: | SCX-P10 |
---|---|---|---|
Usage: | Outdoor | Input Power: | 220V/110V |
Voltage: | DC5V | Function: | Video, Picture |
High Light: | advertising led display board,advertising led billboard |
P10 DIP SMD Outdoor High Resolution Advertising LED Screen board
♦ Application
Widely use in stadiums, advertisement, banks, securities exchange, stations, shopping malls, postal offices, schools, restaurants, entertainment, enterprises ,highway etc
♦ Features:
1. light weight: single person can be a single hand, saving installation time;
2. thin box: box with die casting aluminum, high strength, toughness, high precision, easy deformation,its thickness is only 80mm;
3. Screen Ping: surface flatness error less than 0.2mm, the effective elimination of mosaic;
4. disassembly fast: the box is connected up and down with fast locking mechanism, pull the two handles 90 degrees to lock the two cabinet, 10s to complete a cabinet installation, high mounting accuracy. Enclosure and wiring connection fast and reliable, that is beautiful in appearance but also to achieve a real sense of the rapid disassembly;
5.Easy maintenance: modular design, installation and removal easy assembly Screen anywhere, simple to maintain
6.tolerance: a new structure designed to meet the lifting of laminated requirements to meet indoor and outdoor requirements. Box single, compatible with a variety of pitch, indoor-outdoor module compatibility
7.High gray high refresh rate design,gradation 14 bit,refresh rate above 960Hz
8.Low excellent thermal design and cooling performance, without an external fan, air conditioning, low noise; light box weight, low installation costs required; Low cabinet power consumption, saving operating costs.
♦ Technical specification
outdoor SMD P10 | ||||||||||||||
Resolution/mm | 10 | |||||||||||||
Pixel configuration | 1R1G1B | |||||||||||||
Pixel density/pixels/m² | 10000/m² | |||||||||||||
Module resolution | 32x16 | |||||||||||||
Module size/mm | 320x160 | |||||||||||||
View distance | 4-250m | |||||||||||||
Single point brightness adjust | Can be added | |||||||||||||
Single point color adjust | Can be added | |||||||||||||
White balance brightness | >8000cd/㎡ | |||||||||||||
Color temperature | 6500K-9500K | |||||||||||||
Horizontal view angle | 120(degrees) | |||||||||||||
Vertical view angle | 60(degrees) | |||||||||||||
Signal Process bit | 10 or 16bit | |||||||||||||
Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | |||||||||||||
Driving mode | Constant driving current | |||||||||||||
Scanning mode | (1/4) | |||||||||||||
Frame rate | 60Hz | |||||||||||||
Refresh frequency | >3000Hz | |||||||||||||
Control mode | Computer synchronous | |||||||||||||
Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | |||||||||||||
Out of control point | <1/10000 | |||||||||||||
Working hours | ≥72hours | |||||||||||||
Mean Time Between Failure | >5000hours | |||||||||||||
Life time | 100000hours | |||||||||||||
Life-all-white(brightness halving) | 50000hours | |||||||||||||
Environment temperature range | Operating temperature range: -20-45℃ | |||||||||||||
Maximum power:/㎡ | <950W | |||||||||||||
Average power:/㎡ | <350W | |||||||||||||
Self-check technology | LED spot self-check, communications check, power check, | |||||||||||||
Remote monitoring | Remote supervision and control, record potential fault, | |||||||||||||
Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
Luminous point width between centres | Deviation<3% | |||||||||||||
Brightness uniformity | <10% | |||||||||||||
Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
Contrast | (1000:1) | |||||||||||||
System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
Humidity(working) | working:10-95% | |||||||||||||
Humidity(storing) | storing:10-95% |
♦ Production process
1) Incoming Inspection→2)SMD→3)Plug-in
→4) Wave Soldering→5)After Welding→6)Testing
→7) Semi Finished Aging→8)Module Assembly
→9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing
♦ Our mission:
To be the premier providr of creative,marketing and innovative solutions devoted to helping other companies succeed and grow.
♦ Applications

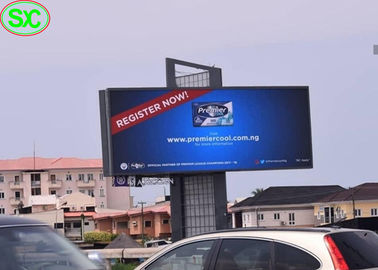

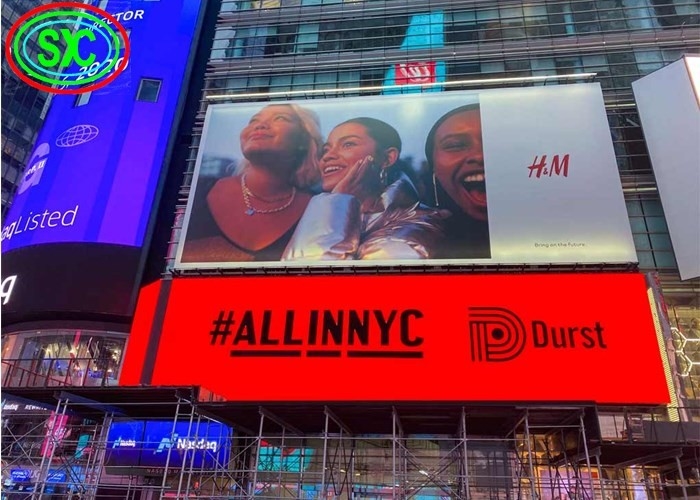

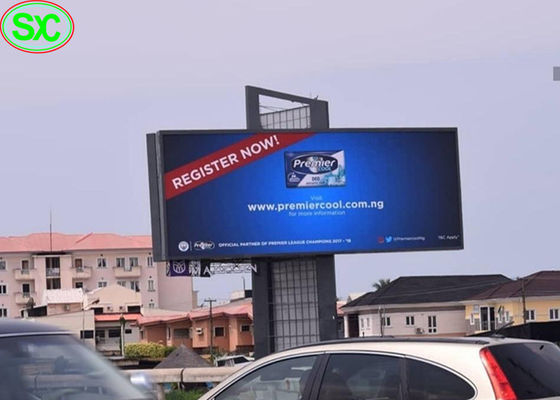

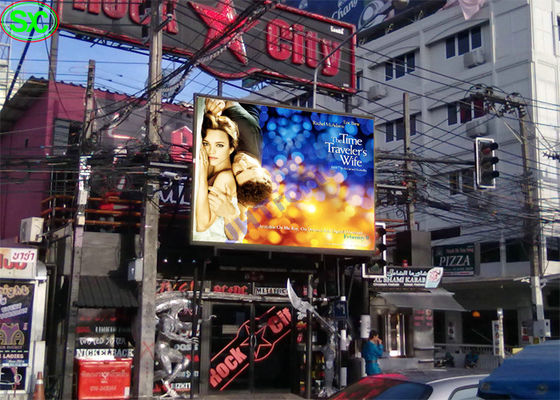

--- Outdoor and indoor advertising, digital billboards, advertising companies
--- Sports halls, fields, playgrounds,school church
--- Airports, bus stations and railway passenger terminals.
--- Facades of shopping malls, department stores, banks and car dealerships.
--- Architecture and social projects, information systems in cities.
--- Show-business, concerts, festivals, motor shows and other public events.
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Why choose us
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
♦ Our project
Our team will be forever here to offer you full supports !!!
