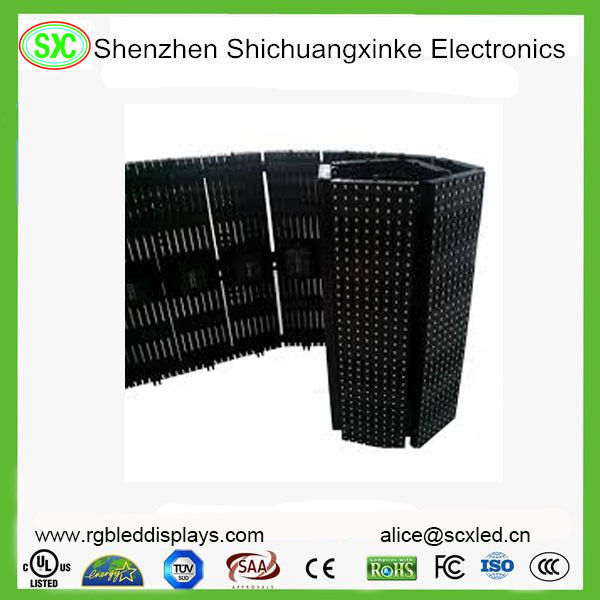

Soft Full Color RGB Stage LED Screens , Rolling Flexible LED Screen Panel 3G WIFI Control

Soft Full Color RGB Stage LED Screens , Rolling Flexible LED Screen Panel 3G WIFI Control

  • Soft Full Color RGB Stage LED Screens , Rolling Flexible LED Screen Panel 3G WIFI Control
  • Soft Full Color RGB Stage LED Screens , Rolling Flexible LED Screen Panel 3G WIFI Control
  • Soft Full Color RGB Stage LED Screens , Rolling Flexible LED Screen Panel 3G WIFI Control
Soft Full Color RGB Stage LED Screens , Rolling Flexible LED Screen Panel 3G WIFI Control
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: p10
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Full Name: Soft Full Color RGB Stage LED Display Operation Humidity(RH):: 0-95%
Color Capability:: 281 Trillion Screen Dimension: Any Customized Size
Storage Temperature(Celsius Degree):: -40~+85' Storage Humidity(RH):: 0-99%
High Light:

flexible led stage screens

,

flexible led display

Soft Full Color RGB Stage LED Screens , Rolling flexible led screen panel 3G WIFI Control





Feature



1. High Contrast, High Frequency & high Color Capacity: 8000: 1 Contrast Ratio- a very high level to ensure a vivid image of our LED displays system. 12000HZ High Frequency- a very high level to ensure a non-flicking video rebroadcasting. 16 bit, 281 trillion color Capacity-a very high gray grade to create a vivid live video effect.

2. First-class LED chip: Supplied by Next-generation Nichia LEDs maintain LED chip to ensure high brightness, uniform colors & the long lifetime our LED screen system.

3. Long-term high Calibrated Brightness: 14000nits brightness (for outdoor full color) (3500 nits brightness for indoor full color) capacity throughout product lifetime of the LED display

4. Clear vivid image quality even in direct, full-on sunlight to ensure you attracts more audience to get short ROI of your LED screen’s.

5. Easy Installation & Using: easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED screen system.



Technical specification



Resolution/mm 10mm
Pixel configuration 1R1G1B
Pixel density/pixels/m² 10000/m²
Module resolution 32x16
Module size/mm 320x160
View distance 9-500m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >8000cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 16bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode Constant driving current
Scanning mode (1/8)
Frame rate 60Hz
Refresh frequency >3000Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃
Maximum power:/㎡ <750W
Average power:/㎡ <250W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast  (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%



Items Indoor Led display:
P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10
Outdoor Led display:
P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25
Material steel,aluminum ,die casting aluminum
Payment
terms
30% deposit before production, 70% balance before shipping
T/T
Western Union
Packing: Standard Export Carton with fully Polyfoam or Pearl Wool
Flight case;
Anti-shaking wooden case
Shipping: 5 to 7 working days upon receiving deposit payment
After-Sales-Service: Lifetime with professional engineer support for free.
Within 5 year, supply spare parts for free if has quality problem
( not by man-made damage)
Using Range Shopping mall,bank,bus station, train station,
center of downtown, airport, school, factory, bus, taxi,and so on.



Advantage :



1 . Wide viewing angle: Viview led display show clear pictures or image without mosaics even when audiences see it from a small viewing angle;
2 . Rich colors: With three basic colors (red, green and blue), 256-level gradation of each color, and form 16777216 kinds of colors;
3 . Adjustable brightness: Viview LED screen brightness can be adjusted automatic and manual according to environment light;
4 . Good color blending: Display clear, exquisite, nature color video even at close distance;
5 . Wide range of display content: Viview led wall can easily to display txt documents, doc documents, pictures and video
6 . Led display usage range: Governmental plazas, Large-scale entertainment plazas, business and commercial centers, playground, station, airport and so on



Methods for Quality Assurance

a. Aging
1) 100% fully test
2) Condition: 72 hours with 256 grey level

b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range



♦ Production process



1) Incoming Inspection→2)SMD→3)Plug-in

→4) Wave Soldering→5)After Welding→6)Testing

→7) Semi Finished Aging→8)Module Assembly

→9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing



♦ Packaging and shipping



Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.
