Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | p10 |
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after receive your payment |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000sqm per month |
| Full Name: | Soft Full Color RGB Stage LED Display | Operation Humidity(RH):: | 0-95% |
|---|---|---|---|
| Color Capability:: | 281 Trillion | Screen Dimension: | Any Customized Size |
| Storage Temperature(Celsius Degree):: | -40~+85' | Storage Humidity(RH):: | 0-99% |
| High Light: | flexible led stage screens,flexible led display |
||

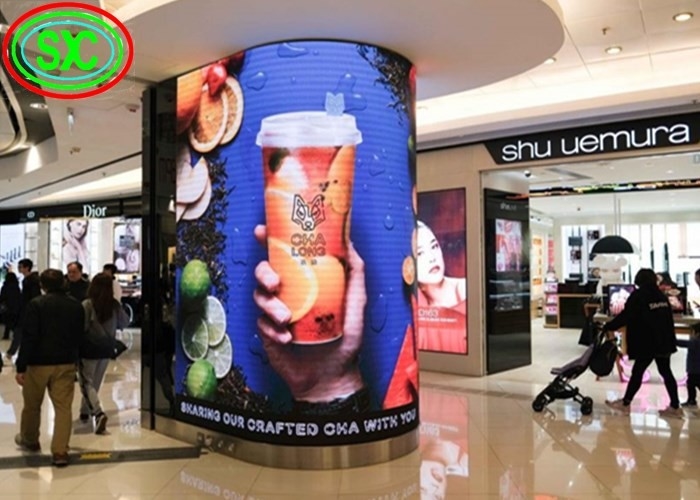

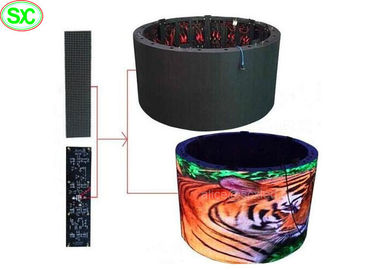

Soft Full Color RGB Stage LED Screens , Rolling flexible led screen panel 3G WIFI Control
Feature
1. High Contrast, High Frequency & high Color Capacity: 8000: 1 Contrast Ratio- a very high level to ensure a vivid image of our LED displays system. 12000HZ High Frequency- a very high level to ensure a non-flicking video rebroadcasting. 16 bit, 281 trillion color Capacity-a very high gray grade to create a vivid live video effect.
2. First-class LED chip: Supplied by Next-generation Nichia LEDs maintain LED chip to ensure high brightness, uniform colors & the long lifetime our LED screen system.
3. Long-term high Calibrated Brightness: 14000nits brightness (for outdoor full color) (3500 nits brightness for indoor full color) capacity throughout product lifetime of the LED display
4. Clear vivid image quality even in direct, full-on sunlight to ensure you attracts more audience to get short ROI of your LED screen’s.
5. Easy Installation & Using: easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED screen system.
Technical specification
| Resolution/mm | 10mm | |||||
| Pixel configuration | 1R1G1B | |||||
| Pixel density/pixels/m² | 10000/m² | |||||
| Module resolution | 32x16 | |||||
| Module size/mm | 320x160 | |||||
| View distance | 9-500m | |||||
| Single point brightness adjust | Can be added | |||||
| Single point color adjust | Can be added | |||||
| White balance brightness | >8000cd/㎡ | |||||
| Color temperature | 6500K-9500K | |||||
| Horizontal view angle | 120(degrees) | |||||
| Vertical view angle | 60(degrees) | |||||
| Signal Process bit | 10 or 16bit | |||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | |||||
| Driving mode | Constant driving current | |||||
| Scanning mode | (1/8) | |||||
| Frame rate | 60Hz | |||||
| Refresh frequency | >3000Hz | |||||
| Control mode | Computer synchronous | |||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||
| Out of control point | <1/10000 | |||||
| Working hours | ≥72hours | |||||
| Mean Time Between Failure | >5000hours | |||||
| Life time | 100000hours | |||||
| Life-all-white(brightness halving) | 50000hours | |||||
| Environment temperature range | Operating temperature range: -20-45℃ | |||||
| Maximum power:/㎡ | <750W | |||||
| Average power:/㎡ | <250W | |||||
| Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||
| Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||
| Luminous point width between centres | Deviation<3% | |||||
| Brightness uniformity | <10% | |||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||
| Contrast | (1000:1) | |||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||
| Humidity(working) | working:10-95% | |||||
| Humidity(storing) | storing:10-95% | |||||
| Items | Indoor Led display: P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10 Outdoor Led display: P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25 |
| Material | steel,aluminum ,die casting aluminum |
| Payment terms |
30% deposit before production, 70% balance before shipping |
| T/T | |
| Western Union | |
| Packing: | Standard Export Carton with fully Polyfoam or Pearl Wool |
| Flight case; | |
| Anti-shaking wooden case | |
| Shipping: | 5 to 7 working days upon receiving deposit payment |
| After-Sales-Service: | Lifetime with professional engineer support for free. |
| Within 5 year, supply spare parts for free if has quality problem ( not by man-made damage) |
|
| Using Range | Shopping mall,bank,bus station, train station, center of downtown, airport, school, factory, bus, taxi,and so on. |
Advantage :
1 . Wide viewing angle: Viview led display show clear pictures or image without mosaics even when audiences see it from a small viewing angle;
2 . Rich colors: With three basic colors (red, green and blue), 256-level gradation of each color, and form 16777216 kinds of colors;
3 . Adjustable brightness: Viview LED screen brightness can be adjusted automatic and manual according to environment light;
4 . Good color blending: Display clear, exquisite, nature color video even at close distance;
5 . Wide range of display content: Viview led wall can easily to display txt documents, doc documents, pictures and video
6 . Led display usage range: Governmental plazas, Large-scale entertainment plazas, business and commercial centers, playground, station, airport and so on
Methods for Quality Assurance
a. Aging
1) 100% fully test
2) Condition: 72 hours with 256 grey level
b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range
♦ Production process
1) Incoming Inspection→2)SMD→3)Plug-in
→4) Wave Soldering→5)After Welding→6)Testing
→7) Semi Finished Aging→8)Module Assembly
→9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
Our team will be forever here to offer you full supports !!!
