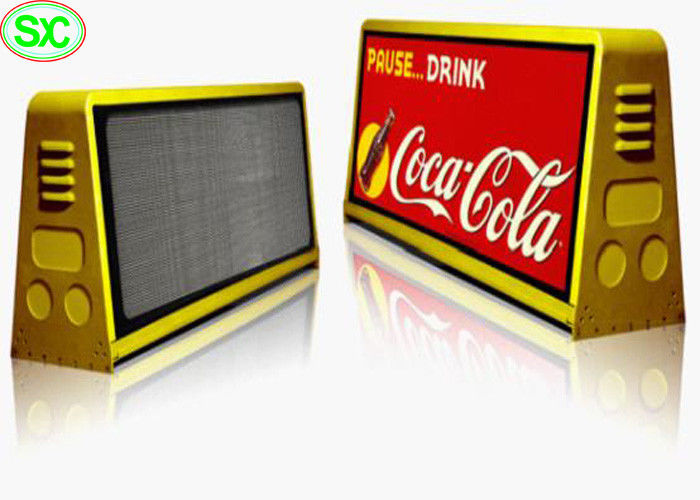

Video P4 Car LED Top Video Sign Display Taxi Roof LED Sign 3G WIFI

Video P4 Car LED Top Video Sign Display Taxi Roof LED Sign 3G WIFI

  • Video P4 Car LED Top Video Sign Display Taxi Roof LED Sign 3G WIFI
  • Video P4 Car LED Top Video Sign Display Taxi Roof LED Sign 3G WIFI
  • Video P4 Car LED Top Video Sign Display Taxi Roof LED Sign 3G WIFI
Video P4 Car LED Top Video Sign Display Taxi Roof LED Sign 3G WIFI
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: SMD P4
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Product Name: Video P4 Car LED Top Video Sign Display Taxi Roof LED Sign 3G WIFI Warranty: 5 Years
Input Valtage: 12V Power Supply: Meanwell
Contrast: ≥3000:1 Waterproof: IP65
High Light:

car led message display

,

car led display board

Video P4 Car LED Top Video Sign Display Taxi Roof LED Sign 3G WIFI

♦ Multiple Control Mode


Our taxi top panel supports multiple control mode including 3G / Wifi / Wlan / USB control.
GPS fuction is optional. we will choose control card based on your requriement ( need GPS or Not) .

♦ Special design - USB port at bottom

USB PORT at panel bottom location : you just need to upload the advertising video to USB disk , then insert the USB disk to the port, our panel will download the advertising automatically at short time. After the download procedure you can remove the USB disk. So easy for operation.


♦ Product specification


Lamp sizeSMD
Resolution/mm4
Pixel configurationRGB  3 in 1
Pixel density/pixels/m²62500/m²
Module resolution64x32
Module size/mm256*128MM
View distance≥3m
Single point brightness adjustCan be added
Single point color adjustCan be added
White balance brightness>8000cd/㎡
Color temperature6500K-9500K
Horizontal view angle120(degrees)
Vertical view angle60(degrees)
Signal Process bit10 or 14 bit
Grey process1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distancesInternet cable:100m, multimembrane:500m, monofilm:5km
Driving modeConstant driving current
Warranty5 years
Frame rate60Hz
Refresh frequency>4200Hz
Control modeComputer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss

Out of control point<1/10000
Working hours≥72hours
Mean Time Between Failure>5000hours
Life time100000hours
Life-all-white(brightness halving)50000hours
Environment temperature rangeOperating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡<950W
Average power:/㎡<350W
Self-check technology

LED spot self-check, communications check, power check,
temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,
send out warning signs to the operators.(need customization)

Software environmentWindowsNT,Windows1999,WindowsXP
Luminous point width between centresDeviation<3%
Brightness uniformity<10%
Color uniformity(chromaticity coordinate)±0.003
Power supply requestAC85-264V(50Hz-60Hz)
Contrast(1000:1)
System protectionMoistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working)working:10-95%
Humidity(storing)storing:10-95%


Video P4 Car LED Top Video Sign Display Taxi Roof LED Sign 3G WIFI 0
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.

Seamless Splice
The P5 LED Display can be installed within minutes. You may configure the Small Pixel LED Display as per your requirements and choice. Adjust the brightness, gray scale and picture quality as per your choice. Advanced adjustment options allow you to set up the display as per the environment conditions and area of installation.

Perfect Brightness and Chromaticity Calibration
Perfect calibration between brightness and chromaticity delivers best picture quality at every place. The brightness difference is set to less than 2%, and chromaticity difference is less than 0.005. You may also adjust the brightness and chromaticity as per your choice.

Get Every Detail in Picture
We spend some time with every detail of the product, so that you can enjoy every detail of your marketing pictures. The pixel-perfect pictures are a treat to watch. It means, you will not miss any detail in the picture, video or text displayed on the screen.
