Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.

|
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | SMD P4 |
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after receive your payment |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000sqm per month |
| Product Name: | Video P4 Car LED Top Video Sign Display Taxi Roof LED Sign 3G WIFI | Warranty: | 5 Years |
|---|---|---|---|
| Input Valtage: | 12V | Power Supply: | Meanwell |
| Contrast: | ≥3000:1 | Waterproof: | IP65 |
| Highlight: | car led message display,car led display board |
||

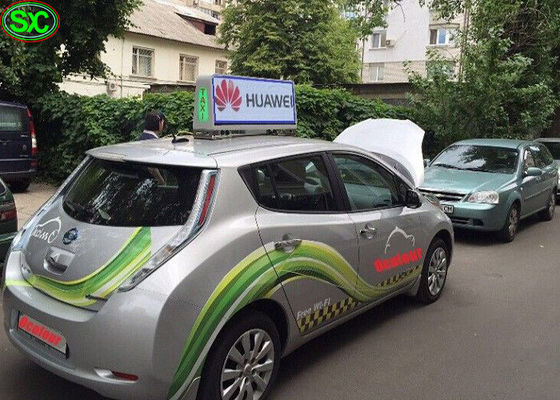

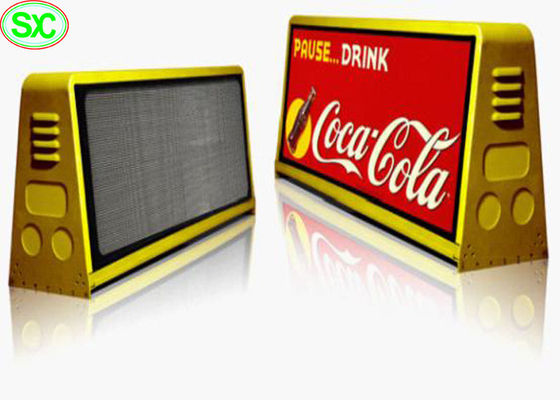

Video P4 Car LED Top Video Sign Display Taxi Roof LED Sign 3G WIFI
♦ Multiple Control Mode
Our taxi top panel supports multiple control mode including 3G / Wifi / Wlan / USB control.
GPS fuction is optional. we will choose control card based on your requriement ( need GPS or Not) .
USB PORT at panel bottom location : you just need to upload the advertising video to USB disk , then insert the USB disk to the port, our panel will download the advertising automatically at short time. After the download procedure you can remove the USB disk. So easy for operation.
♦ Product specification
| Lamp size | SMD | |||||||||||||
| Resolution/mm | 4 | |||||||||||||
| Pixel configuration | RGB 3 in 1 | |||||||||||||
| Pixel density/pixels/m² | 62500/m² | |||||||||||||
| Module resolution | 64x32 | |||||||||||||
| Module size/mm | 256*128MM | |||||||||||||
| View distance | ≥3m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >8000cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 60(degrees) | |||||||||||||
| Signal Process bit | 10 or 14 bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Warranty | 5 years | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >4200Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ | |||||||||||||
| Maximum power:/㎡ | <950W | |||||||||||||
| Average power:/㎡ | <350W | |||||||||||||
| Self-check technology |
LED spot self-check, communications check, power check, |
|||||||||||||
| Remote monitoring |
Remote supervision and control, record potential fault, |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦Seamless Splice
The P5 LED Display can be installed within minutes. You may configure the Small Pixel LED Display as per your requirements and choice. Adjust the brightness, gray scale and picture quality as per your choice. Advanced adjustment options allow you to set up the display as per the environment conditions and area of installation.
♦ Perfect Brightness and Chromaticity Calibration
Perfect calibration between brightness and chromaticity delivers best picture quality at every place. The brightness difference is set to less than 2%, and chromaticity difference is less than 0.005. You may also adjust the brightness and chromaticity as per your choice.
♦ Get Every Detail in Picture
We spend some time with every detail of the product, so that you can enjoy every detail of your marketing pictures. The pixel-perfect pictures are a treat to watch. It means, you will not miss any detail in the picture, video or text displayed on the screen.
