|Place of Origin:||China|
|Model Number:||SMD P6|
|Minimum Order Quantity:||negotiation|
|Packaging Details:||flight case, wooden case, carton, it is up to you.|
|Delivery Time:||7-10 working days after receive your payment|
|Payment Terms:||T/T, Western Union, MoneyGram|
|Supply Ability:||5000sqm per month|
|Product Name:||P6 Outdoor Hanging Slim Flexible Soccer LED Display With Waterproof||Pixel:||6mm|
|Screen Dimension::||Customized Size||Waterproof:||IP65|
led moving sign,
full color led screen

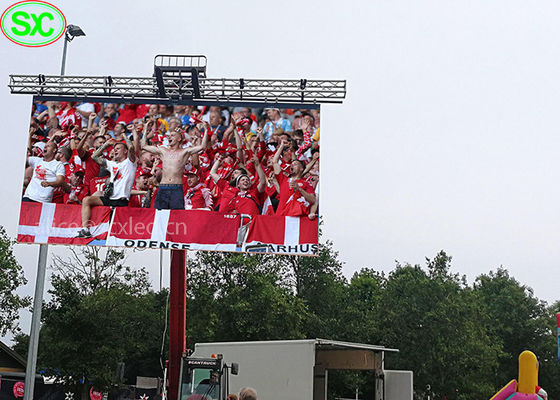

P6 Outdoor Hanging Slim Flexible Soccer LED display with Waterproof
Die-casting aluminum panel, to achieve high precision process to seamless and good thermal dissipation; to support the entire screen of any size to a truly seamless splicing.
Nice appearance and simple structures.
Jointed correctly, being installed & dismounted by one person.
Slim and Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.
indoor SMD P8
|Pixel configuration||RGB 3 in 1|
|Single point brightness adjust||Can be added|
|Single point color adjust||Can be added|
|White balance brightness||>7000cd/㎡|
|Horizontal view angle||120(degrees)|
|Vertical view angle||60(degrees)|
|Signal Process bit||10 or 14 bit|
|Grey process||1024x1024x1024 16834x16834x16834 65536x65536x65536|
|Control distances||Internet cable:100m, multimembrane:500m, monofilm:5km|
|Driving mode||Constant driving current|
|Control mode||Computer synchronous|
|Brightness adjusted range||
Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss
|Out of control point||<1/10000|
|Mean Time Between Failure||>5000hours|
|Environment temperature range||Operating temperature range: -20-45℃ Storing temperature range: -30-65℃|
LED spot self-check, communications check, power check,
temperature monitor(need customization)
Remote supervision and control, record potential fault,
send out warning signs to the operators.(need customization)
|Luminous point width between centres||Deviation<3%|
|Color uniformity(chromaticity coordinate)||±0.003|
|Power supply request||AC85-264V(50Hz-60Hz)|
|System protection||Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration|
|Items||Indoor Led display:
P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10
Outdoor Led display:
P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25
|Material||steel,aluminum ,die casting aluminum|
|30% deposit before production, 70% balance before shipping|
|Packing:||Standard Export Carton with fully Polyfoam or Pearl Wool|
|Anti-shaking wooden case|
|Shipping:||5 to 7 working days upon receiving deposit payment|
|After-Sales-Service:||Lifetime with professional engineer support for free.|
|Within 5 year, supply spare parts for free if has quality problem
( not by man-made damage)
|Using Range||Shopping mall,bank,bus station, train station,
center of downtown, airport, school, factory, bus, taxi,and so on.
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
Why choose us:
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
After-sales:We will track the products usage and then constantly perfect our products.
Our team will be forever here to offer you full supports !!!
