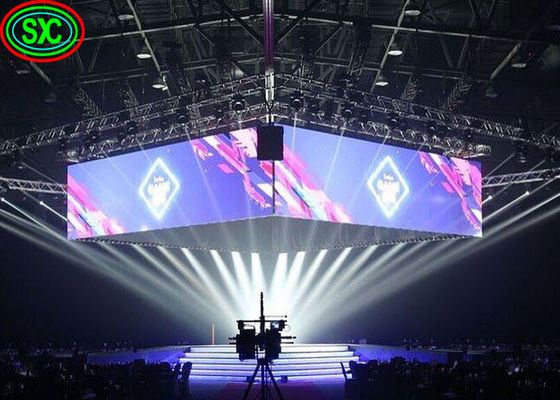

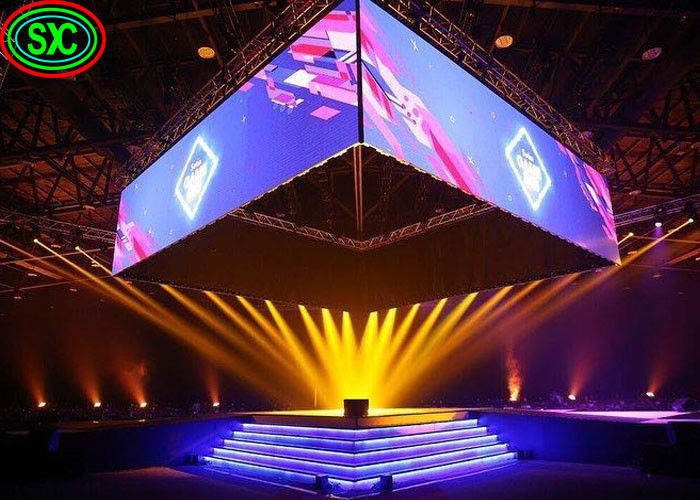

Creative Hanging LED Video Wall Display P3 P4 P5 P6 Indoor LED Billboard Advertising Display Screen Pantallas Led

Creative Hanging LED Video Wall Display P3 P4 P5 P6 Indoor LED Billboard Advertising Display Screen Pantallas Led

  • Creative Hanging LED Video Wall Display P3 P4 P5 P6  Indoor LED Billboard Advertising Display Screen Pantallas Led
  • Creative Hanging LED Video Wall Display P3 P4 P5 P6  Indoor LED Billboard Advertising Display Screen Pantallas Led
Creative Hanging LED Video Wall Display P3 P4 P5 P6  Indoor LED Billboard Advertising Display Screen Pantallas Led
Product Details:
Place of Origin: China
Brand Name: SCX
Certification: CE,ROHS,FCC,SASO
Model Number: P4
Payment & Shipping Terms:
Minimum Order Quantity: 1 SQM
Price: USD 1000-10000
Packaging Details: Wooden Case , Size: 60x62x50cm, Wooden Case, Size:70x65x55cm
Delivery Time: 10-15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 sqm per month
Contact Now
Detailed Product Description
Led Module: 256*128mm Luminous Intensity: R:620-630, G:520-535, B:465-475
Wavelength: R:400-500mcd, G:1800-2200mcd, B:350-450mcd Test Condition: R:25℃,20mA, G:25℃,20mA, B:25℃,20mA
Led Lamp: Kinglight
High Light:

led information display

,

full color led screen

Creative Hanging LED Video Wall Display P3 P4 P5 P6 Indoor LED Billboard Advertising Display Screen Pantallas Led






Production Features



1. Full color by filling the whole of imported silica gel, which makes our products in water, antifreeze, superior high-temperature side.

2. After a dustproof and waterproof tested to reach its target IP54. Cabinet size is 500m x 500mm die casting rental led display, Brightness of Die Casting Aluminium Cabinet P1.8 P1.9 P2 P3 P3.91 P4.81 HD Indoor LED Screen is more than 1300 nits.

3. All modules are cross color enhancing, and the edge compression is strong, not deformation, the flatness of display cabinet will be better. Die Casting Aluminium Cabinet P1.8 P1.9 P2 P3 P3.91 P4.81 HD Indoor LED Screen is commonly used for wedding and conference, easy to install.

4. The box with a sliding iron top, bottom chute, and optional locking device to fine-tune the gap and ensure seamless between the boxes. Please do not squeeze the entire screen which ensure good surface smoothness.

5. Measured by the Shenzhen Institute of Quality Inspection Bureau U.S. core companies of the outdoor full color display for temperature impact test, the results showed that: outdoor full color display can use the power normally under the temperature at -25 °C to +75 °C

6. Die Casting Aluminium Cabinet P1.8 P1.9 P2 P3 P3.91 P4.81 HD Indoor LED Screen is widely used in advertising, sports, industrial enterprises, transportation, stations, terminals, airports, construction, education system and other public places.



Product Details
Creative Hanging LED Video Wall Display P3 P4 P5 P6  Indoor LED Billboard Advertising Display Screen Pantallas Led 0





Product Parameters



Module Parameter
Pixel Pitch 4mm
Pixel Configuration SMD2121
Density  62500pixels/sqm
Module Resolution 64pixel(L) * 32pixel(H)
Module Dimension 256mm(L) * 128mm(H) * 25mm(D)
Driving Mode Constant current, 1/2 duty
Module Mask Pure black mask---high contrast screen
LED Cabinet
Module Quantity in a Cabinet 4(L) * 8(H)
Cabinet Dimension 1024(L)* 1024(H)* 150(D)mm
Cabinet Resolution 256(L) * 256(H)
Cabinet Material Steel
Cabinet Weight ≈30KG
Electricity Parameter
Optical Ratings
Brightness ≥1,200 cd/sqm
Viewing Angle 120°(Horizontal); 120°(Vertical)
Best Viewing Distance ≥6m
Gray Grade 14 bits
Display Color 4.4 trillion Colors
Brightness Adjustment 100 grades by software or automatically by sensor
Operation Power AC100-240V 50-60Hz Switchable
Max. Power Consumption  800W/sqm
Avg. Power Consumption 200 W/sqm
Control System
Frame Frequency ≥60Hz
Refresh Frequency ≥1,920Hz
Input Signal Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance

100m(Ethernet cable);

20KM(optical fiber cable)

Support VGA Mode 800*600, 1024*768, 1280*1024, 1600*1200
Color Temperature 5000—9300 adjustable
Brightness Correction Pixel by pixel, module by module, cabinet by cabinet
Reliability
Working Temperature -20~+60 ºC
Storage Temperature -30~+70 ºC
Working Humidity 10%~90% RH
Lifetime 100,000 hours
MTBF 5000 hours
Continuous Working Time ≥72 hours
Protection Grade IP34
Out-of-Control Pixel Rate ≤0.01%








Product Advantage



Creative Hanging LED Video Wall Display P3 P4 P5 P6  Indoor LED Billboard Advertising Display Screen Pantallas Led 1









Pacakge



Creative Hanging LED Video Wall Display P3 P4 P5 P6  Indoor LED Billboard Advertising Display Screen Pantallas Led 2





Our Service



Pre-sale service


1. Reply enquiries in 24 hours.


2. Market research and forecast for customer.


3. Provide professional solutions based on customer's requirement.


4. Offer sample and all document as customers required.


5. Other services, such as factory visiting and so on.

In-sale service


1. Tracking report of production.


2. Quality test report for every order.


3. Photos and videos as per customer's requirement.


After-sale service


1. Lifetime maintenance and software upgrade.


2. Complaint respond period not exceed 24 hours, maintenance guidance and problem solution supplied in 48 hours.


3. Free technician training.


4. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.


5. Engineer guide installation onsite if needed.
