Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/SGS |
| Model Number: | P4 |
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in wooden case and flight case for outer packing |
| Delivery Time: | 10 working days after received your payment |
| Payment Terms: | T/T or western Union |
| Supply Ability: | 5,000/ Sq m per month |
| Product Name: | Indoor Led Display | Module Size(W * H): | 256mm*128mm |
|---|---|---|---|
| Standard: | CE/ROHS/FCC/ISO2001 | Tube Chip Color: | Full Color |
| Pixel Pitch: | 4mm | Module Qty: | 1pcs |
| Type: | Free Standing | Resolution: | High Brightness Epistar Chip |
| High Light: | led information display,full color led screen |
||
indoor p4 full color hanging led display , 1/8 scanning with die casting aluminium
Shenzhen SCXK Electronic Co., Ltd is a professional manufacturer of all kind of Led displays with 12 years experience and about 100 employees. our led display enjoy good reputation .
Feature
1, Good quality raw material, accurate technique and careful inspection insures the high quality of led
display.
2, Using virtual pixels, better viewing effect for both text & graphic and video.
3, Adopt high refresh rate driving IC to create High color uniformity and clear image
4, High brightness and adjustable according to the application environment.
Product description
| outdoor p4 full color hanging led display , 1/8 scanning with die casting aluminium | |||||||||
| LED Lamps | Type | SMD2525(High Brightness LEDs) | |||||||
| LED Standard | Real Pixel(1R1G1B) | ||||||||
| Red Wavelength | 625-630nm | ||||||||
| Green Wavelength | 515-530nm | ||||||||
| Blue Wavelength | 465-475nm | ||||||||
| LED Module | Pixel Pitch | 4mm | |||||||
| Module Size | 256mm x128mm | ||||||||
| Module Resolution | 64dots*32dots | ||||||||
| LED Cabinet | Cabinet Size | 768mmX512mm | |||||||
| Cabinet Resolution | 192pixels *128pixels | ||||||||
| Cabinets Material | die casting aluminium | ||||||||
| LED Display | Pixel Density | 62500pixels/sq.m | |||||||
| Drive IC | MBI5024 | ||||||||
| Power Supply | Series connection | ||||||||
| Brightness | >5000cd/sqm | ||||||||
| Display Color | 16.7million | ||||||||
| Viewing Angle | 110°(Horizontal),50°(Vertical) | ||||||||
| Best Viewing Distance | 1m~150m | ||||||||
| Max Power Consumption | 1000w/sq.m | ||||||||
| Average Power Consumption | 600 w/sq.m | ||||||||
| Refresh Rate | 3000hz | ||||||||
| Input Voltage | AC220V/50H or AC110V/60H | ||||||||
| Output Voltage | DC5V,40A | ||||||||
| Grey Scale Levels | 1024 | ||||||||
| Display Colors | R(1024) x G(1024) x B(1024) | ||||||||
| MTBF | 10,000 hours | ||||||||
| Life-span | 100,000 hours | ||||||||
| Protection Level | IP64 | ||||||||
| Failure percentage of leds | less than 0.0003 | ||||||||
| Working Temperature | -25℃~65℃ | ||||||||
| Drive Mode | 1/8 scan constant current | ||||||||
| Working Humidity | 10%~99% | ||||||||
| Control method | Synchronization & Asynchronization | ||||||||
| Control System | Control System | Linsn/Nova/Colorlight | |||||||
| Software | LED Studio | ||||||||
| Input Signal | MPG/MPEG/MPV/MPA/AVI/VCD/SWF/RM/RA/RM/ASF/BMP/GIF/PCX/TXT/DOC.etc | ||||||||
| PC Operating system |
Microsoft Windows 7, 98, 2000, XP and Vista |
||||||||
Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.

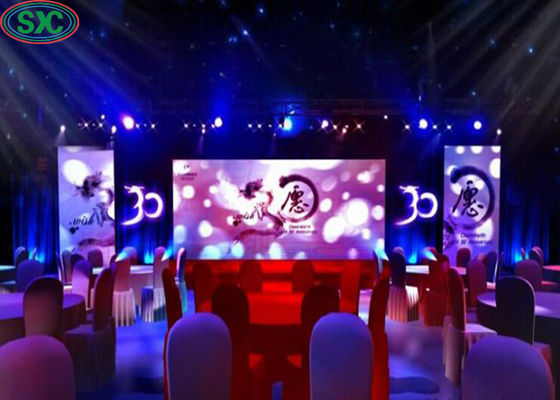

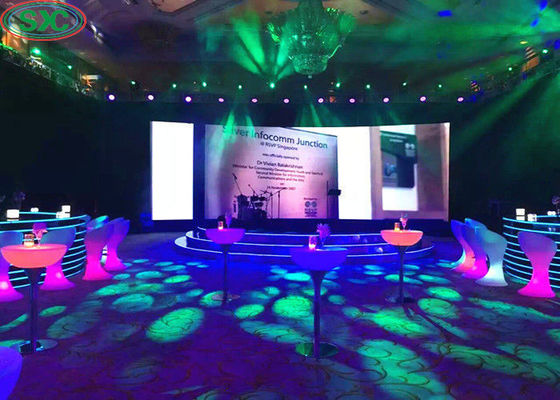

our products are widely used
Pakage payment & delivery
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
