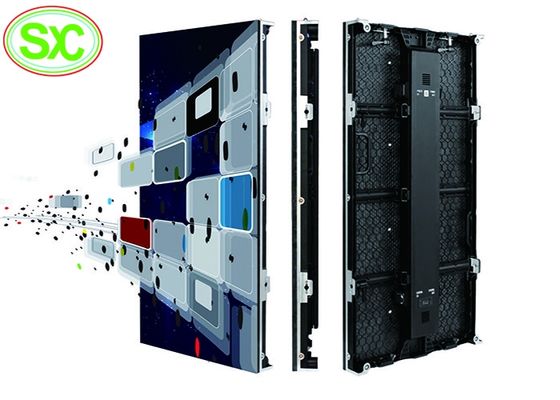

P4.81 P3.91 Portable Rental Outdoor indoor led display Waterproof video wall

P4.81 P3.91 Portable Rental Outdoor indoor led display Waterproof video wall

  • P4.81 P3.91 Portable Rental Outdoor indoor led display Waterproof video wall
  • P4.81 P3.91 Portable Rental Outdoor indoor led display Waterproof video wall
P4.81 P3.91 Portable Rental Outdoor indoor led display Waterproof video wall
Product Details:
Place of Origin: China
Brand Name: SCX
Certification: CE/ROHS/FCC/ISO/UL
Model Number: SMD P4.8
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Product Name: P4.81 P3.91 Portable Rental Outdoor Indoor Led Display Waterproof Video Wall Cabinet Size: 500x1000 Mm
Cabinet Pixel: 128x128 Pixel Density: 62500 Dots/m2
Refresh Rate: 3840Hz Display Function: Video, Animation, Graphics
High Light:

led video screen rental

,

led rental screen

P4.81 P3.91 Portable Rental Outdoor indoor led display Waterproof video wall

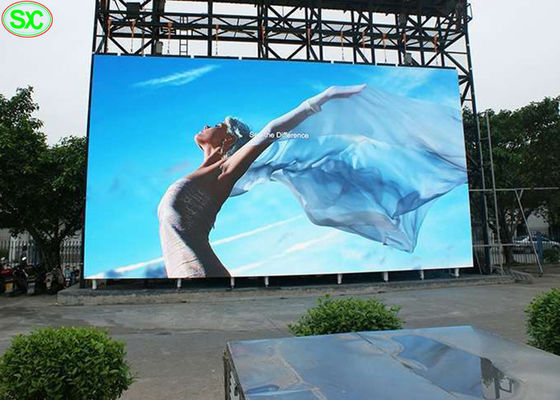

♦ Outdoor screens for rental use

mainly used for commercial promotion, exhibition, concert, wedding ceremony and other outdoor events.



♦ Hight brightness with low consumption

It can reach over 6500nits brightness with only 360w/sqm Ave power consumption, extremely low consumption and high efficient.



♦ IP65 waterproof

It is for outdoor  application  with high waterproof level and dust-proof level.  it can resist some bad weather during outdoor events



♦ Product specification

indoor  SMD P4.8
Lamp size 2121
Resolution/mm 4.8
Pixel configuration RGB  3 in 1
Pixel density/pixels/m² 43222/m²
Module resolution 64x64
Module size/mm 250x250
View distance ≥3m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >2500cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 14 bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode Constant driving current
Scanning mode 1/13
Frame rate 60Hz
Refresh frequency >3000Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡ <1100W
Average power:/㎡ <280W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%



P4.81 P3.91 Portable Rental Outdoor indoor led display Waterproof video wall 0


 About us:

Established in 2005, clients cover more than 50 cuntries, Mainly USA, Europe, dubai, north and mid america, south america, asia. As a high-tech enterprise integrated with scientific research, design, production, maintenance, sales and system integration, we have a professional high-quality technical R & D team,rich experienced engineers and professional product development and design engineers,excellent marketing team, pre and after-sales 24 hours service. Even face with harshest environment,we can carefully choose different suitable materials and make the best offer.



Small Pixel LED Screen for Clearer Pictures



The Small Pixel LED Display features small pixel modules which presents clearer and vivid images even in low brightness and dark days. The display is suitable for various applications including security monitoring center, scheduling command platform, smart city, television studio and high-end meetings.



Production process:

1) Incoming Inspection→2) SMD→3) Plug-in

→4) Wave Soldering→5) After Welding→6) Testing

→7) Semi Finished Aging→8) Module Assembly

→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing



♦ Packaging and shipping

Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.
