10mm Advertising Outdoor Full Color Led Display With 16dots x 16dots

10mm Advertising Outdoor Full Color Led Display With 16dots x 16dots

  • 10mm Advertising Outdoor Full Color Led Display With 16dots x 16dots
10mm Advertising Outdoor Full Color Led Display With 16dots x 16dots
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P10
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: T/T or western Union
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Product Name: Outdoor Full Color Led Display Module Size(W * H): 160mm*160mm
Standard: CE/ROHS/FCC/ISO2001 Tube Chip Color: Full Color
Pixel Pitch: 10mm Module Qty: 1pcs
View Angle: Horizontal 110°, Vertical 50° Resolution(W*H): 16dots*16dots
High Light:

advertising led display board

,

outdoor advertising led display





Our outdoor full color led display enjoy high definition and brightness. With epistar chip and high quality material, the quality can meet all your requirements.

Advantage1.Firm and high safety ratio of Ox horn socket,convenient to take or carry. 2.Large PCB board emerges heavy current,wide circuit and high brightness and avoids Mosaic phenomenon so that can make sure display work smoothly.

  1. PC material that we use has function of retardant fire,avoids using bad quality of expand with heat and contract with cold plastic,and PC material has the firm original pure black,prevents fading from wind,sun and rain 4.Large module leads less space and better evenness makes display good image. 5.A class of lamp bead has better gloss and high pure degree makes out high clear image 6.Stainless steel of screw makes IC and current operate
     7.Heat resistance 90째IC not easy to be harmed makes display longer lifetime.
  1. Platoon fan makes normal air convection,easy to work,save too much power cost for customer and extends screen lifetime,but if air conditioner,it will make too low temperature,and as random two cabinet can not combine together with no any space,so the cold air can flow out from the cabinet,at this time air conditioner will be no meaningful,also temperature of high sometimes or low sometimes makes bad effect on IC.9.220V Langyu lightning rod installing(outdoor),the height from lightning rod to the top of display is more than 2.5m,prevents lightning sudden attacking makes display can not work smoothly.And under grounding construction:the lowest layer is putting copper rod about height 2m to 4m in the deepest,then charcoal 50mm to 100mm in the countdown second layer,and then salt in the countdown third layer to keep ground wet.

1,  Item Name

  technology parameter

2,  pixel tube:

   pixel pitch:10mm;  primary colors: pure red+ pure green +pure blue;

   color composing:1R1G1B;

   density:10000dots/sq m; DIP346

3 , unit box

  module size:160mm×160mm;  Module resolution:16x16

  cabinet thickness:(cold-roll steel sheet)150mm+(maintain)600mm;

4, whole screen:

the optimum viewing angel :horizontal 110°, vertical 50°

viewing distance:10-300m;working temperature:-20°C~+45°C(-30°C ~+50°C  optional)    relative humidity:≤95%RH;   Drive IC ET6024



5, operating voltage

AC220V±10% or 110V±10% ,average consumption:500 W/sq m

  max consumption:≤650 W/ sq m

6, main parameter

  1. driving mode:1/4 scan constant current driving 1/4

2)refreshing rate:≥400Hz/s

3)frame frequency:≥60Hz/s

4)gray scale/color:≥16.7Mcolors(Synchronized)

5)manage gray:≥72bit

6)brightness:≥7000cd/sq m

7)color temperature condition:3500K~9500K,be adjustable

8)adjusting style of brightness: hand movement/auto

9)video signal: RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION etc. managing ability of signal:≥12bit.against Y revised curve: owns 3pcs above Y curve that can adjustable.

10)average  trouble-free time:≥5000hours

11)evenness: between random adjacent pixel ≤0.5mm,module splicing space<1mm

12)switch power loading:5V/40A

13)display mode of computer:1024×768

14)Protect level:IP68





 1. RoHS and CE,UL,FCC,ISO
2. Waterproof.dust-proof
3. High brightness.
4. Competitive price,high quality,nice service



1. Applications:

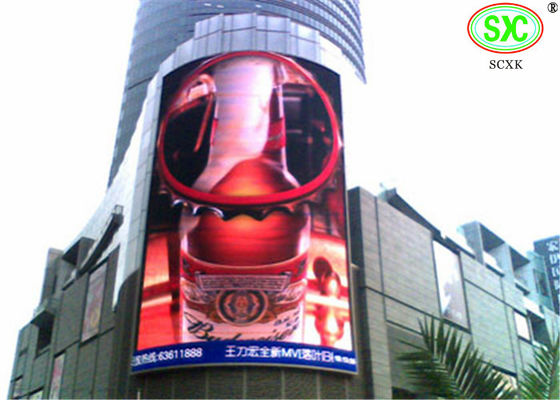

outdoor  full color digital billboard are very popular in LED display advertising field. This type digital billboards are widely used  Outdoor plaza,Outdoor building,stadium,shopping ,mall,cross road,highway, airport etc;



 2. Features :

Vivid and exact picture, minimum noise, advanced test equipment, support any PC operation system

and play a variety of information like video, word, flash, music, clock, graph etc. LED billboard Cabinet design for easy install and dismantle

Super brightness outdoor full color LED display

In LED display outdoor series,module in each unit design is encased to maintain a highest level of water and dust proofing to IP68. The module design of the LED display (outdoor) enables you to create customized screen surfaces of virtually any size in either 4:3 or 16:9 ratios. Typically the LED display (outdoor) series are applied to large public squares. sport centers arenas,urban traffic signage,car dealerships,casino signage,expressway information delivery systems,public service announcement displays,media,commercial promotion and other large scale applications.

1, Superb  brightness  and color uniformity and reproduction.  Brightness  variances  within+/-2.5%

2, High  reliability:  data  hot  backup  aims  to  avoid  any  communication  risks  during  the  show;  support automatic fault detection

3, Refresh rate is up to 4,200Hz, completely flickering-free for live video

4, Proprietary image processing produces sharp, brilliant images unmatched by industry competition

5, 6000: 1 contrast ratio tempers screen brightness into sharp, focused images whether up close or far away

6, 8000 nits guarantees the screen stays brighter longer, providing 100,000 hours of continuous use

 Methods for Quality Assurance

a. Aging

1. 100% fully test

2. Condition: 72 hours with 256 Grey level

b. Vibration Testing

Condition: 3-5 min up and down in 5mm range

Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.





Competitive Advantage:

  1.   3 years’ warranty with free repair service
  2. 24/7 Hours online Remote Support
  3.  Solution and PCB design
  4. Free factory training
  5.  On site installation instruction and regular inspection
  6. Small order accepted.
