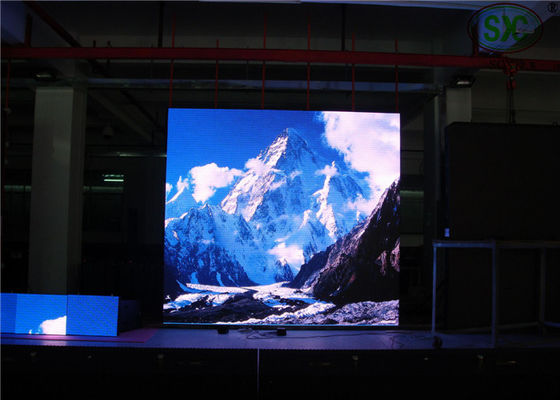

Stage full color Led Display

Stage full color Led Display

    • Stage full color Led Display
  • Stage full color Led Display

    Product Details:

    Place of Origin: China
    Brand Name: SCXK
    Certification: CE/ROHS/FCC/ISO/UL
    Model Number: P10

    Payment & Shipping Terms:

    Minimum Order Quantity: negotiation
    Price: negotiation
    Packaging Details: flight case, wooden case, carton, it is up to you.
    Delivery Time: 7-10 working days after receive your payment
    Payment Terms: T/T or western Union
    Supply Ability: 5000sqm per month
    Contact Now
    Detailed Product Description
    Product Name: The Stage Led Display Module Size(W * H): 320mm*160mm
    Standard: CE/ROHS/FCC/ISO2001 Tube Chip Color: Full Color
    Pixel Pitch: 10mm Module Qty: 1pcs
    Type: Free Standing Resolution(W*H): 32dots*16dots
    High Light:

    stage background led screen

    ,

    stage led display



    1.1.1 Specifications

    We are the professional manufacturer of outdoor and indoor led display. With more than 8 years experience, our led display enjoy good reputation . The stage indoor P10 full color led display is very high definition and brightness,its’ very attractive and hot sell.

    1, voltage:DC5V

    2, High brightness and definition

    3, easy to dismantle and assemble,more slight

    4, optimal viewing distance:6-200m

    5, Pixel composing:RGB

    6, PC Operating system:Microsoft Windows 7, 98, 2000, XP and Vista





    The detailed parameter as follows.

    1,  Item Name

      technology parameter

    2,  pixel tube:

       pixel pitch:10mm;  primary colors: pure red+ pure green +pure blue;

       color composing:3 in 1

       Density 10000dots/sq m; SMD3528

    3 , unit box

      module size:320mm×160mm;  Module resolution:32X16

      cabinet thickness:(cold-roll steel sheet)150mm+(maintain)600mm;

    4, whole screen:

    the optimum viewing angel :horizontal 110°, vertical 50°

    viewing distance:10-300m;working temperature:-20°C~+45°C(-30°C ~+50°C  optional)    relative humidity:≤95%RH;   Drive IC ET6024



    5, operating voltage

    AC220V±10% or 110V±10% ,average consumption:500 W/sq m

      max consumption:≤650 W/ sq m

    6, main parameter

    1. driving mode: 1/8 scan

    2)refreshing rate:≥400Hz/s

    3)frame frequency:≥60Hz/s

    4)gray scale/color:≥16.7Mcolors(Synchronized)

    5)manage gray:≥72bit

    6)brightness:≥2000cd/sq m

    7)color temperature condition:3500K~9500K,be adjustable

    8)adjusting style of brightness: hand movement/auto

    9)video signal: RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION etc. managing ability of signal:≥12bit.against Y revised curve: owns 3pcs above Y curve that can adjustable.

    10)average trouble-free time:≥5000hours

    11)evenness: between random adjacent pixel ≤0.5mm,module splicing space<1mm

    12)switch power loading:5V/40A

    13)display mode of computer:1024×768

















    1. Applications:

     The stage full color led display is very popular in LED display advertising field. This type                 digital billboards are widely used  ,indoor building,stadium,shopping ,airport etc;

     2. Features :

    Vivid and exact picture, minimum noise, advanced test equipment, support any PC operation system

    and play a variety of information like video, word, flash, music, clock, graph etc. LED billboard Cabinet design for easy install and dismantle

    Super brightness stage full color LED billboard advertising

    In the stage LED display indoor series, The module design of the LED display enables you to create customized screen surfaces of virtually any size in either 4:3 or 16:9 ratios. Typically the LED display series are applied to large public squares. sport centers casino signage,public service announcement displays,media,commercial promotion and other large scale applications.

    1, Superb  brightness  and color uniformity and reproduction.  Brightness  variances  within+/-2.5%

    2, High  reliability:  data  hot  backup  aims  to  avoid  any  communication  risks  during  the  show;  support automatic fault detection

    3, Proprietary image processing produces sharp, brilliant images unmatched by industry competition

     Methods for Quality Assurance

    a. Aging

    1. 100% fully test

    1. Condition: 72 hours with 256 gray level

    b. Vibration Testing

    Condition: 3-5 min up and down in 5mm range



    Factory Equipment

    Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
    Automatic Glue- pouring Machine, Solder Paste Printing Machine,
    Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
    Withstand Voltage Tester, Ground Resistance Tester,
    Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
    Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.



    Competitive Advantage:

    1.  2 years’ warranty with free repair service

    2.  24/7 Hours online Remote Support

    3.  Solution and PCB design

    4.  Free factory training

    5.  On site installation instruction and regular inspection

    6,  Small order accepted.
