SMD RGB Full Color Led Screen 160mm x 160mm With High Solution

Product Details:

Place of Origin:	shenzhen
Brand Name:	SCX
Certification:	CE/ROHS/FCC/ISO/UL
Model Number:	SCX-T10

Payment & Shipping Terms:

Minimum Order Quantity:	negotiation
Price:	negotiation
Packaging Details:	flight case, wooden case, carton, it is up to you.
Delivery Time:	7-10 working days after receive your payment
Payment Terms:	T/T or western Union
Supply Ability:	5000sqm per month

Contact Now

Detailed Product Description

Driving Mode::	Static Scan	Module Size(W * H)::	256*256mm
Frame Frequency:	:≥60Hz/s	Switch Power Loading::	5V/40A
Brightness::	≥2000cd/sq M	Resolution(W*H):	16*16

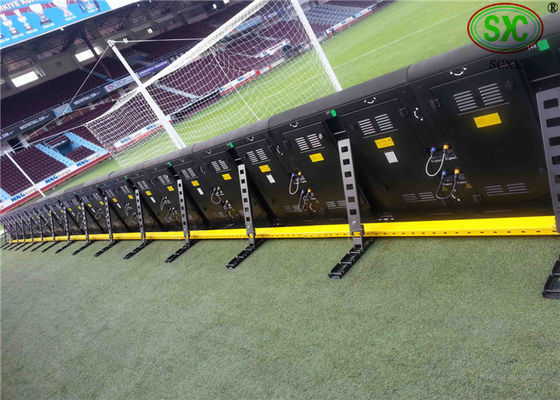

High Light:	perimeter led display , led perimeter advertising boards

SMD RGB Full Color Led Screen 160mm x 160mm With High Solution

♦ Applications:

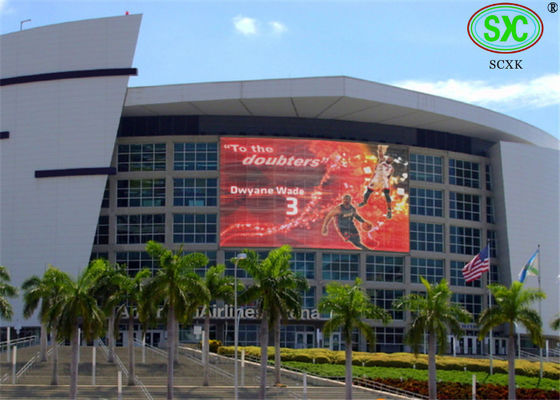

The stadium full color led display is very popular in LED display advertising field. This type digital billboards are widely used stadium.

Methods for Quality Assurance

a. Aging

1. 100% fully test

Condition: 72 hours with 256 gray level

b. Vibration Testing

Condition: 3-5 min up and down in 5mm range

♦ Features:

Vivid and exact picture, minimum noise, advanced test equipment, support any PC operation system

and play a variety of information like video, word, flash, music, clock, graph etc. LED billboard Cabinet design for easy install and dismantle

4. High brightness, this is very important for South African market, Brazil market, no matter the sunshine spot, our high brightness can work well under the big sunshine.

5. Stable performances, our JiNaite brands can gurantee you this , you have our words, the best sales services before&after sale

♦ Mobile advertising outdoor P10 full color truck led display

1, Item Name	technology parameter
2, pixel tube:	pixel pitch:16mm; primary colors: pure red+ pure green +pure blue; color composing: 1R1G1B Density 3906dots/sq m; DIP346
3 , unit box	module size:160mm×160mm; Module resolution:16X16 cabinet thickness:(cold-roll steel sheet)150mm+(maintain)600mm;
4, whole screen:	the optimum viewing angel :horizontal 110°, vertical 50° viewing distance:10-300m;working temperature:-20°C~+45°C(-30°C ~+50°C optional) relative humidity:≤95%RH; Drive IC ET6024
5, operating voltage	AC220V±10% or 110V±10% ,average consumption:500 W/sq m max consumption:≤650 W/ sq m
6, main parameter	1) driving mode: static scan 2) refreshing rate:≥400Hz/s 3) frame frequency:≥60Hz/s 4) gray scale/color:≥16.7Mcolors(Synchronized) 5) manage gray:≥72bit 6) brightness:≥2000cd/sq m 7) color temperature condition:3500K~9500K,be adjustable 8) adjusting style of brightness: hand movement/auto 9) video signal: RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION etc. managing ability of signal:≥12bit.against Y revised curve: owns 3pcs above Y curve that can adjustable. 10) average trouble-free time:≥5000hours 11) evenness: between random adjacent pixel ≤0.5mm,module splicing space<1mm 12) switch power loading:5V/40A 13) display mode of computer:1024×768

♦ Factory Equipment

1:Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
2:Automatic Glue- pouring Machine, Solder Paste Printing Machine,
3:Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
4:Withstand Voltage Tester, Ground Resistance Tester,
5:Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
6:Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.

♦ Competitive Advantage:

1. 2 years’ warranty with free repair service

2. 24/7 Hours online Remote Support

3. Solution and PCB design

4. Free factory training

5. On site installation instruction and regular inspection

6, Small order accepted.

♦ "SCXK"Service

1.Customized LED display size and structure.

2. Adopted with self developed steel structure and special kits will be kept in good flatness and smoothness.

3. According to environmental changes the brightness can be adjusted automatically for energy saving.

4. Elegant structure, highly waterproof IP65 protection rating and excellent heat dissipation.

5. Special PVC kits are adopted to protect from corrosion according to coastal weather.

6. Auto power on/off, work unattended & Electrical surge protection.

7.Excellent service including free technical support, overseas on-site service plus quick response within 24 hours after receiving your call for help.

8. " SCXK" service, free technical support when in the warranty or out of the warranty

♦Contact Info:

Ruby

Shenzhen ShiChuangXinKe Electronics Co.,Ltd
http://www.rgbleddisplays.com/
Email:ruby@scxled.cn
Tel:0086-755-36810046
Mob:0086-18123703296 (WhatsApp)
Skype:rubychen899 (Wechat)

Tag:

Contact Person: Mrs Ruby

Tel: +8613590361707

Send your inquiry directly to us
