16mm x 16mm P10 Sports Stadium LED Display Advertising Field

16mm x 16mm P10 Sports Stadium LED Display Advertising Field

    • 16mm x 16mm P10 Sports Stadium LED Display Advertising Field
    • 16mm x 16mm P10 Sports Stadium LED Display Advertising Field
    • 16mm x 16mm P10 Sports Stadium LED Display Advertising Field
  • 16mm x 16mm P10 Sports Stadium LED Display Advertising Field

    Product Details:

    Place of Origin: shenzhen
    Brand Name: SCX
    Certification: CE/ROHS/FCC/ISO/UL
    Model Number: SCX-T10

    Payment & Shipping Terms:

    Minimum Order Quantity: negotiation
    Price: negotiation
    Packaging Details: flight case, wooden case, carton, it is up to you.
    Delivery Time: 7-10 working days after receive your payment
    Payment Terms: T/T or western Union
    Supply Ability: 5000sqm per month
    Contact Now
    Detailed Product Description
    Brightness:: ≥2000cd/sq M Module Size(W * H):: 256*256mm
    Pixel Pitch: 16mm Resolution(W*H): 16*16
    Refreshing Rate:: ≥400Hz/s Relative Humidity:: ≤95%RH
    High Light:

    perimeter led screen


    led perimeter advertising boards


    16mm x 16mm P10 Sports Stadium LED Display Advertising Field



    For events :

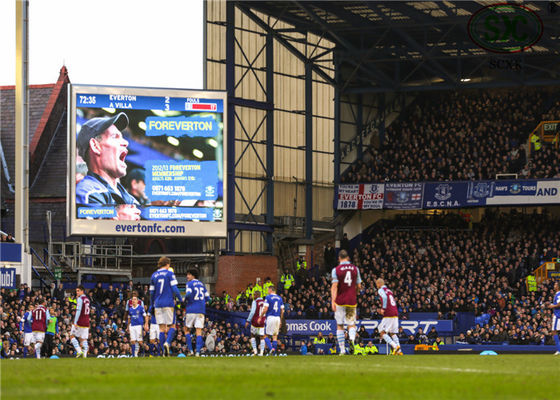

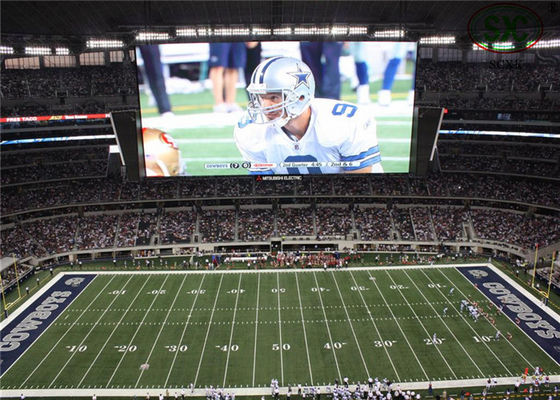

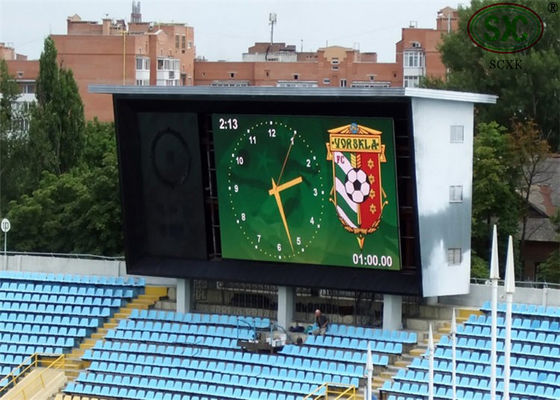

    The stadium full color led display is very popular in LED display advertising field. This type digital billboards are widely used  stadium.



    Ways for Quality Assurance


    a. Aging

    1. 100% fully test

    Condition: 72 hours with 256 gray level

    b. Vibration Testing

    Condition: 3-5 min up and down in 5mm range


    ♦ Features:

    Vivid and exact picture, minimum noise, advanced test equipment, support any PC operation system

    and play a variety of information like video, word, flash, music, clock, graph etc. LED billboard Cabinet design for easy install and dismantle


    4.High brightness, this is very important for South African market, Brazil market, no matter the sunshine spot, our high brightness can work well under the big sunshine.


    5.Stable performances, our JiNaite brands can gurantee you this , you have our words, the best sales services before&after sale




    ♦ Mobile advertising outdoor P10 full color truck led display

    1,  Item Name

      technology parameter

    2,  pixel tube:

       pixel pitch:16mm;  primary colors: pure red+ pure green +pure blue;

       color composing: 1R1G1B

       Density 3906dots/sq m;  DIP346

    3 , unit box

      module size:160mm×160mm;  Module resolution:16X16

      cabinet thickness:(cold-roll steel sheet)150mm+(maintain)600mm;

    4, whole screen:

    the optimum viewing angel :horizontal 110°, vertical 50°

    viewing distance:10-300m;working temperature:-20°C~+45°C(-30°C ~+50°C  optional)    relative humidity:≤95%RH;   Drive IC ET6024


    5, operating voltage

    AC220V±10% or 110V±10% ,average consumption:500 W/sq m

      max consumption:≤650 W/ sq m

    6, main parameter

    1) driving mode: static scan

    2) refreshing rate:≥400Hz/s

    3) frame frequency:≥60Hz/s

    4) gray scale/color:≥16.7Mcolors(Synchronized)

    5) manage gray:≥72bit

    6) brightness:≥2000cd/sq m

    7) color temperature condition:3500K~9500K,be adjustable

    8) adjusting style of brightness: hand movement/auto

    9) video signal: RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION etc. managing ability of signal:≥12bit.against Y revised curve: owns 3pcs above Y curve that can adjustable.

    10) average trouble-free time:≥5000hours

    11) evenness: between random adjacent pixel ≤0.5mm,module splicing space<1mm

    12) switch power loading:5V/40A

    13) display mode of computer:1024×768





    ♦ Competitive Advantage:

    1.  2 years’ warranty with free repair service

    2.  24/7 Hours online Remote Support

    3.  Solution and PCB design

    4.  Free factory training

    5.  On site installation instruction and regular inspection

    6,  Small order accepted.


    ♦ Factory Equipment

    1: Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
    2: Automatic Glue- pouring Machine, Solder Paste Printing Machine,
    3: Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
    4: Withstand Voltage Tester, Ground Resistance Tester,
    5: Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
    6: Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.
