P4 outdoor indoor Stage led screen for rent led backdrops for stage

P4 outdoor indoor Stage led screen for rent led backdrops for stage

    • P4 outdoor indoor Stage led screen for rent led backdrops for stage
    • P4 outdoor indoor Stage led screen for rent led backdrops for stage
    • P4 outdoor indoor Stage led screen for rent led backdrops for stage
  • P4 outdoor indoor Stage led screen for rent led backdrops for stage

    Product Details:

    Place of Origin: China
    Brand Name: SCXK
    Certification: CE/ROHS/FCC/ISO/UL
    Model Number: SMD P4

    Payment & Shipping Terms:

    Minimum Order Quantity: negotiation
    Price: negotiation
    Packaging Details: flight case, wooden case, carton, it is up to you.
    Delivery Time: 7-10 working days after receive your payment
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 5000sqm per month
    Contact Now
    Detailed Product Description

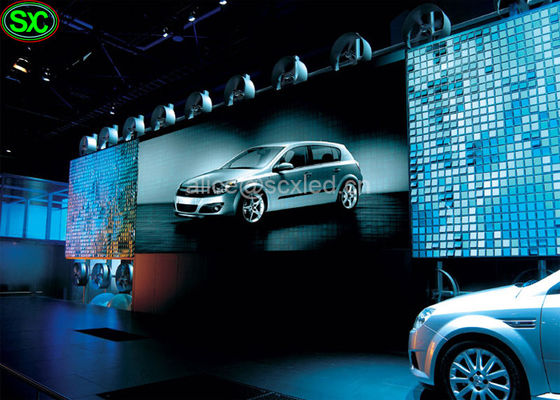

    Product Name: P4 Outdoor Indoor Stage Led Screen For Rent Led Backdrops For Stage Installation Site: Car Show
    Led Encapsulation: Nationstar Power Supply: Meanwell
    Pitch Size: 4mm Brightness Adjustment: 256 Grade Adjustable
    High Light:

    led stage display

    ,

    stage led display

    P4 outdoor indoor Stage led screen for rent led backdrops for stage

    Feature:
    1.super slim and super light
    2.high brightness
    3. seamless connection and good flatness
    4.rental or fixed installation
    5.fast installation and dismantlement
    6.high refresh rate


    ♦ Packaging detail:


    flight case or wooden case (6 or 8 pcs/flight case and 6 or 8 pcs/wooden case)

    ♦ Product specification

    indoor  SMD P4
    Lamp size2121
    Resolution/mm4
    Pixel configurationRGB  3 in 1
    Pixel density/pixels/m²62500/m²
    Module resolution64x64
    Module size/mm256*128
    View distance≥0.5m
    Single point brightness adjustCan be added
    Single point color adjustCan be added
    White balance brightness>2500cd/㎡
    Color temperature6500K-9500K
    Horizontal view angle120(degrees)
    Vertical view angle60(degrees)
    Signal Process bit10 or 14 bit
    Grey process1024x1024x1024 16834x16834x16834 65536x65536x65536
    Control distancesInternet cable:100m, multimembrane:500m, monofilm:5km
    Driving modeConstant driving current
    Scanning mode1/16
    Frame rate60Hz
    Refresh frequency>4200Hz
    Control modeComputer synchronous
    Brightness adjusted range

    Manual, automatic operation, stepless continuous adjusted
    255 steps. No grey loss

    Out of control point<1/10000
    Working hours≥72hours
    Mean Time Between Failure>5000hours
    Life time100000hours
    Life-all-white(brightness halving)50000hours
    Environment temperature rangeOperating temperature range: -20-45℃ Storing temperature range: -30-65℃
    Maximum power:/㎡<1000W
    Average power:/㎡<280W
    Self-check technology

    LED spot self-check, communications check, power check,
    temperature monitor(need customization)

    Remote monitoring

    Remote supervision and control, record potential fault,
    send out warning signs to the operators.(need customization)

    Software environmentWindowsNT,Windows1999,WindowsXP
    Luminous point width between centresDeviation<3%
    Brightness uniformity<10%
    Color uniformity(chromaticity coordinate)±0.003
    Power supply requestAC85-264V(50Hz-60Hz)
    Contrast(1000:1)
    System protectionMoistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
    Humidity(working)working:10-95%
    Humidity(storing)storing:10-95%


    ♦ Production process:
    1) Incoming Inspection→2) SMD→3) Plug-in
    →4) Wave Soldering→5) After Welding→6) Testing
    →7) Semi Finished Aging→8) Module Assembly
    →9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

    ♦ Our advantages
    Professional Manufacturer of led display
    1. OEM service,No MOQ
    2. Easy installation,regular items in Stocks
    3. Offering free design drawing as requested.
    4. Remote controlling and adjusting are available.
    5. Wooden case or flight case,you are the boss.
    6. Your reply will be replied within 24 hours.
    7. Fast delivery: Usually 6-8 working days
    8. Excellent R&D team,factory Price and assure you quality goods.

    ♦ Methods for Quality Assurance
    a. Aging
    1) 100% fully test
    2) Condition: 72 hours with 256 grey level
    b. Vibration Testing
    Condition: 3-5 mins up and down in 5mm range

    ♦ Why choose us:
    Continues Quality
    With more than 12 years experience in led display producing,equipments are updated regularly.What’s
    more,unique standardized and module production ensure our products continuous quality.

    Competitive Price
    With large scale production capacity and professional production technology,our company have built
    effective modular production.We always stick to promote the technical innovation and reduce cost to
    benefit customers.

    Fast Delivery
    Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
    inventory will be used to maintain your uninterrupted supply of the products.

    Perfect Service
    Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
    you.
    After-sales:We will track the products usage and then constantly perfect our products.
