Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | SCXK-P3 |
| Minimum Order Quantity: | 5sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after receive your payment |
| Payment Terms: | T/T, Western Union, MoneyGram, MoneyGram, D/A, L/C |
| Supply Ability: | 5000sqm per month |
| Product Name: | Stage Led Screen Series | Usage: | Outdoor |
|---|---|---|---|
| Pixels: | 3mm | Led Type: | SMD2121 |
| Tube Chip Color: | Full Color | Display Function: | Video |
| Waterproof: | IP30 | Cabinet: | Aluminum |
| High Light: | led stage display,stage background led screen |
||

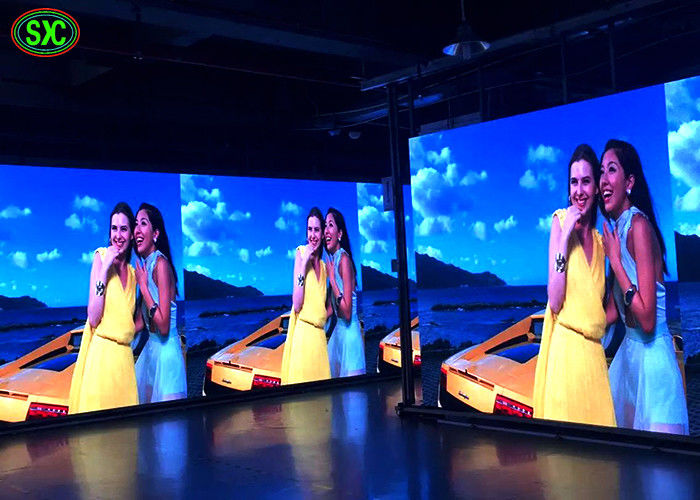

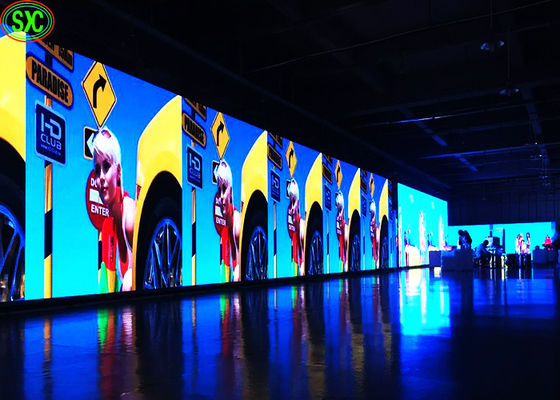

2017 high definition Fashion Show Stage Indoor Rental Slim 3mm Led Screen
Our company strictly abide by the "honesty, keep promise" of the enterprise purpose, to build the company into a cross industry step by step, cross-regional, across the international large enterprises with comprehensive operation ability.
Shenzhen Shuchuangxinke Electronic Co.,Ltd was located in Shenzhen city,Guangdong province.We are the high technology enterprise Company,and specialized in research,development,production and sales the Rental LED display screen,Fix Install LED display sreen and Poster LED etc.
|
Pixel Pitch
|
3mm
|
|
Pixel Configuration
|
1R1G1B
|
|
Drive mode
|
constant current
|
|
Module Resolution
|
64dots ×32dots
|
|
Module Pixles
|
2048dots
|
|
Scan Mode
|
1/16S
|
|
Module Size
|
192mm × 96mm
|
|
Cabinet Size
|
576mmx576mm
|
|
Cabinet resolution
|
192dots x 192dots
|
|
Screen resolution
|
111111dots/m2
|
|
Module Quantity
|
18pcs
|
|
Material
|
die-casting aluminum
|
|
Cabinet Weight
|
5.6kgs
|
|
Brightness
|
≥2500cd/㎡
|
|
Driving Method
|
1/16scan
|
|
View Angle
|
Horizontal 160° Vertical 160°
|
|
Frame rate
|
≥60 /sec
|
|
Min. Viewing Distance
|
≥4 meter
|
|
Refresh rate
|
≥1300Hz
|
|
Input Voltage
|
AC220V/60Hz
|
|
Power consumption(max/avg)
|
600/300 W/㎡
|
|
Screen weight/m2
|
20kg/㎡
|
|
MTBF
|
>10,000 hours
|
|
Life span
|
≥100,000 hours
|
|
Ingress Protective Grade
|
IP65
|
|
Temperature-operating
|
﹣10℃～45℃
|
|
Humidity-operating
|
10%～90%
|
|
Available Colour Palette
|
4.4 Trillion colors( R,G,B : 14 bit Control)
|
|
Defects Rate
|
≤0.00001
|
♦ Production process:
1) Incoming Inspection→2)SMD→3)Plug-in
→4) Wave Soldering→5)After Welding→6)Testing
→7) Semi Finished Aging→8)Module Assembly
→9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing
♦ Packaging and shipping
we can receive all kinds of transportation. and the shippment term. FOB and CIF. EXW and so on.
we can choose the best shippment which is convenient to you!
SCXK group can give you the short delivery time and With the large production ability ,
you can feel free about this . By air ,by train, by sea?
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
What about your Led Display quality ?
Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of
our products continuity.
What is your delivery time ?
Within 7-10 days according to your area and quantity.
Is your LED display competitive ?
Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure
our led display’s competitiveness.
Business Developer.
Fax:+86-0755-36810049
Contact Person: joe
Tel: +8613922107240
