Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | SCXK -P5 |
| Minimum Order Quantity: | 5sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after receive your payment |
| Payment Terms: | T/T, Western Union, MoneyGram, MoneyGram, D/A, L/C |
| Supply Ability: | 5000sqm per month |

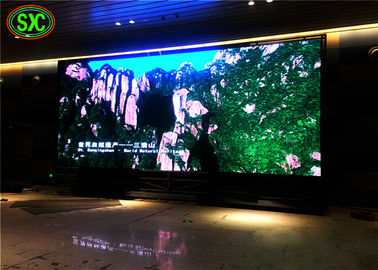

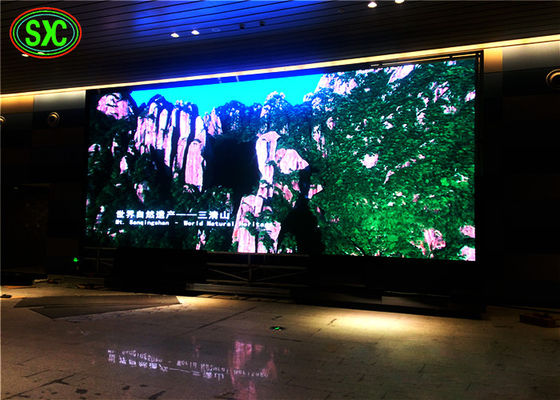

| Product Name: | Indoor P5 Led Display | Usage: | Indoor |
|---|---|---|---|
| Pixels: | 5mm | Led Type: | SMD2121 |
| Tube Chip Color: | Full Color | Display Function: | Video |
| IP: | IP43 | Cabinet: | Steel Or Aluminum For Options |
| Warranty: | 3 Years | ||
| High Light: | led full color screen,indoor led billboard |
||
Shenzhen Shichuangxinke Electronic Co. , Limited promote the environment protection and energy saving with LED technology,we adopt the LED characterized with energysaving and envronmental friendliness as basic raw material.
Now SCXK LED offer :Rental LED Screen , Fixed Installation LED ScreenTransparent LED Curtain Screen,Dance Floor/Stair LED Screen,Flexible LED Screen,Front access LED Screen.and Perimeter LED Screen.
We consider product quality as company life, we take serial reliable tests in each process from the initial production until finished product. The tests cover all important performances, including flatness, power consumption, brightness, color, shock resistance;IP rating and so on, TOPLED adopt the most strict quality control system to guarantee products with perfect quality.
| Numbers | Technical indexes | Specification |
| 1 | Pixel pitch | 5mm |
| 2 | Module size | 320mmx160mm |
| 3 | Module resolution | 64 x 32 |
| 4 | Module density | 20000dots/sqm |
| 5 | Pixel configuration | Full color |
| 6 | Red wavelength | 625±2nm |
| 7 | Green wavelength | 525±2nm |
| 8 | Blue wavelength | 470±2nm |
| 9 | Colors | 16777216 |
| 10 | Best viewing distance | more than 5m |
| 11 | Horizontal viewing angle | 120° |
| 12 | Vertical viewing angle | 90° |
| 13 | Maximum power consumption | ≤400W/2 |
| 14 | Brightness | ≥1200cd/m2 |
| 15 | Gray scale | 1024level |
| 16 | Color temperature | 6500K |
| 17 | Control method | Synchronization or Asynchronization |
| 18 | Driving method | 1/16scanning |
| 19 | Frame frequency | 480Hz |
| 20 | Refresh frequency | ≥1000 Hz |
| 21 | Working voltage | AC220V/110V±10% |
| 22 | IP grade | IP30 |
| 23 | Working temperature | -15°C~50°C |
| 24 | MTBF | More than 10,000 hours |
| 25 | life span | more than 100,000 hours |
The epistar Led chip. with SMD and DIP Technology .
we adopt the epistar led chip from Taiwan,DIP and SMD led display module will be available
The wire or wireless controll system are available .( 3g and wifi controll will be welcome)
The steer consturction is very stable for led display,and you can purchase from your local market .
The package and shippment
1) T/T, 30% deposit, 70% before shippment.
2) 100% Western Union in advance.
Methods for Quality Assurance
a. Aging
100% fully test
Condition: 72 hours with 256 gray leve
b. Vibration Testing
Condition: 3-5 min up and down in 5mm range
Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.
Competitive Advantage:
1. 2 years’ warranty with free repair service
2. 24/7 Hours online Remote Support
3. Solution and PCB design
4. Free factory training
5. On site installation instruction and regular inspection
6, Small order accepted.
Business Developer.
Contact Person: joe
Tel: +8613922107240
