Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.

|
| Place of Origin: | China ,Guang Dong |
| Brand Name: | Shichuangxinke |
| Certification: | CE RoHS FCC CCC TUV UL |
| Model Number: | SCXK-P3.91 |
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden box flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after deposit payment received |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000sqm per month |
| Resolution/mm: | 3.91 | Pixel Configuration: | 1R1G1B |
|---|---|---|---|
| Scanning Mode: | 1/8 Scanning | Module Size: | 250x250MM |
| Cabinet Size: | 500x1000MM | Certificates: | CE RoHS FCC CCC UL |
| Application: | Stadium,airport,shopping Mall,street Advertising | Material: | Aluminum |
| Warranty: | 3-5 Years | ||
| Highlight: | full color led signs outdoor,outdoor full color led screen |
||

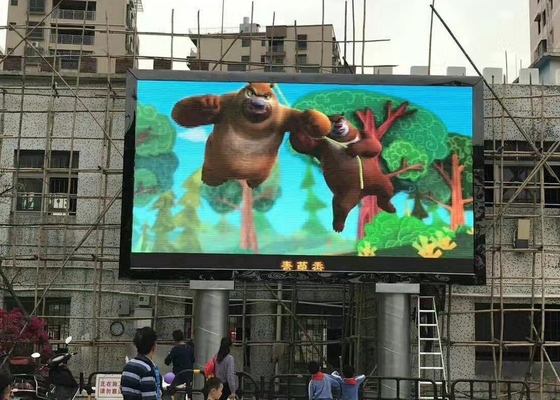

Kinglight LED display Pitch3.9mm RGB full color outdoor videowall for movie and cartoon
We are a professional LED display screen manufacturer and supplier in China. Our primary products include indoor LED display screen, outdoor LED display screen, indoor rental LED screen, stadium LED display screen, LED curtain, LED ceiling light, and LED panel light.
P4 LED Display Screen P5 LED Display Screen P6 LED Display Screen P7 LED Display Screen P8 LED Display Screen P10 LED Display Screen
Applications:
Airport Full Color Indoor LED displays advertising
Train station Indoor Full Color LED Displays
Entertainment Bar Indoor Full Color LED Screen
Stadium Indoor Full Color LED Display
Museum Full Color Indoor LED display
Car exhibition LED display
Conference room Indoor Full Color LED Video Display
Shopping Mall Indoor Full Color LED display
Specifications :
| outdoor DIP P3.91 | |||||
| Resolution/mm | 3.91 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 65410/m² | ||||
| Module resolution | 64x64 | ||||
| Module size/mm | 250x250MM | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >7500cd/㎡ | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/8 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
Other Products:
Indoor Rental LED Screen Vivid color performance. The full screen reaches high conformity on both color and brightness. High contrast ratio, high refresh rate, the image is performed well through the LED screen without any delay phenomenon.Each specified LED cabinet ...
Rental LED ScreenConventional electric screens such as CRT video walls, rear projection video walls, front projection screens, plasma display panels (PDP), etc. have limited applications due to their insufficient brightness, size limitation, and installation difficulty ...
Stadium LED Display Screen .For outdoor stadium video screen, we use visual pixel technology to realize better performance of vivid video display. For indoor sports video screen, we use SMD 3 in 1 technology, which takes wider viewing angle, higher refresh rate ...
LED Curtain.The mechanical structure design takes high efficiency on installation and dismantle required for the rental and staging applications. The most special feature of this product is the transparency, which brings spectators different visual effect by changing the brightness ...
FAQ
Q1: How to help client choose suitable display?
A1:
(1)specific application scenario
(2)viewing distance requirement
(3)display brightness requirement
(4)specific installation environment
(5)budget and cost control
Q2: What about your technical support?
A2: Proffessional engineers are on standby, can offer guidance, on site technical support as required.
Q3: What's the control system?
A3: For synchronization control: Nova, Linsn or Mooncell control system.
For asynchronous control: Onbon or Xixun control system.
Q4: What's the warranty of your LED displays?
A4: We provide 2 years warranty and conditioned lifetime technical support for our LED display products.
Q5: What's your payment method?
A5: Our payment method is T/T 30% as deposit, balancing before delivery.
