Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China ,Guang Dong |
| Brand Name: | Shichuangxinke |
| Certification: | CE RoHS FCC CCC TUV UL |
| Model Number: | SCXK-P2.5 |
| Minimum Order Quantity: | 1 square meters |
|---|---|
| Price: | USD 500-2000 per square meters |
| Packaging Details: | wooden box flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after deposit payment received |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000sqm per month |
| Resolution/mm: | 2.5 | Pixel Configuration: | 1R1G1B |
|---|---|---|---|
| Scanning Mode: | 1/16 Scanning | Module Size: | 160x160mm |
| Cabinet Size: | 480x480mm | Material: | Aluminum/iron |
| Warranty: | 3-5 Years | IC: | MB5124/MB5024 |
| Certificates: | CE RoHS FCC CCC UL | Application: | Stadium,airport,shopping Mall,street Advertising |
| Highlight: | led full color screen,indoor led billboard |
||
P2.5 indoor 1R1G1B 3 in 1 LED display ,LED screen video wall for shopping mall
Indoor Screeen Features:
1. Excellent heat dissipation performance
2. Ultra-high brightness, low attenuation, high reliability, good consistency and durability;
3. No particles, uniform color, no mosaic phenomenon;
4. Multi-layer circuit board design, uniform current distribution, low power consumption, effectively extending the service life of LED display;
Widely used in stadiums, advertising, banks, securities, stations, airports, docks, shopping malls, post offices, telecommunications, office buildings, schools, monitoring, restaurants, commerce, entertainment and other places.
Indoor Screeen Specifications:
| Indoor Screen DIP P2.5 | |||||
| Resolution/mm | 2.5 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 160000/m² | ||||
| Module resolution | 64x64 | ||||
| Module size/mm | 160x160mm | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >7500cd/㎡ | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/30 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
Indoor Screen Warranty:
All products are tested during the manufacturing process. Before shipment, our quality control department re-inspects 100% of all goods ordered. This is because we want to provide our customers with the best quality products before shipment, not repair/return warranty.
We provide 1-3 years warranty service according to different orders and free technical guidance. We have a professional service team who are always online for you. During the warranty period, all damaged parts can be replaced free of charge.
Indoor Screen Shipments:
Customers can freely choose box also the shipping way, by air, by sea or by train. We have professional freight forwarders to ensure the safe and promt shipments. Of course customers also could use your own freight forwarders, we will to fully cooperate with you.

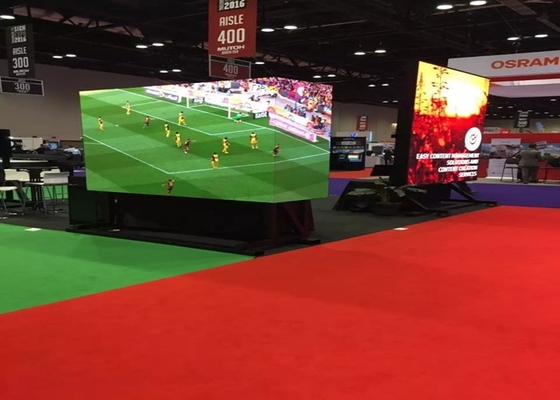

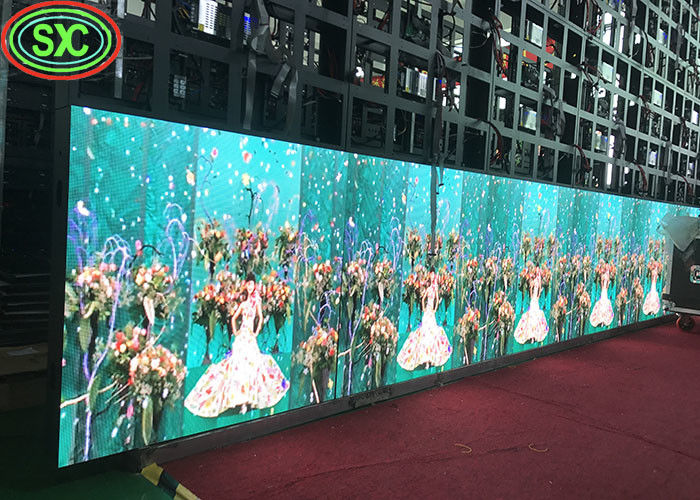

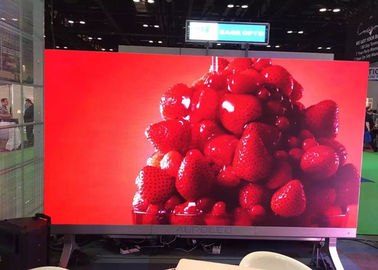

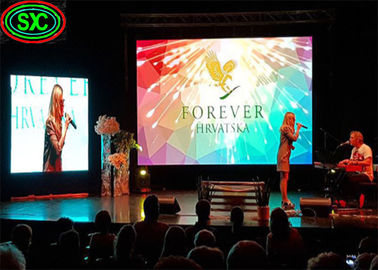

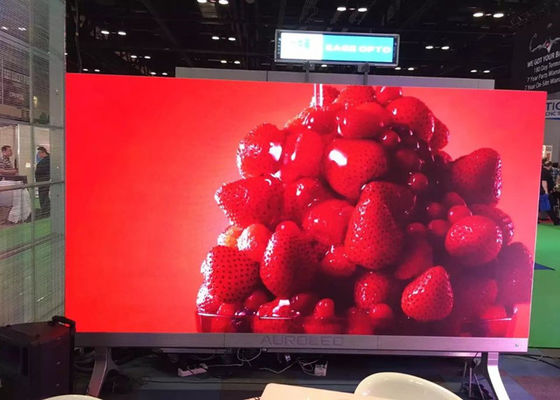

Our Projects:
Our Company:
Our Certificates:
FAQ:
|
Q1: What's the warranty of your LED Display Screen ? A1: We have a 3-year warranty for our led display screen, and 100,000 hours life span of the led lamps. |
|
Q2: What about your pre-sale service and post-sale service? A2: For pre-sale service: We have a professional sales team and 13 years technical team who are willing to answer your question 24/7. We can offer a whole complete solution for your project! |
|
Q3: Whats your payment term? How long it takes to delivery? A3: We accept T/T and L/C, For both T/T and L/C, At least 30% deposit in advance, and the rest 70% before delivery. |
|
Q4: What's the control system? A4: For synchronization control: We use Nova, Linsn Or Colorlight control system. |
|
Q5: How can you ensure the led display product quality? A5: Our led display screen quality is our core competence, for 8 years, what we rely on. |
Welcome to visit our website and inquire us more info,waiting for you all the time!!!
Contact Person: Lillian seori
Tel: +8619386814677
