Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China ,Guang Dong |
| Brand Name: | Shichuangxinke |
| Certification: | CE RoHS FCC CCC TUV UL |
| Model Number: | SCXK-P2.5 |
| Minimum Order Quantity: | 1 square meters |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden box flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after deposit payment received |
| Payment Terms: | L/C, T/T, Western Union, D/P, D/A, MoneyGram |
| Supply Ability: | 5000sqm per month |
| Resolution/mm: | 2.5 | Pixel Configuration: | 1R1G1B |
|---|---|---|---|
| Scanning Mode: | 1/16 Scanning | Module Size: | 160x160mm |
| Cabinet Size: | 480x480mm | Certificates: | CE RoHS FCC CCC UL |
| Application: | Stadium,airport,shopping Mall,street Advertising | Material: | Aluminum/iron |
| Warranty: | 3-5 Years | IC: | MB5124/MB5024 |
| Highlight: | indoor led display screen,indoor led billboard |
||

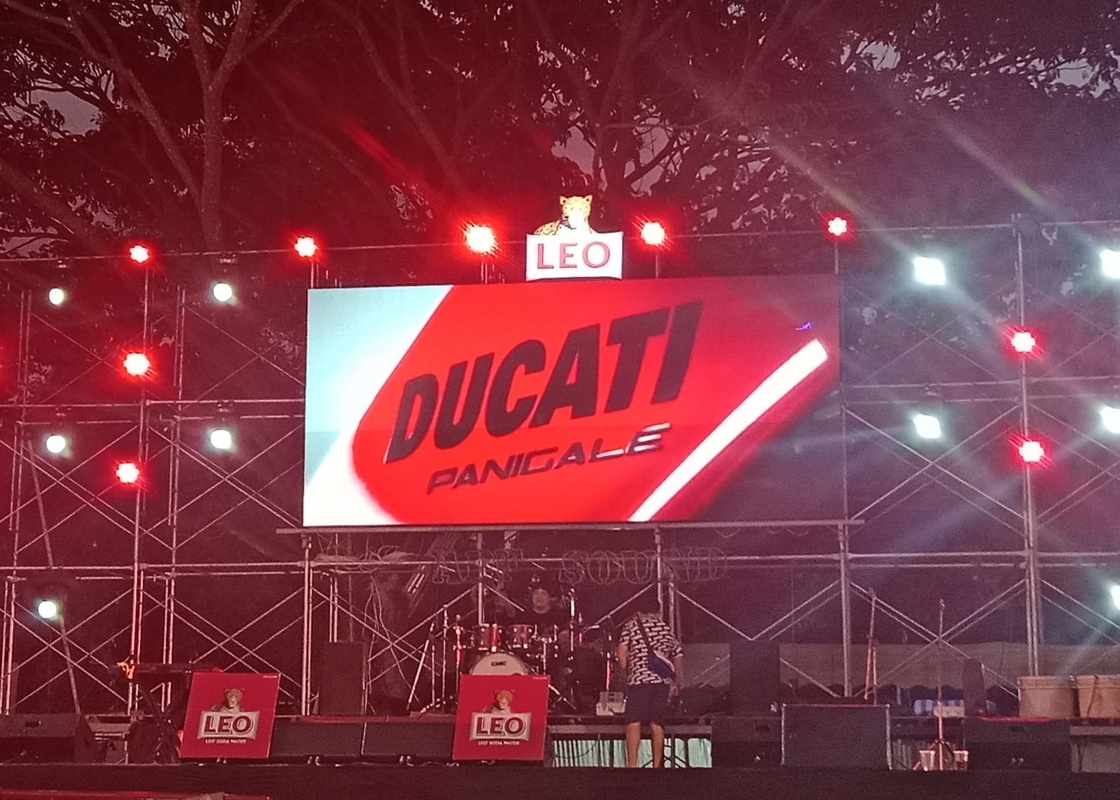

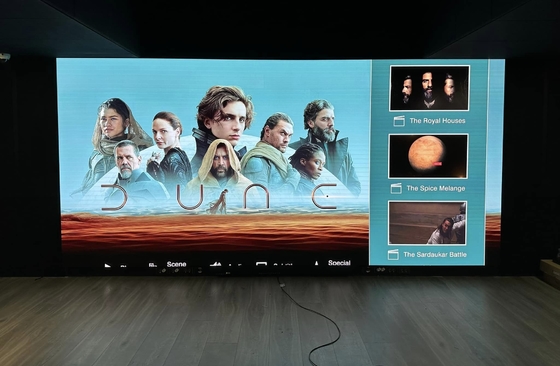

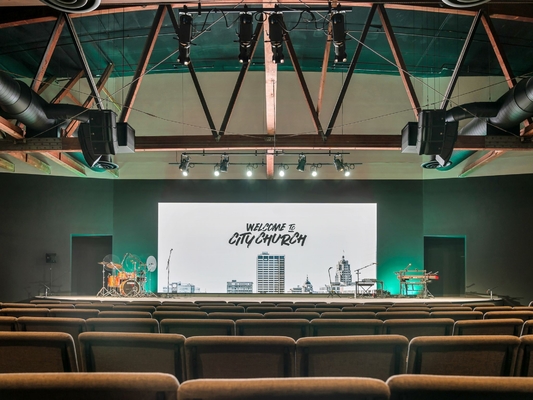

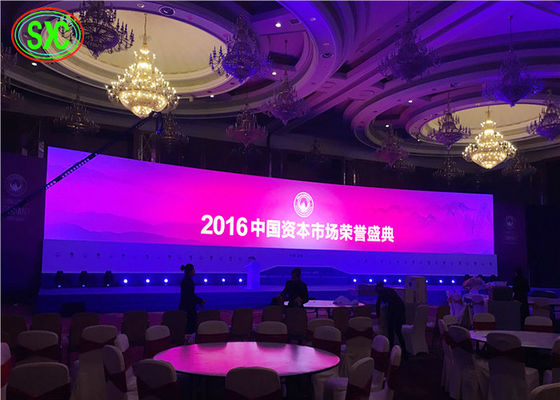

front maintenance P2.5 LED video screen for indoor stage TV show
-----SMD: p3/p4/p5/p6/p7.62/p10 indoor full color led module and led display.
-----Single Color:P10 red outdoor/P10 White outdoor/P10 Blue outdoor/P10 Green outdoor/P10 Yellow outdoor&SIMI-outdoor led module and led screen
-----Double Color:P10 double color/p16 double color/p20 double color SIMI-outdoor&outdoor led module and led screen
-----all of our led module has highly resolution, good image effect,and easy to install and convenient to carry;
----- Resonable price, good uniformity, stable capability and high brightness;
-----Aluminum alloy material both for fixed installation and hanging rental;
-----Own Unique Design LED Screen
Specifications :
| outdoor DIP P2.5 | |||||
| Resolution/mm | 2.5 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 160000/m² | ||||
| Module resolution | 64x64 | ||||
| Module size/mm | 160x160mm | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >7500cd/㎡ | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/30 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
How do you ship the goods?
As for express way, we adopt DHL mainly, we calculate as follows:
Can i print my LOGO?
Yes, and we can also provide the package with your logo for mass production
What is the guarantee
We guarantee all our items 3 years
FAQ
Q1.Can I have a sample order for the LED display?
A:Yes,we welcome sample orders to test and check quality.Both for the module or the whole screen.
Q2.What about the lead time?
A:Order less than 100 square meters lead time to take 15 working days
Q3.Do you have any MOQ limit for LED display orders?
A:Low MOQ,1 square meter or a module checking is available
Q4.How do you ship the goods and how long does it take to arrive?
A:We mostly accept EXW FOB CIF DDP and other shipping ways.It usually takes 20~30 days on the sea.a few days for customs clearance
Q5.How to proceed with an order for an LED display?
A:Firstly let us know your requirements or application.
Secondly,We quote according to your requirements or our suggestions.
Thirdly customer confirms the design document and places a deposit for the formal order.
Fourthly We arrange the production.
Q6.Is it OK to print my logo on the products?
A:Yes.Please inform us formally before our production and confirm the design firstly based on our sample.
Q7:Do you offer a guarantee for the products?
A:Yes,we offer 1-5 years warranty for our products.
