| Place of Origin: | China ,Guang Dong |
| Brand Name: | Shichuangxinke |
| Certification: | CE RoHS FCC CCC TUV UL |
| Model Number: | SCXK-P20 |
| Minimum Order Quantity: | 1 square meters |
|---|---|
| Price: | USD 400-750 square meters |
| Packaging Details: | wooden box flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after deposit payment received |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000sqm per month |
| Resolution/mm: | 20 | Pixel Configuration: | 1R1G1B |
|---|---|---|---|
| Scanning Mode: | Static Full Color | Module Size: | 320x160mm |
| Cabinet Size: | 1280x960mm | Material: | Aluminum |
| Warranty: | 3-5 Years | Certificates: | CE RoHS FCC CCC UL |
| Application: | Stadium,Airport,Shopping Mall,Street Advertising | ||
| Highlight: | full color led signs outdoor,full color outdoor led display |
||
Nova system advertising static P20 outdoor Media led screen display
Quick Detail:
1, 2500 pixels / square meters of high resolution;
2, LED chip: Epistar high brightness;
3,Brightness up to 7000cd/㎡;
4,Power supply: 4, power supply: Ming Wei, Chuangneng, Chuanglian
5,Control system: Linsn, Nova and so on.
Description:
1,High resolution P20 DIP LED display, suitable for outdoor LED screen;
2, Large viewing angle, 140 degrees both horizontally and vertically;
3, the use of electronic digital signage P20 is increasing, because the trend of LED screen is high resolution.
4,Clear and vivid advertising images and videos;
5, 1000:1 high contrast ratio, presenting real and natural LED screen colors;
6, IP65 waterproof rating, suitable for outdoor use;
Applications:

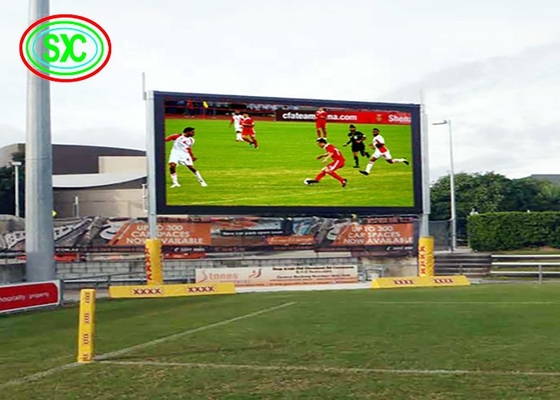

Airport Full Color Indoor LED displays
Train station Indoor Full Color LED Displays
Entertainment Bar Indoor Full Color LED Screen
Stadium Indoor Full Color LED Display
Museum Full Color Indoor LED display
Car exhibition LED display
Conference room Indoor Full Color LED Video Display
Shopping Mall Indoor Full Color LED display
Specifications :
| outdoor DIP P20 | |||||
| Resolution/mm | 20 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 2500/m² | ||||
| Module resolution | 16x8 | ||||
| Module size/mm | 320x160mm | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >7500cd/㎡ | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | static full color | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
Product advantages:
1. Price Advantage: We have the most competitive price in the market and the same or even better quality.
2. Quality Advantage: We control all the steps from material to finished product, from design to production.
3. Service Advantage: Better service under the same condition, better cooperation under the same service. 4.
4. We ensure that our products are CE certified, ROHS certified, FCC certified and ISO 9001 certified.
Other features
1. CE certification. RoHS. FCC. C-Tick authorization;
2. ISO9001: 2008 quality management system;
3. 100.000 hours service life;
4. waterproof. Dustproof;
5. AC 85V to 265V power input; 6. video. flash. animation;
6. video. flash. animation. graphics. available text. 7;
7. computerized real-time control; 8;
8. free of charge installation structure drawing; 9;
9. easy to install;
10. 2 years warranty
11.1% spare parts free of charge
12. free factory training
13. Online remote service available;
14. EXW. FOB. accept CIF;
15. welcome to visit and inspect the factory
16. provide OEM service; 17;
17. Monthly production capacity: 5000 square meters
Our Company:
Shenzhen ShiChuangXin Ke Electronic Co.,Ltd is a high-tech enterprise integrating R&D, design, production, marketing and after-sales service of LED displays.
We can offer all types of indoor and outdoor led display, and it's widely used in banking, communications offices, electric power industry, traffic, stadiums and sporting area, business plaza, entertainment for the applications of advertising, sports,event, stock/ sport news ticker, message center, price etc. The basic LED cabinet are easier for customers' installation and maintenance to meet the market requirement.
FAQ:
|
Q1: What's the warranty of your LED Display Screen ? A1: We have a 3-year warranty for our led display screen, and 100,000 hours life span of the led lamps. |
|
Q2: What about your pre-sale service and post-sale service? A2: For pre-sale service: We have a professional sales team and 13 years technical team who are willing to answer your question 24/7. We can offer a whole complete solution for your project! |
|
Q3: Whats your payment term? How long it takes to delivery? A3: We accept T/T and L/C, For both T/T and L/C, At least 30% deposit in advance, and the rest 70% before delivery. |
|
Q4: What's the control system? A4: For synchronization control: We use Nova, Linsn Or Colorlight control system. |
|
Q5: How can you ensure the led display product quality? A5: Our led display screen quality is our core competence, for 8 years, what we rely on. |
Welcome to visit our website and inquire us more info,waiting for you all the time!!!
