Die-Cast Aluminum Housing 384x192mm Aluminum Cabinet P6 LED Display Screen Suitable For Exhibitions, Airports And Bus Stations

Die-Cast Aluminum Housing 384x192mm Aluminum Cabinet P6 LED Display Screen Suitable For Exhibitions, Airports And Bus Stations

Brand Name: Shichuangxinke
Model Number: SCXK-P6
MOQ: 1 square meters
Price: USD400-1600per square meters
Payment Terms: L/C, T/T, Western Union, D/P, D/A, MoneyGram
Supply Ability: 3000sqm per month
Detail Information
Place of Origin:
China ,Guang Dong
Certification:
CE RoHS FCC CCC TUV UL
Resolution/mm:
6
Pixel Configuration:
1R1G1B
Scanning Mode:
1/8 Scanning
Module Size:
192x192
Cabinet Size:
960x768mm/576x576mm
Certificates:
CE RoHS FCC CCC UL
Application:
Stadium,airport,shopping Mall,street Advertising,stage Background
Material:
Aluminum
Warranty:
3-5 Years
Packaging Details:
wooden box flight case, wooden case, carton, it is up to you.
Highlight:

led full color screen

,

indoor led display screen

Product Description

SMD 384x192 mm aluminum cabinet P6 led display screen for exhibition,airport and bus station





Features:

1> High brightness LED lamps and good quality plastic kit
2> High contrast ratio, outstanding display effect
3> Light weight, easy to assemble and dismantle
4> Maintenance can be a single point or single lamp.
5> Good heat dissipation capability because of the unique design of vent fan
6> widely used in the indoor environment , such as hall, TV studio, hotel, theater ,meeting room, school , hospital, gymnasium, advertising, bar and restaurant etc., to display text , graphic, picture and video etc.



Our Sevrice

1. Your inquiry related to our products or price will be replied in 24hrs.

2. OEM&ODM , any your customized led display we can help you to design and put into production.

3. Distributorship are offered for your unique design and some our current models.

4. Warranty time: 2years.If there is no manmade problems,we will repair for you freely.





FAQ

Q: could you allow a trial order?

A: yes, we are alowing to a trail order.This would enable you to see the high quality of our product and give you the opportunity to test it's superiority.

Q: What's the delevery time?

A: For led moudle 1-5 days, for led display and rental led cabinet 5-12 days after receving the payment.

Q: Where is your nearest sea port?

A: Our neasert sea port is at Shenzhen ,GUangDong ,China.

Q: How to proceed an order for led display?

A: Firstly,let us know your requirements or application.
Secondly, we quote according to your requirements or our suggestion.
Thirdly,customer confirms the samples and places desposit for formal order.
Finally,we arrange the production.





Specifications :



outdoor SMD P6
Resolution/mm 6
Pixel configuration 1R1G1B
Pixel density/pixels/m² 43222/m²
Module resolution 27778
Module size/mm 192x192mm
View distance 14-300m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >7500cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 16bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode Constant driving current
Scanning mode 1/13 SCANNING
Frame rate 60Hz
Refresh frequency >3000Hz
Control mode Computer synchronous
Brightness adjusted range Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss
Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃
Self-check technology LED spot self-check, communications check, power check,
temperature monitor(need customization)
Remote monitoring Remote supervision and control, record potential fault,
send out warning signs to the operators.(need customization)
Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%

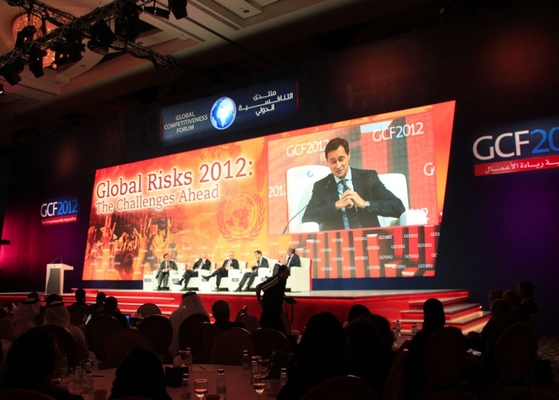

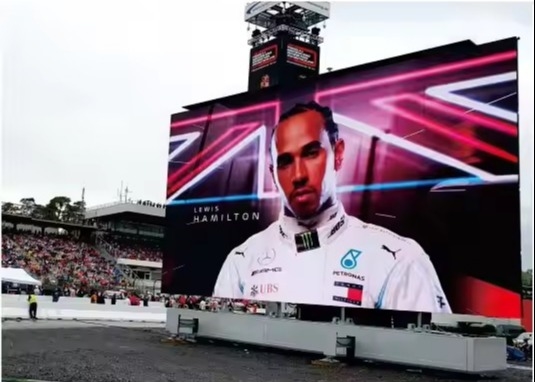

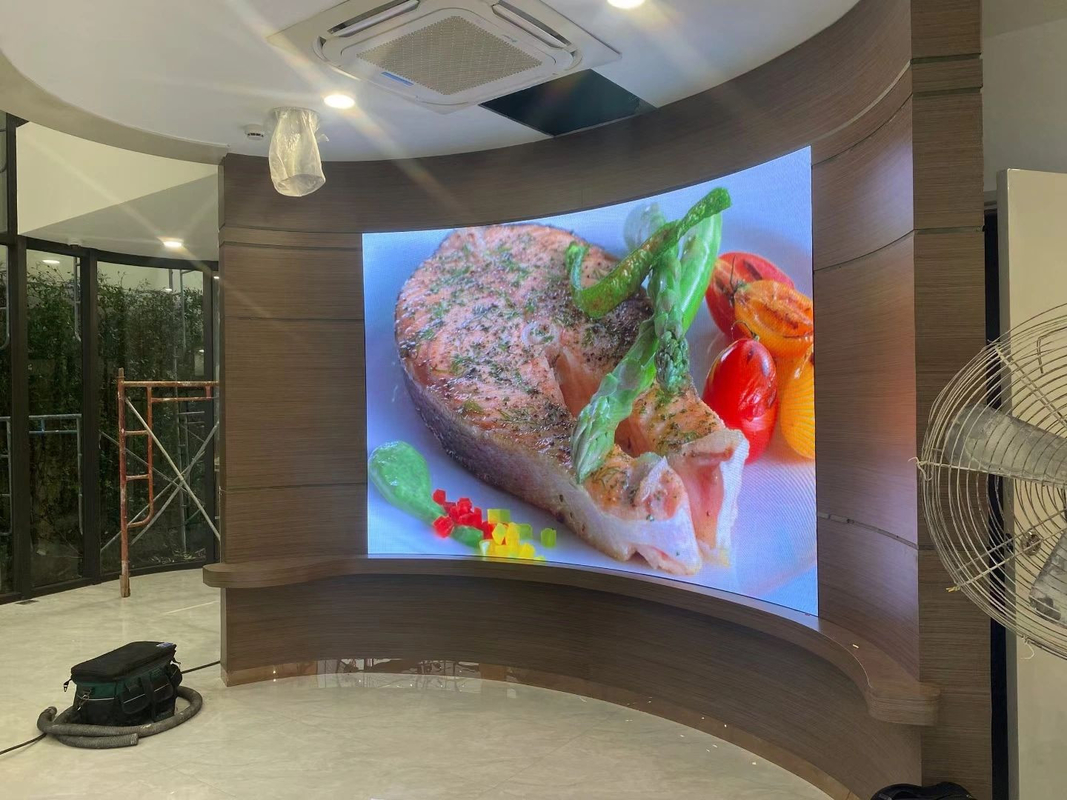

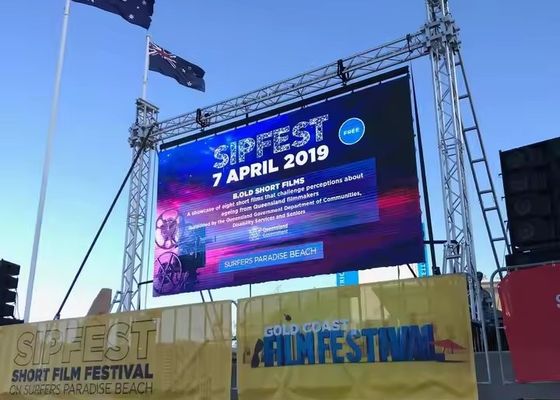

Die-Cast Aluminum Housing 384x192mm Aluminum Cabinet P6 LED Display Screen Suitable For Exhibitions, Airports And Bus Stations 0
