Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China ,Guang Dong |
| Brand Name: | Shichuangxinke |
| Certification: | CE RoHS FCC CCC TUV UL |
| Model Number: | SCXK-P8 |
| Minimum Order Quantity: | 1 square meters |
|---|---|
| Price: | USD600-1200 per square meters |
| Packaging Details: | wooden box flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after deposit payment received |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000sqm per month |
| Resolution/mm: | 8 | Pixel Configuration: | 1R1G1B |
|---|---|---|---|
| Scanning Mode: | 1/4 Scanning | Module Size: | 256x128mm |
| HS Code: | 8528591090 | Application: | Conference Room,stage Background,plaza,store |
| Driver IC: | MB5024/MB5124 | Warranty: | 2-3 Years |
| Cabinet Size: | 1024x768mm/512x512mm | ||
| Highlight: | outdoor advertising led display,advertising led billboard |
||

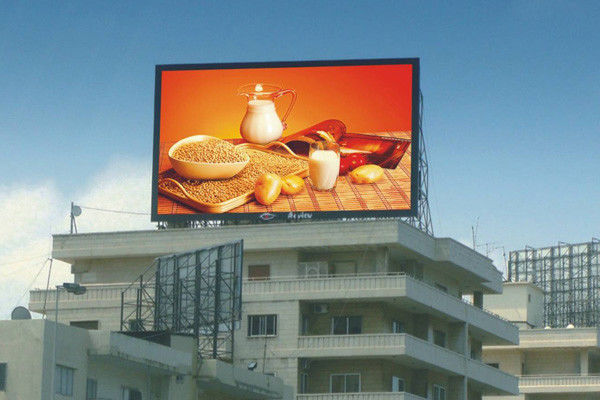

Commercial Outdoor LED Display SMD P5/P6/P8 panel , Full Color Screen
Introduction:
P8 outdoor led screen adopts physical and virtual pixel technology which makes the picture more clear and vivid, no flicker and blind dots. The screen is manufactured in a waterproof and dustproof design so it can work very well in rain and sunshine. It can be assembled and disassembled very easy, and it is an ideal product for any kind advertisements.
It characterized by perfect vivid image, super brightness, high refresh rate, long life span and stable work, and waterproof, etc.
It is widely used in advertising, sports, industrial enterprise, transportation, stations, terminals, airports, construction, education system and other public places.
Product Series:
Full Color LED Display,Indoor LED Display,Outdoor LED Display,Rental LED Display,Outdoor SMD LED Display,Outdoor DIP LED Display,Full Color LED Display Module,Single Color LED Display Module,Transparent LED Display,Advertising LED Screen
Advantage:
1. High-quality LED chip with excellent anti-static performance.
2. Wide viewing angle, soft display image, you can see the picture from any angle.
3. Built-in driver, multi-layer circuit structure design, uniform current distribution, low power consumption, fast heat dissipation.
4. ultra-high brightness, low lumen attenuation, high reliability. 5.
5. Protect the LED lamps with UV-resistant mask. 6.
6. Waterproof, moisture-proof and corrosion-proof. Display surface is sealed with epoxy resin.
7. High grayscale and refresh rate, adopting fading technology, energy saving, low electromagnetic interference, preventing power leakage, supporting system redundant backup and chromaticity calibration.
Specifications :
| outdoor SMD P8 | |||||
| Resolution/mm | 8 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 15625/m² | ||||
| Module resolution | 32x16 | ||||
| Module size/mm | 256x128 | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >7500cd/㎡ | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/4SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
Our Services
1. The price depends on the quantity, we can offer you the most competitive price under the premise of quality assurance.
2. Good after-sales service: If customers have questions about installation, use and maintenance, we can give you a prompt reply.
3. Well-trained and experienced staff will reply your inquiry within 24 hours. 4.
4. First-class quality + reasonable price + responsible after-sales service = success and victory.
5. Help you design OEM, ODM or any of your customized lamps and put them into production. 6.
6. 6. Provide agency rights for your unique design and some of our existing models.
7. Your sales area, design concept and all private information will be properly protected.
FAQ
Q1: What can you buy from us?
A: Rental LED Display, Outdoor LED Display, Indoor LED Display, Transparent LED Screen, Floor Tile Screen, Creative Design LED Screen and Etc.
Q2: Can I customize it?
A: Of course. All the goods can be customized, we have a professional product development team, welcome to customize.
Q3: What is Price per square meter of screen?
A: Welcome to send us inquiry. Our professional sales engineers will provide suitable solutions.
Q4: What is the warranty?
A: 5-8 years Warranty.
Q5: How many days for producing?
A: 1-3 days for inventory products and 10-15 days for customized products.
Q6: How to operate and use it?
A: It can by controlled by PC and Smartphone very easily.
Welcome to inquiry for more information. We provide video guidance and remote assistance.
Welcome to visit our website and inquire us more info,waiting for you all the time!!!
