Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China ,Guang Dong |
| Brand Name: | Shichuangxinke |
| Certification: | CE RoHS FCC CCC TUV UL |
| Model Number: | SCXK-P6.67 |
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden box flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after deposit payment received |
| Payment Terms: | L/C, T/T, Western Union, D/A, D/P, MoneyGram |
| Supply Ability: | 5000sqm per month |
| Pixel: | 6.67mm | Pixel Configuration: | Red Green Blue |
|---|---|---|---|
| Scanning Mode: | 1/8 | Module Size: | 320x160mm |
| HS Code: | 8528591090 | Application: | Airport,wall,church Wedding,exhibition Stand |
| Driver IC: | MB5024/MB5124 | Warranty: | 2-3 Years |
| Cabinet Size: | 640x640mm | ||
| Highlight: | led digital billboards,led advertising billboards |
||
Full Color P6.67 Outdoor Fixed LED Video Display for Advertising ,wall movie show
Applications:

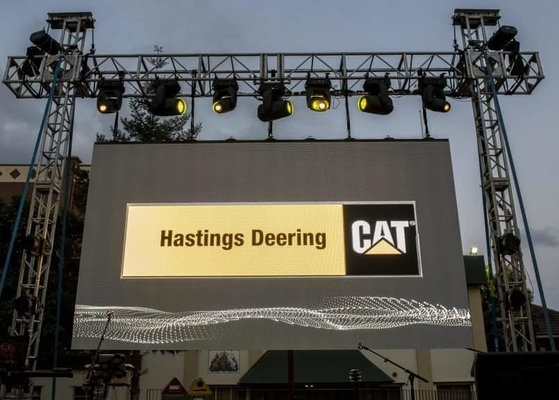

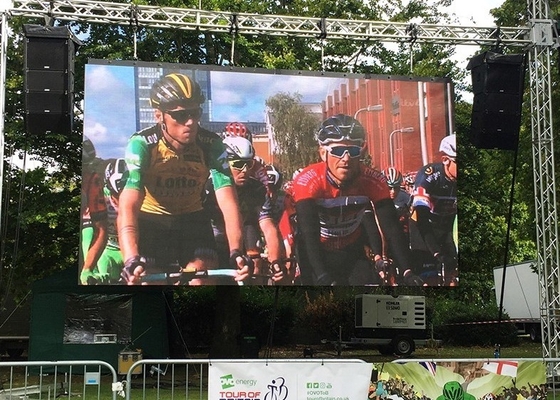

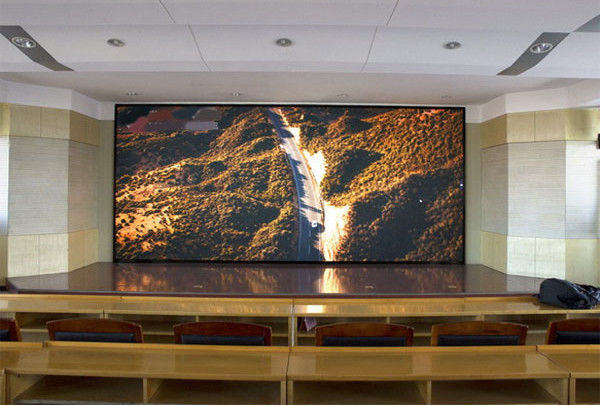

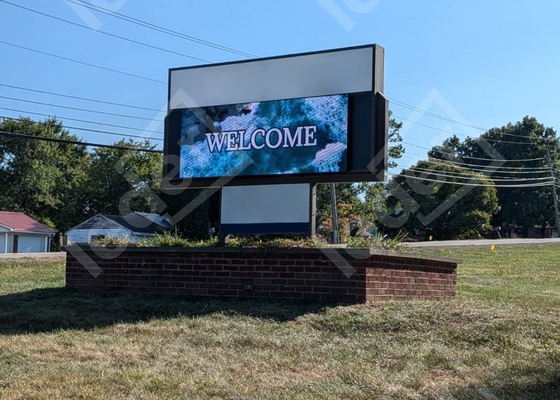

building wall, CBD video wall, shopping mall video wall, super market, ports, high speed way, roadside, cinema, truck, trailer, bus, large building top.
Product feature:
1. Suitable for strict climatic conditions, up to IP65 protection rating.
2. Seamless splicing.
3. Scientific structural design and cooling system to ensure stability and reliability, can be used continuously for a long time.
4. Quick installation, easy maintenance, front or rear maintenance can be used.
| outdoor SMD P6.67 | |||
| Resolution/mm | 6.67 | ||
| Pixel configuration | 1R1G1B | ||
| Pixel density/pixels/m² | 22478/m² | ||
| Module resolution | 48x24 | ||
| Module size/mm | 320x160mm | ||
| View distance | 14-300m | ||
| Single point brightness adjust | Can be added | ||
| Single point color adjust | Can be added | ||
| White balance brightness | >7500cd/㎡ | ||
| Color temperature | 6500K-9500K | ||
| Horizontal view angle | 120(degrees) | ||
| Vertical view angle | 60(degrees) | ||
| Signal Process bit | 10 or 16bit | ||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||
| Driving mode | Constant driving current | ||
| Scanning mode | 1/4SCANNING | ||
| Frame rate | 60Hz | ||
| Refresh frequency | >3000Hz | ||
| Control mode | Computer synchronous | ||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||
| 255 steps. No grey loss | |||
| Out of control point | <1/10000 | ||
| Working hours | ≥72hours | ||
| Mean Time Between Failure | >5000hours | ||
| Life time | 100000hours | ||
| Life-all-white(brightness halving) | 50000hours | ||
| Environment temperature range | Operating temperature range: -20-45℃ | ||
| Self-check technology | LED spot self-check, communications check, power check, | ||
| temperature monitor(need customization) | |||
| Remote monitoring | Remote supervision and control, record potential fault, | ||
| send out warning signs to the operators.(need customization) | |||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||
| Luminous point width between centres | Deviation<3% | ||
| Brightness uniformity | <10% | ||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||
| Power supply request | AC85-264V(50Hz-60Hz) | ||
| Contrast | (1000:1) | ||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||
| Humidity(working) | working:10-95% | ||
| Humidity(storing) | storing:10-95% | ||
Remark
1.Price term:Total quotation is based on FOB Shenzhen
2.Warranty period: 2 years
3.Payment term: 30% deposit,Balance before shipping.
4.Packing method: flight case & wooden case
5.Delivery time: 3-20 days after deposit
