Indoor Rental Screen Small Pitch Ultra-Clear P1.923LED Video Display, Hotel/Bank/Conference Room

Indoor Rental Screen Small Pitch Ultra-Clear P1.923LED Video Display, Hotel/Bank/Conference Room

  • Indoor Rental Screen Small Pitch Ultra-Clear P1.923LED Video Display, Hotel/Bank/Conference Room
  • Indoor Rental Screen Small Pitch Ultra-Clear P1.923LED Video Display, Hotel/Bank/Conference Room
  • Indoor Rental Screen Small Pitch Ultra-Clear P1.923LED Video Display, Hotel/Bank/Conference Room
  • Indoor Rental Screen Small Pitch Ultra-Clear P1.923LED Video Display, Hotel/Bank/Conference Room
Indoor Rental Screen Small Pitch Ultra-Clear P1.923LED Video Display, Hotel/Bank/Conference Room
Product Details:
Place of Origin: China ,Guang Dong
Brand Name: Shichuangxinke
Certification: CE RoHS FCC CCC TUV UL
Model Number: SCXK-P1.923
Payment & Shipping Terms:
Minimum Order Quantity: 1 square meters
Price: USD 4000-5000 per square meters
Packaging Details: wooden box flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after deposit payment received
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Pixel Pitch: 1.923 Pixel Configuration: 1R1G1B
Scanning Mode: 1/32 Scanning Module Size: 246x246mm
Cabinet Size: 492x492mm Certificates: CE RoHS FCC CCC UL
Application: Stadium,airport,shopping Mall,street Advertising Material: Aluminum/iron
Warranty: 2-3 Years IC: MB5124/MB5024
Highlight:

led full color screen

,

indoor led display screen

Inside High Pixel P1.923 HD LED Video Display Board Safe Structure For Hotel / Bank



Features:



1. High pixel, fine and realistic picture quality, pure and bright colors

2. High flatness, consistent picture

3. High grayscale, studio effect

4. Safety structure

5. Wide viewing angle display technology

6. Dust-proof, moisture-proof, flame-retardant design, safe and reliable, long service life

7. Back channel maintenance, convenient and fast


Description:


1. P1.667 SMD LED display has high resolution and is suitable for indoor LED screens;
2. Both horizontal and vertical viewing angles are 140 degrees;
3. P1.667 is increasingly used for electronic digital signage because the trend of LED screens is high resolution.
4. Advertising images and videos are clear and realistic;
5. High contrast ratio of 1000:1, presenting a real and natural color LED screen;



Advantages



1) Displaying video motion pictures in high definition
With 4,096 steps of brightness control for each RED, GREEN and BLUE color,

our system is designed to provide pictures quality similar to that of analog formula, without losing image data.
2) Displaying multi(natural) colors
With 4,096 color grades of each RED, GREEN and BLUE color, our system is designed to

display multi-colors amounting 68.7 billion on the screen.
3) Windows based operating software
Our system is designed to be operated with MS Windows.
4) Providing delicate brightness adjustment
Our system is designed to provide delicate brightness adjustment(by each 0.025% steps)
5) Providing automatic brightness adjustment
Our system is designed to provide automatic brightness adjustment according to

the change of ambiance brightness.
6) Screen size adjustment
Our system is designed to adjust screen size not only to the standard ratio of 4 : 3 or 16 : 9

but also specific size as you want to use



Specifications :



outdoor DIP P1.923
Resolution/mm 1.923
Pixel configuration 1R1G1B
Pixel density/pixels/m² 270420/m²
Module resolution 128x128
Module size/mm 246x246mm
View distance 14-300m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >7500cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 16bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode Constant driving current
Scanning mode 1/30 SCANNING
Frame rate 60Hz
Refresh frequency >3000Hz
Control mode Computer synchronous
Brightness adjusted range Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss
Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃
Self-check technology LED spot self-check, communications check, power check,
temperature monitor(need customization)
Remote monitoring Remote supervision and control, record potential fault,
send out warning signs to the operators.(need customization)
Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%



Packaging & Shipping:

1. Customized packaging. Flight cases, wooden cases and cartons. We can also help you print your logo on the boxes and the products themselves.

2. We offer drop shipping services. To ensure you receive your order tax-free upon import, we declare a lower value.

3. For regular standard cabinet orders, we can ship within 1-2 working days after receiving your sample confirmation and payment; for large custom OEM orders: we need longer time, about 15-25 working days after receiving your sample confirmation.

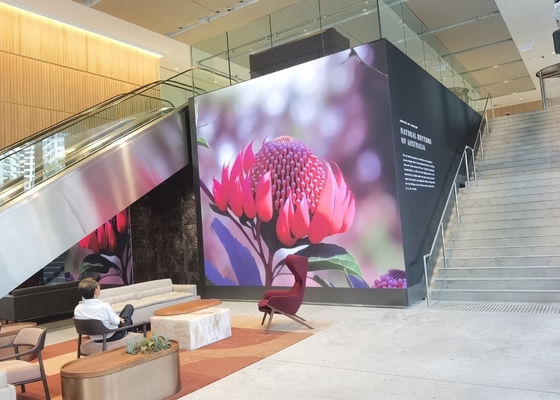

Indoor Rental Screen Small Pitch Ultra-Clear P1.923LED Video Display, Hotel/Bank/Conference Room 0

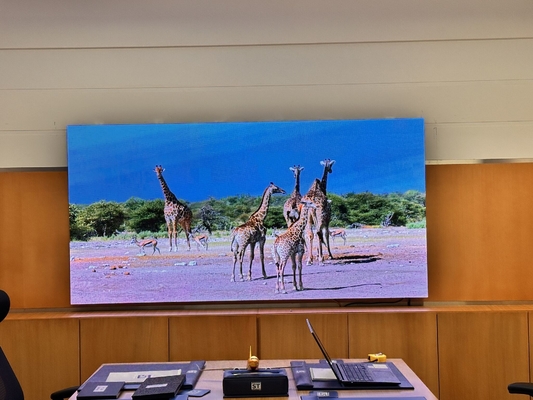

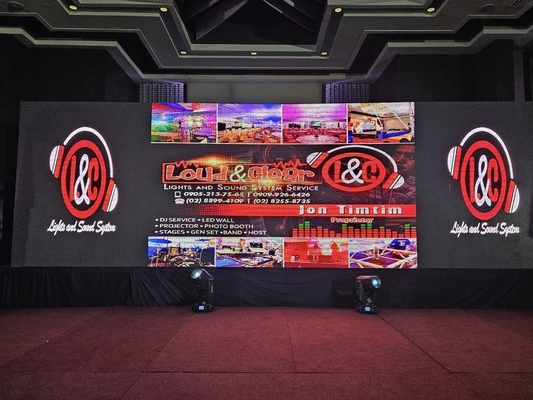

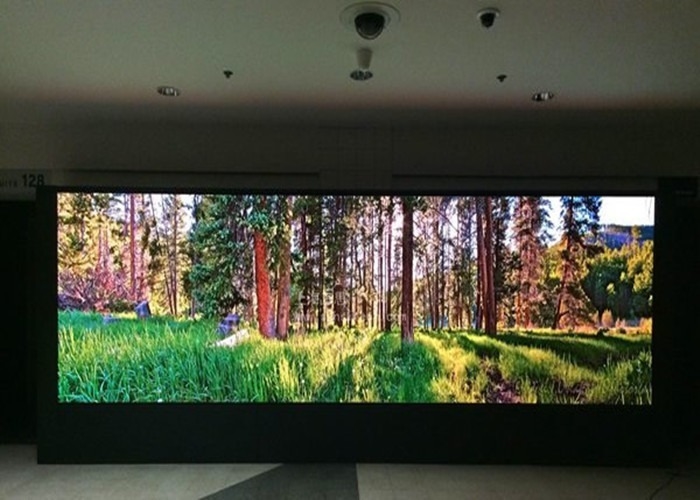

Indoor Rental Screen Small Pitch Ultra-Clear P1.923LED Video Display, Hotel/Bank/Conference Room 1Indoor Rental Screen Small Pitch Ultra-Clear P1.923LED Video Display, Hotel/Bank/Conference Room 2Indoor Rental Screen Small Pitch Ultra-Clear P1.923LED Video Display, Hotel/Bank/Conference Room 3



FAQ



Q1: What can you buy from us?

A: Rental LED Display, Outdoor LED Display, Indoor LED Display, Transparent LED Screen, Floor Tile Screen, Creative Design LED Screen and Etc.

Q2: Can I customize it?

A: Of course. All the goods can be customized, we have a professional product development team, welcome to customize.

Q3: What is Price per square meter of screen?

A: Welcome to send us inquiry. Our professional sales engineers will provide suitable solutions.

Q4: What is the warranty?

A: 5-8 years Warranty.

Q5: How many days for producing?

A: 1-3 days for inventory products and 10-15 days for customized products.

Q6: How to operate and use it?

A: It can by controlled by PC and Smartphone very easily.
Welcome to inquiry for more information. We provide video guidance and remote assistance.
