Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China ,Guang Dong |
| Brand Name: | Shichuangxinke |
| Certification: | CE RoHS FCC CCC TUV UL |
| Model Number: | SCXK-P1.923 |
| Minimum Order Quantity: | 1 square meters |
|---|---|
| Price: | USD 4000-5000 per square meters |
| Packaging Details: | wooden box flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after deposit payment received |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000sqm per month |
| Pixel Pitch: | 1.923 | Pixel Configuration: | 1R1G1B |
|---|---|---|---|
| Scanning Mode: | 1/32 Scanning | Module Size: | 246x246mm |
| Cabinet Size: | 492x492mm | Certificates: | CE RoHS FCC CCC UL |
| Application: | Stadium,airport,shopping Mall,street Advertising | Material: | Aluminum/iron |
| Warranty: | 2-3 Years | IC: | MB5124/MB5024 |
| Highlight: | led full color screen,indoor led billboard |
||

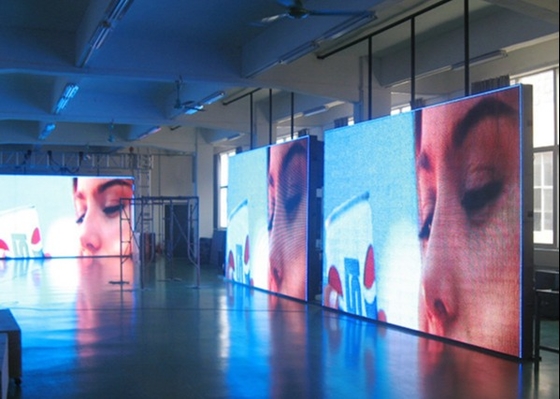

Indoor Events Small Pixel Pitch P1.923 LED Display with wide viewing angle
Advantages:
1. Seamless installation, wider viewing angle, good color uniformity
2. Soft image, green and environmentally friendly
3. High refresh rate, eliminating ghosting, no tailing
4. The positioning slot uses positioning pins, good flatness
5. 16-bit grayscale processing, more natural color performance
Description:
P1.923 Full Color for High Standard Meeting
Led Pixel Pitch 1.9mm LED Video Wall
Indoor Die-cast P1.9 Display Monitor for Advertising
Specifications
| Indoor P1.923 | |||||
| Resolution/mm | 1.923 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 270420/m² | ||||
| Module resolution | 128x128 | ||||
| Module size/mm | 246x246mm | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >7500cd/㎡ | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/30 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
Factory training with the follow course:
Basic computer knowledge
Basic LED knowledge
LED hardware structure and working principle
Screen programming and all the software demonstration
System daily maintenance and safety regulations
On-site training
The installation of system software
The function of apparatus in system and the method of the right usage
The inspection, adjustment and test of apparatus and the measurement tools common use and instrumental usage
The apparatus protection instructions
Ordinary software & hardware malfunction disposal
FAQ
Q1.Can I have a sample order for the LED display?
A:Yes,we welcome sample orders to test and check quality.Both for the module or the whole screen.
Q2.What about the lead time?
A:Order less than 100 square meters lead time to take 15 working days
Q3.Do you have any MOQ limit for LED display orders?
A:Low MOQ,1 square meter or a module checking is available
Q4.How do you ship the goods and how long does it take to arrive?
A:We mostly accept EXW FOB CIF DDP and other shipping ways.It usually takes 20~30 days on the sea.a few days for customs clearance
Q5.How to proceed with an order for an LED display?
A:Firstly let us know your requirements or application.
Secondly,We quote according to your requirements or our suggestions.
Thirdly customer confirms the design document and places a deposit for the formal order.
Fourthly We arrange the production.
Q6.Is it OK to print my logo on the products?
A:Yes.Please inform us formally before our production and confirm the design firstly based on our sample.
Q7:Do you offer a guarantee for the products?
A:Yes,we offer 1-5 years warranty for our products.
