Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China ,Guang Dong |
| Brand Name: | Shichuangxinke |
| Certification: | CE RoHS FCC CCC TUV UL |
| Model Number: | SCXK-P5 |
| Minimum Order Quantity: | 1 square meters |
|---|---|
| Price: | USD600-1800 per square meters |
| Packaging Details: | wooden box flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after deposit payment received |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000sqm per month |
| Resolution/mm: | 5 | Pixel Configuration: | Full Color Red Green Blue |
|---|---|---|---|
| Scanning Mode: | 1/8 Scanning | Module Size: | 320x160mm |
| Certificates: | CE RoHS FCC CCC UL | Application: | Stadium,airport,shopping Mall,street Advertising |
| Material: | Die-casting Aluminum Alloy | Warranty: | 2-3 Years |
| Cabinet Size: | 640x640mm/960x960mm | ||
| Highlight: | outdoor advertising led display,advertising led billboard |
||
Ultrathin P5 / P6 / P8 / P10 Rental cabinet LED Screen Display for video display
Introduction:
SCX is a high-tech enterprise integrating LED display R&D, design, production, marketing and after-sales service.
We can provide various types of indoor and outdoor LED display screens, which are widely used in banks, communication bureaus, power industry, transportation, stadiums and sports areas, commercial plazas, entertainment venues, for advertising, sports, events, stock/sports news quotes, information centers, prices and other applications. Basic LED cabinets are easier for customers to install and maintain to meet market needs.
We are also known for building custom LED display screens to meet your unique and specific needs. What's more, we are committed to providing quality products and excellent customer service at competitive prices. With the quality management system ISO9001, strong R&D and manufacturing team, SCX has become one of the leading companies in the LED display industry in Shenzhen
As the most important part of LED display screens, the quality of LED modules determines the quality of LED display screens. Therefore, our team spares no effort to design and produce high-quality LED modules. From circuit design to material selection, we pay attention to every detail to ensure the stability and performance of the module. We know that all our efforts on LED modules are worth it.
Specifications :
| outdoor SMD P5 | |||||
| Resolution/mm | 5 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 4000/m² | ||||
| Module resolution | 64x32 | ||||
| Module size/mm | 320x160mm | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >7500cd/㎡ | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/16 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||

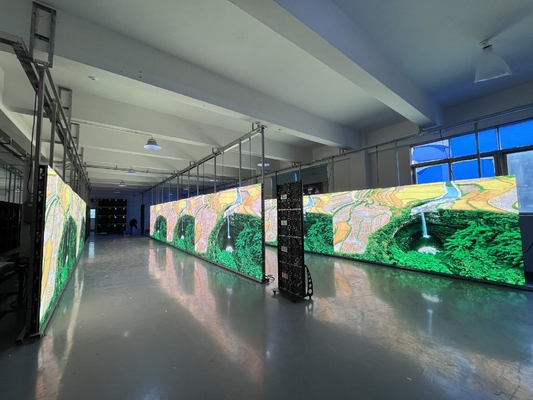

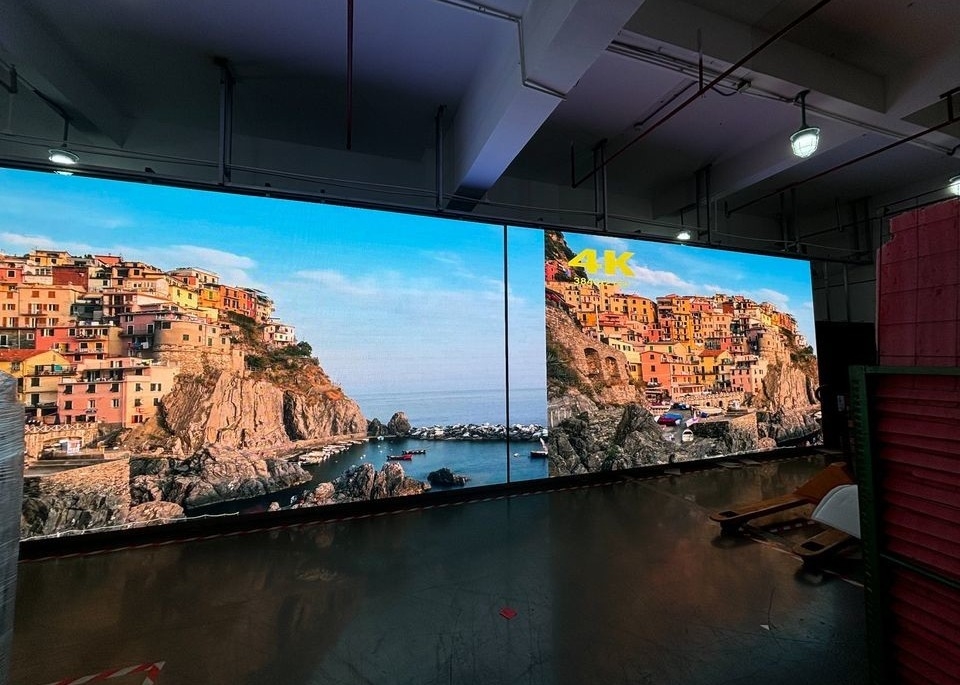

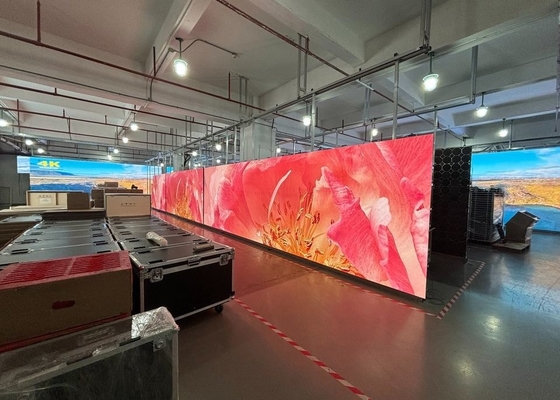

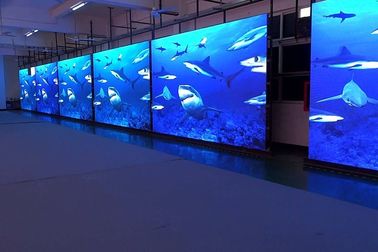

Our Project:
Our Services
1. Our experienced and professional engineers and staff will provide you with personalized solutions.
2. All parts we provide have a warranty period of 24 months.
3. We guarantee that each unit has been carefully tested and works well before shipment. We strive to get 100% customer satisfaction with every sale.
4. During the warranty period, we can repair or replace the defective unit for free, after the warranty period, we will repair the defective unit and charge the cost of the parts.
5. When you receive the package, please open and check it before signing, if there is any damage, please ask for a "Damage Certificate" from the delivery company.
6. If you have any questions, please contact us by email or trade manager, emails will be replied within 12 working hours
FAQ
Q1: What is the control system? How is it?
A: We use Nova Taurus Series asynchronous control system. Support cluster play and management. Support APP/Phone/ WIFI/ Ipad/ Laptop/ PC/ Cloud control. It’s very easy and convenient to control.
Q2: Can I have a sample order for led screen?
A: Yes, we welcome sample order to test and check quality. Mixed samples areacceptable.
Q3:Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q4: What is your best service?
1: One to one sales engineer to customer responsibility system;
2. Know your project and provide the best solution for it;
3. Track your order and let you know each step and detail of it;
4. Teach you how to install and use the screen;
5. Care the subsequent use of your screen and ensure your after - sales service be well.
Q5. How about your delivery time?
A: Generally, it will take 7-15 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
Q6:How about your Warranty Term?
A: 2-year warranty. Structure design, installation problem, system problem, how to use the screen…don’t worry, we have professional after-sale team to solve your any questions after you placed an order. And your exclusive sales engineer will also help you get over any problems.
Welcome to visit our website and inquire us more info,waiting for you all the time!!!
