Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China ,Guang Dong |
| Brand Name: | Shichuangxinke |
| Certification: | CE RoHS FCC CCC TUV UL |
| Model Number: | SCXK-P12 |
| Minimum Order Quantity: | 1 square meters |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden box flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after deposit payment received |
| Payment Terms: | L/C, T/T, Western Union, D/A, D/P |
| Supply Ability: | 5000sqm per month |
| Resolution/mm: | 12 | Pixel Configuration: | 1R1G1B |
|---|---|---|---|
| Scanning Mode: | 1/4 Scanning | Module Size: | 192x192mm |
| Cabinet Size: | 960x768mm | Certificates: | CE RoHS FCC CCC UL |
| Application: | Stadium,airport,shopping Mall,street Advertising | Material: | Aluminum |
| Warranty: | 3-5 Years | ||
| Highlight: | advertising led display board,outdoor advertising led display |
||

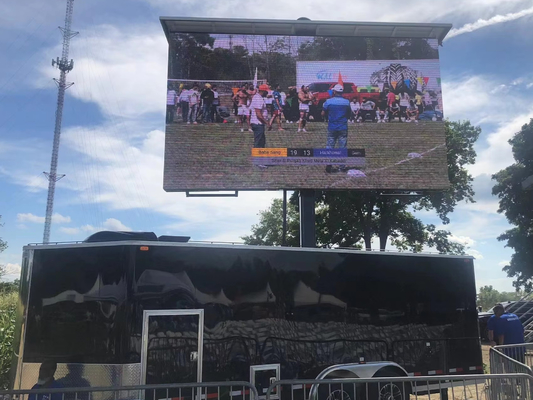

Energy Saving Advertising LED Screens , Truck Mobile LED Display Signs For Public Information
Characteristics:
1. The P12 outdoor full-color LED display is low-cost and widely used in large outdoor LED screen projects;
2. The P12 indoor full-color LED display has a contrast ratio of up to 4000:1, which can display clear and realistic images;
3. Easy to operate: The LED box is ultra-light and has a quick locking function, which can be easily assembled and disassembled by one person;
4. Ultra-thin: The thickness of the P12 outdoor full-color LED display is designed to be 90mm;
5. Equipped with a silent fan.
Application:
Airport Full Color Outdoor RGB LED displays
Train station Outdoor RGB Full Color LED Displays
Entertainment Bar Outdoor RGB Full Color LED Screen
Stadium Outdoor RGB Full Color LED Display
Museum Full Color Outdoor RGB LED display
Car exhibition LED display
Conference room Outdoor RGB Full Color LED Video Display
Shopping Mall Outdoor RGB Full Color LED display
Specifications
| outdoor DIP P12 | |||||
| Resolution/mm | 12 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 6944/m² | ||||
| Module resolution | 16x16 | ||||
| Module size/mm | 192x192MM | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >7500cd/㎡ | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/4 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
FAQ
1.Q:Are you a factory or trading company?
A:We are a factory,located in Dalang,Longhua District .
2.Q:What kind of payment terms you accept?
A:We accept T/T,Western Union,MoneyGram etc.
3.Q:What's packaging?
A:1.Flight case packaging
2.Wooden case packaging
3.36pcs in one case packaging
4.Customized packaging
4.Q:Does you have CE/ROHS certificates?
A:Yes, we offer the CE & ROHS certificates .
5.Q:What's the shipping method,shipping time?
A:Our products could be shipped by Sea, by Air, and by Express.
by sea:20-40days; by air:5-10days ;by express:3-6days
Advantage
1. We have the advantage of a full range of LED display production
2: Goods supply from indoor and outdoor P10, P8, P6, P4,P3,P3.91, P4.81, P2, P2.5, P1.976 have sufficient inventory, at the same time has high quality, let you buy at ease, use at ease
3. We have round-the-clock online customers to help customers and give customers product performance introduction, as
wellasproduct advantage analysis; According to the actual situation and the use of the situation, for the customer
evaluation,choosethe most reasonable scheme
4: At the same time, we can provide customers with professional training on the operation and maintenance of the led display
system Display troubleshooting
