Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.

|
| Place of Origin: | China ,Guang Dong |
| Brand Name: | Shichuangxinke |
| Certification: | CE RoHS FCC CCC TUV UL |
| Model Number: | SCXK-P20 |
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden box flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after deposit payment received |
| Payment Terms: | L/C, T/T, Western Union, D/P,D/A, MoneyGram |
| Supply Ability: | 5000sqm per month |
| Resolution/mm: | 20 | Pixel Configuration: | 1R1G1B |
|---|---|---|---|
| Scanning Mode: | Static Full Color | Module Size: | 320x160mm |
| Cabinet Size: | 1280x960mm | Certificates: | CE RoHS FCC CCC UL |
| Application: | Stadium,airport,shopping Mall,street Advertising | Material: | Aluminum |
| Warranty: | 3-5 Years | ||
| Highlight: | full color outdoor led display,outdoor full color led screen |
||

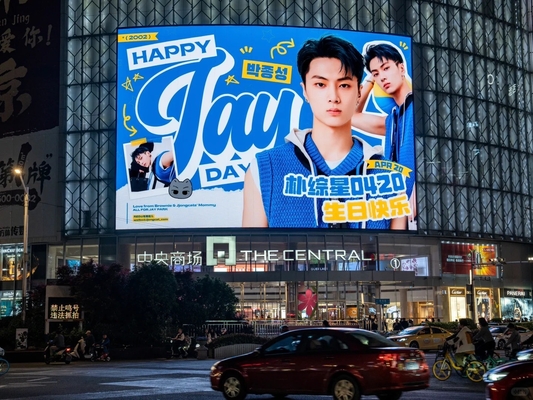

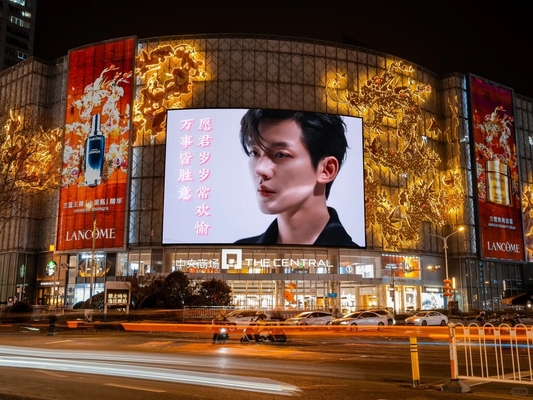

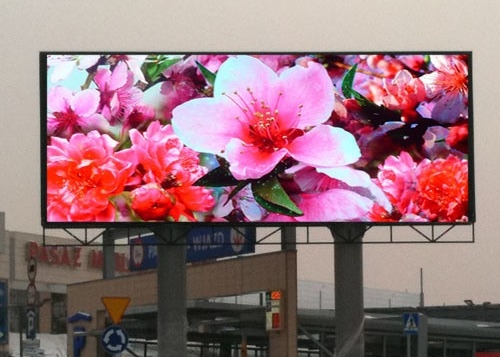

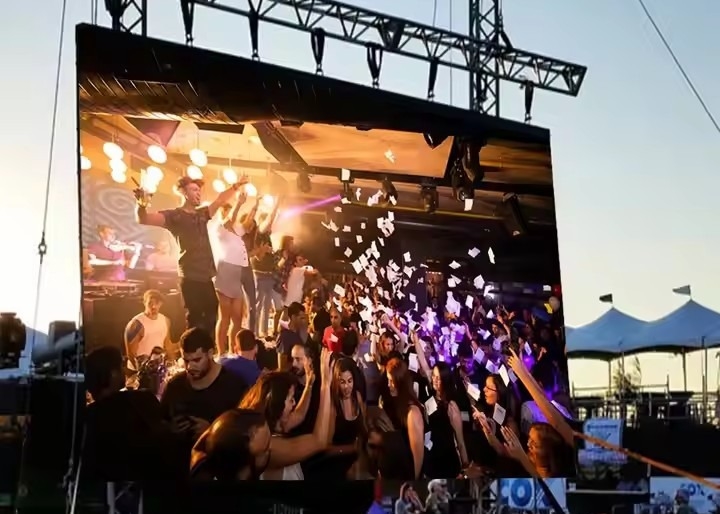

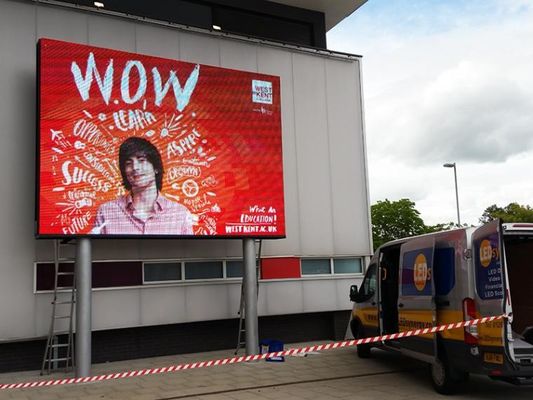

Commercial Free Standing Outdoor Full Color Led Display Street And Supermarket Advertising
Outdoor use
Advertising posters are displayed in a rolling manner. Advertising posters are replaceable. Large and small sizes are available. Suitable for bus stations, railway stations, airports, hotels, and street advertising.
Description
1. The light box is not affected by any power supply and will not cause light pulling
2. The screen display, change and operation are quiet and smooth.
3. Improve the efficiency of advertising space use and low cost.
4. It is convenient to replace posters.
5. It is an open profile and easy to change the screen.
6. The size, color and style can be made according to customer requirements. The light box shell is aluminum alloy, steel plate sprayed or stainless steel. The shell color is metal color or black
7. The shell material, color and style can also be changed according to customer requirements.
Specifications :
| outdoor DIP P20 | |||||
| Resolution/mm | 20 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 2500/m² | ||||
| Module resolution | 16x8 | ||||
| Module size/mm | 320x160mm | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >7500cd/㎡ | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | static full color | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
Our Service
1. Your inquiry related to our products or price will be replied in 24hrs
2. OEM&ODM,any your customized lightings we can help you to design and put into product
3. Distributoership are offered for your unique design and some our current models
4. Protection of your sales area,ideas of design and all your private information
5. Top Quality+Reasonable Price+Responsible After Service=Successful & Win
6. Export countries : Brazil , Chile , Argentina, Poland, Europe , US america .
FAQ
Q1: What can you buy from us?
A: Rental LED Display, Outdoor LED Display, Indoor LED Display, Transparent LED Screen, Floor Tile Screen, Creative Design LED Screen and Etc.
Q2: Can I customize it?
A: Of course. All the goods can be customized, we have a professional product development team, welcome to customize.
Q3: What is Price per square meter of screen?
A: Welcome to send us inquiry. Our professional sales engineers will provide suitable solutions.
Q4: What is the warranty?
A: 5-8 years Warranty.
Q5: How many days for producing?
A: 1-3 days for inventory products and 10-15 days for customized products.
Q6: How to operate and use it?
A: It can by controlled by PC and Smartphone very easily.
Welcome to inquiry for more information. We provide video guidance and remote assistance.
