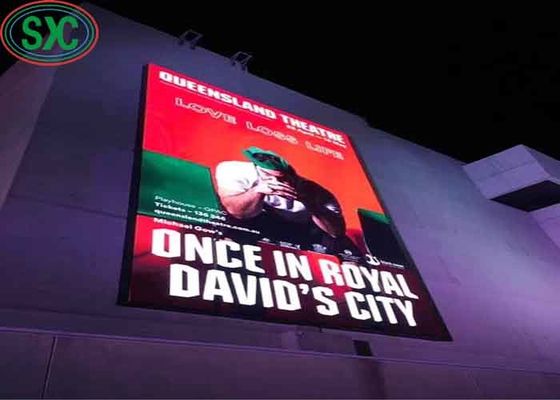

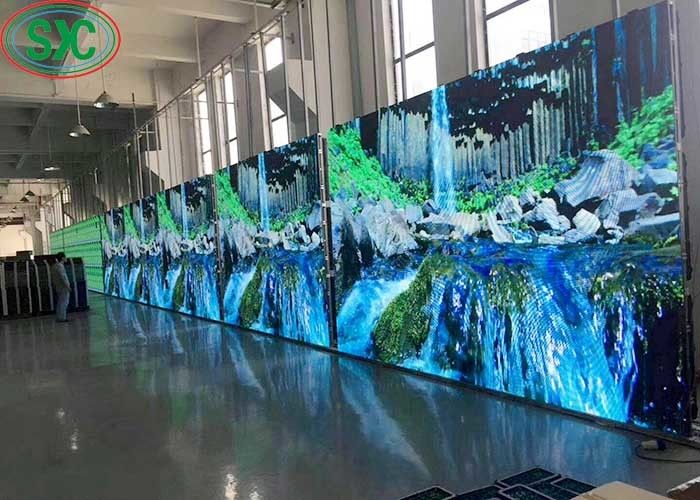

High Definition 5mm Pixel Pitch SMD LED Screen Outdoor IP65 Waterproof RGB Media Wall with 32*32 Module Resolution

Brand Name:	SCXK
Model Number:	SCXK-P5
MOQ:	5sqm
Price:	negotiation
Payment Terms:	D/P,T/T,Western Union,MoneyGram
Supply Ability:	5000sqm per month

Detail Information

Product Description

Detail Information

Place of Origin:

made in china

Certification:

CE/ROHS/FCC/ISO/UL

Pixel Pitch:

5mm

Module Size:

160mm*160mm

Module Resolution:

32*32

Brightness:

5000 Cd/m²

Viewing Angle:

120°V/120°H

Refresh Rate:

≥600Hz/s

Packaging Details:

flight case, wooden case, carton, it is up to you.

Highlight:

smd led display

outdoor smd led display

Product Description

High Definition P5mm 3 In 1 SMD LED Screen Outdoor RGB Media Wall Screen

Product Overview

High Definition P5mm 3 In 1 SMD LED Screen Outdoor RGB Media HD Movie Video LED wall screen display. Shenzhen Shichuangxinke Electronic Co., Ltd is a leading manufacturer with advanced technologies in the LED field.

Established in 2005 in Longhua, Shenzhen, with a plant area of 10,000 square meters and 300 office staff members. By the end of 2014, production capacity reached 5,000 sq.m per month, making us one of the fastest-growing companies in China's LED industry.

Quality Components

Light Ball

High quality 2727 White lamp with superior raw material processing, encapsulation technology, and quality control compared to market alternatives.

Chip Technology

Advanced LED packaging technology with solid crystal, gold wire bonding, precision testing, and automated production lines ensuring higher refresh rates.

Border Construction

0.5mm frame thickness for enhanced durability and longevity. Surface treatment prevents paint chipping with fine, beautiful workmanship.

Factory Strength

Specialized in full-color LED display production with advanced automated rapid assembly lines and worldwide professional service commitment.

Technical Specifications

Parameter	P5 Outdoor Full Color Display
Pixel Pitch	5mm
Pixel Density	20,000 dot/m²
Pixel Configuration	1(RGB)
LED Type	SMD
Module Size	160×160 mm
Module Resolution	32×32
Brightness	5,000 cd/m²
Max Power Consumption	1,050 w/m²
Best Viewing Distance	6-18 m
Viewing Angle	120°V/120°H
Drive Mode	Constant Current drive 1/8 scan
Driving IC	MBI5026GF
Frame-change Frequency	≥60 Hz/s
Refresh Rate	≥600 Hz/s
Gray Grade Level	4,096 grades
Colors	65,536 colors
Display Mode	192×192
Control System	Synchronization Control
Transmission Distance	Reticle≤100M; Multi-mode Fiber≤500M; Single-mode Fiber≤10,000M
Out of Control Rate	≤0.0001
Lifespan	≥100,000 hours
Driving Power	5V
Working Voltage	AC220V±10% 47HZ~60Hz
Working Temperature	-10ºC~+55ºC
Working Humidity	5%RH~85%RH

Quality Assurance Methods

Aging Test: 100% fully tested for 72 hours with 256 gray level

Vibration Testing: 3-5 minutes up and down in 5mm range

Order Procedure

Negotiation → First solution recommended → Finalize details → 30% deposit or full payment → Production → Balance payment → Shipment via DHL → Tracking provided → Feedback

Packing and Shipping

Flight Case Packing:

150KG per flight case
3 cabinets per case
Case size: 1010×560×1175 mm (39×22×46 inches)

Plywood Case Packing:

180KG per plywood case
3 cabinets per case
Case size: 1120×585×930 mm (44×23×36 inches)

Customized packing available

20"FT container loading: 100 sq.m capacity

Payment Terms:

T/T: 30% deposit, 70% before shipment
100% Western Union in advance

Production Flow

Why Choose Us

Continuous Quality

10+ years experience with regularly updated equipment and unique standardized module production ensuring consistent quality.

Competitive Price

Large-scale production capacity and professional technology with effective modular production to reduce costs.

Fast Delivery

Commitment to promised delivery dates with emergency inventory procedures to maintain uninterrupted supply.

Perfect Service

Pre-sales: Suitable product recommendations. After-sales: Continuous product usage tracking and improvement.

Frequently Asked Questions

What kind of payment terms do you accept?

We accept T/T and Western Union.

What about your LED Display quality?

Comprehensive quality checking throughout manufacturing process and 100% inspection before shipment ensure consistent product quality.

What is your delivery time?

Within 7-35 days depending on your location and order quantity.

Is your LED display competitive?

Yes, as a manufacturer with over 10 years experience, our mass and professional production ensures competitive LED displays.
