Advertising Video Outdoor Fixed Led Display Billboard Great Waterproof

Advertising Video Outdoor Fixed Led Display Billboard Great Waterproof

    • Advertising Video Outdoor Fixed Led Display Billboard Great Waterproof
    • Advertising Video Outdoor Fixed Led Display Billboard Great Waterproof
  • Advertising Video Outdoor Fixed Led Display Billboard Great Waterproof

    Product Details:

    Place of Origin: China
    Brand Name: SCXK
    Certification: CE/ROHS/FCC/ISO/UL
    Model Number: P6

    Payment & Shipping Terms:

    Minimum Order Quantity: negotiation
    Price: negotiation
    Packaging Details: flight case, wooden case, carton, it is up to you.
    Delivery Time: 7-10 working days after receive your payment
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 5000sqm per month
    Contact Now
    Detailed Product Description
    Product Name: P6 SMD Full Color RGB Advertising Outdoor Video LED Display Billboard Pitch Size: 6mm
    Pixel Configuration: Red &green&blue Red Wavelength: 625±2nm
    Green Wavelength: 525±2nm Blue Wavelength: 470±2nm

    P6 SMD Full Color RGB Advertising Outdoor Video LED Display Billboard



    Remote network intelligent control system:

    control of several city remote synchronization or time display, change at any time you want to broadcast content. Only a mouseclick operation can be easily replaced the picture information, so as to realize the display advertising networkcluster. Multi function card to achieve timing or manualswitch screen at any time, to realize unattended function.



    Scope of application:



    widely used in the Outdoor environment , such as The building wall , Stadium, Supermarket,Outdoor advertising etc., to display text , graphic, picture and video etc.



    ♦ Product specification

    outdoor  SMD P6
    Resolution/mm 6
    Pixel configuration 1R1G1B
    Pixel density/pixels/m² 27778/m²
    Module resolution 32*32
    Module size/mm 192x192
    View distance 5-400m
    Single point brightness adjust Can be added
    Single point color adjust Can be added
    White balance brightness >8000cd/㎡
    Color temperature 6500K-9500K
    Horizontal view angle 120(degrees)
    Vertical view angle 60(degrees)
    Signal Process bit 10 or 16bit
    Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
    Control distances Internet cable:100m, multimembrane:500m, monofilm:2km
    Driving mode Constant driving current
    Scanning mode (1/4)
    Frame rate 60Hz
    Refresh frequency >3500Hz
    Control mode Computer synchronous
    Brightness adjusted range

    Manual, automatic operation, stepless continuous adjusted

    255 steps. No grey loss

    Out of control point <1/10000
    Working hours ≥72hours
    Mean Time Between Failure >5000hours
    Life time 100000hours
    Life-all-white(brightness halving) 50000hours
    Environment temperature range Operating temperature range: -20-45℃
    Maximum power:/㎡ <900W
    Average power:/㎡ <350W
    Self-check technology

    LED spot self-check, communications check, power check,

    temperature monitor(need customization)

    Remote monitoring

    Remote supervision and control, record potential fault,

    send out warning signs to the operators.(need customization)

    Software environment WindowsNT,Windows1999,WindowsXP
    Luminous point width between centres Deviation<3%
    Brightness uniformity <10%
    Color uniformity(chromaticity coordinate) ±0.003
    Power supply request AC85-264V(50Hz-60Hz)
    Contrast (1000:1)
    System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
    Humidity(working) working:10-95%
    Humidity(storing) storing:10-95%



    Product overviews
    Items Indoor Led display:
    P1.5 P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10
    Outdoor Led display:
    P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25
    Dance floor led display
    DJ led screen
    Transparent led display
    Material steel,aluminum ,die casting aluminum
    Certificates CE, FCC,RoHS, CCC, UL
    Payment
    terms
    30% deposit before production, 70% balance before shipping
    T/T
    Western Union
    Packing: Standard Export Carton with fully Polyfoam or Pearl Wool
    Flight case;
    Anti-shaking wooden case
    Shipping: 5 to 7 working days upon receiving deposit payment
    After-Sales-Service: Lifetime with professional engineer support for free.
    Within 5 year, supply spare parts for free if has quality problem
    ( not by man-made damage)
    Using Range Shopping mall,bank,bus station, train station,
    center of downtown, airport, school, factory, bus, taxi,and so on.



    ♦ Production process:

    1) Incoming Inspection→2) SMD→3) Plug-in

    →4) Wave Soldering→5) After Welding→6) Testing

    →7) Semi Finished Aging→8) Module Assembly

    →9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing



    ♦ Packaging and shipping

    Wooden case or flight case package are available.

    Shipping by sea,air or DHL,multiple shipping ways for your choice.



    ♦ Description:

    •With sensitive control system, it can adjust screen brightness automatically according to the lighting change of indoor and outdoor, saving energy to reduce your operating costs greatly.
    •High refresh rate and high gray make the picture more realistic, which meets the demand of high visual quality of commercial usage.
    •The advertising contents can be changed at any time, for different customers and various advertisements.
    •you can know the display operation anytime, anywhere.
    • it can turn on and turn off the screen by software timing or manually at any time, achieving unattended function.



    ♦ Our advantages

    Professional Manufacturer of led display

    1. OEM service,No MOQ

    2. Easy installation,regular items in Stocks

    3. Offering free design drawing as requested.

    4. Remote controlling and adjusting are available.

    5. Wooden case or flight case,you are the boss.

    6. Your reply will be replied within 24 hours.

    7. Fast delivery: Usually 6-8 working days

    8. Excellent R&D team,factory Price and assure you quality goods.

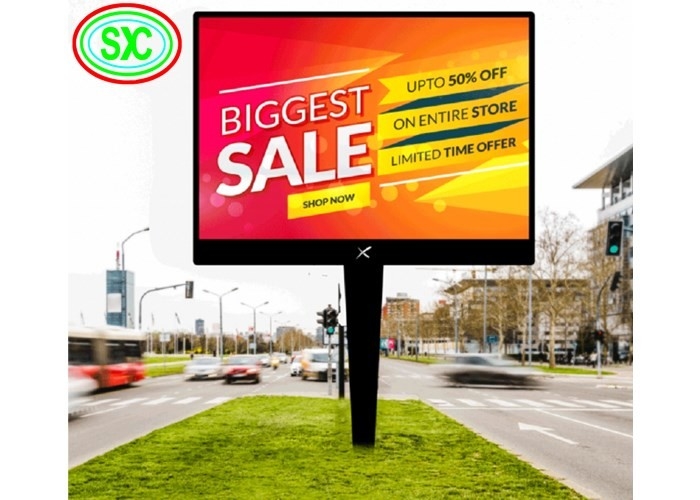

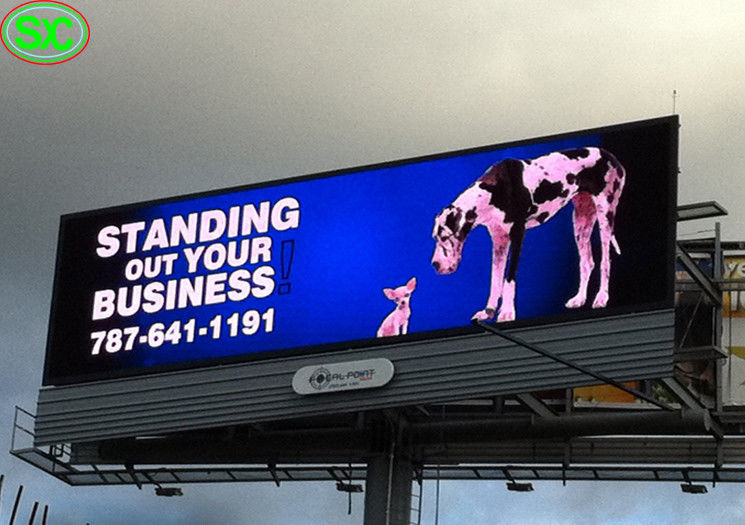

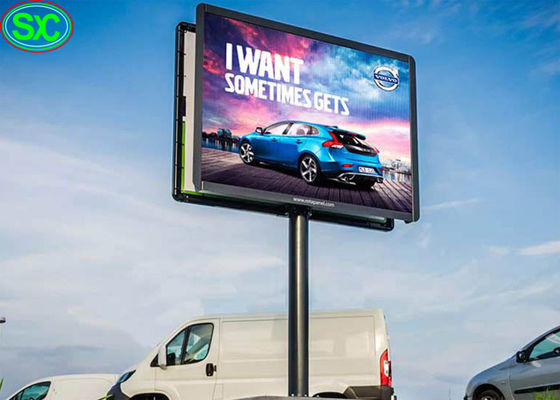

    ♦ Project case

    Advertising Video Outdoor Fixed Led Display Billboard Great Waterproof
