HD P3.91 High Brightness Hanging Led Display Outdoor Aluminum Die Case

HD P3.91 High Brightness Hanging Led Display Outdoor Aluminum Die Case

  • HD P3.91 High Brightness Hanging Led Display Outdoor Aluminum Die Case
  • HD P3.91 High Brightness Hanging Led Display Outdoor Aluminum Die Case
  • HD P3.91 High Brightness Hanging Led Display Outdoor Aluminum Die Case
HD P3.91 High Brightness Hanging Led Display Outdoor Aluminum Die Case
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: SMD P3.91
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Product Name: P3.91 High Brightness Aluminum Die Case Outdoor Hanging LED Display Pixel Configuration ( 3in1 SMD ): 2121
Pixel Pitch(mm): 3.91mm Cabinet Dimensions W*H(mm): 500*500
Pixel Density Per Sqm(Pixels): 65410 Driving Type(scan): 1/16
High Light:

led information display

,

full color led screen

HD P3.91 High Brightness Hanging Led Display Outdoor Aluminum Die Case



Advantages:



1. High resolution led video wall an amazing element for fashion show and international conference.



2. Super slim depth:It is feature with only 50mm thickness of display board and sylish aluminum frame design.


3. High strength: Die-casting aluminum materials plate well improves heat dissiation and extraordinarily maintains ideal lifespan.


4. Advanced R&D technology and reliable components ensure its outstanding performance of high grey scale & refresh rate.



Product specification

indoor  SMD P3.91
Lamp size 2121
Resolution/mm 3.91
Pixel configuration RGB  3 in 1
Pixel density/pixels/m² 65410/m²
Module resolution 64*64
Module size/mm 250*250
View distance ≥2m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >7000cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 14 bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode Constant driving current
Scanning mode 1/8
Frame rate 60Hz
Refresh frequency >1800Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡ <1000W
Average power:/㎡ <300W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%



Products overviews

Items Indoor Led display:
P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10
Outdoor Led display:
P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25
Material steel,aluminum ,die casting aluminum
Payment
terms
30% deposit before production, 70% balance before shipping
T/T
Western Union
Packing: Standard Export Carton with fully Polyfoam or Pearl Wool
Flight case;
Anti-shaking wooden case
Shipping: 5 to 7 working days upon receiving deposit payment
After-Sales-Service: Lifetime with professional engineer support for free.
Within 5 year, supply spare parts for free if has quality problem
( not by man-made damage)
Using Range Shopping mall,bank,bus station, train station,
center of downtown, airport, school, factory, bus, taxi,and so on.



 Production process:

1) Incoming Inspection→2) SMD→3) Plug-in

→4) Wave Soldering→5) After Welding→6) Testing

→7) Semi Finished Aging→8) Module Assembly

→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing



Packaging and shipping

Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.



Why choose us:

Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.



Detail images

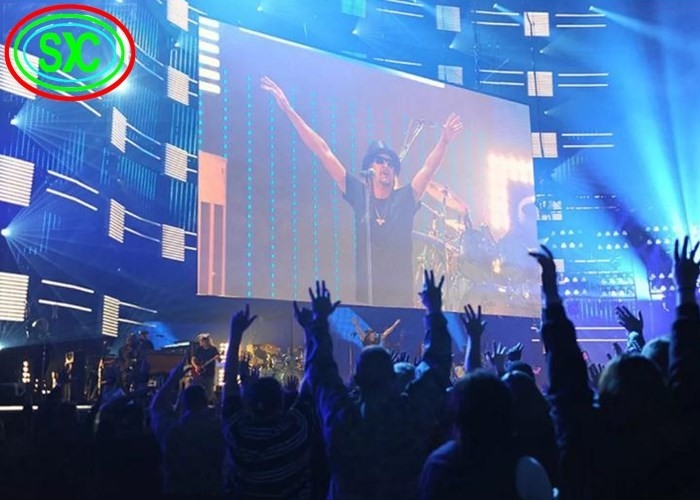

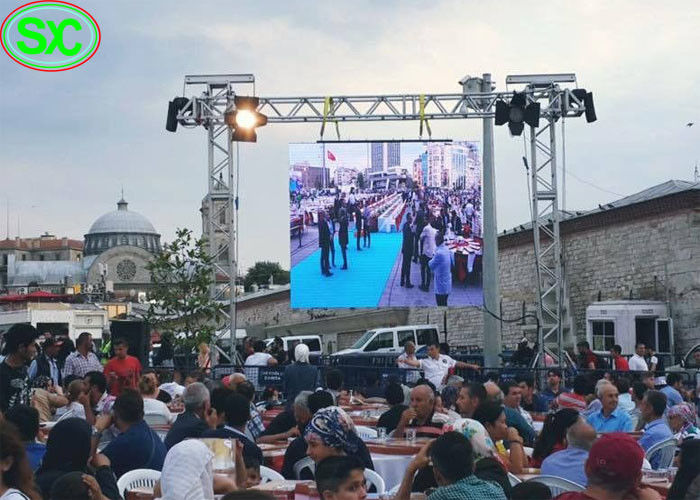

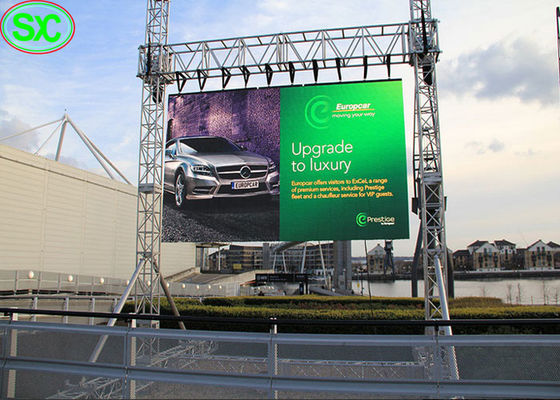

HD P3.91 High Brightness Hanging Led Display Outdoor Aluminum Die Case 0





Our team will be forever here to offer you full supports !!!
