Place of Origin: | CHINA |
Brand Name: | SCXK |
Certification: | CE/ROHS/FCC/ISO/UL |
Model Number: | P8 |
Minimum Order Quantity: | 1 sqm |
---|---|
Price: | negotiation |
Packaging Details: | flight case, plywood case, you choose what you like. |
Delivery Time: | 7-10 working days |
Payment Terms: | T/T, Western Union, MoneyGram, L/C, D/A, D/P |
Supply Ability: | 5000sqm per month |
Resolution: | 8mm | Pixel Configuration: | 1R1G1B |
---|---|---|---|
Pixels: | 40*20dots | Pixel Density: | 15625/m2 |
Module Size: | 320*160mm | Cabinet Size: | 640*640mm |
Driving Mode: | 1/4 Scaning | ||
Highlight: | led display rgb,rgb led screen |

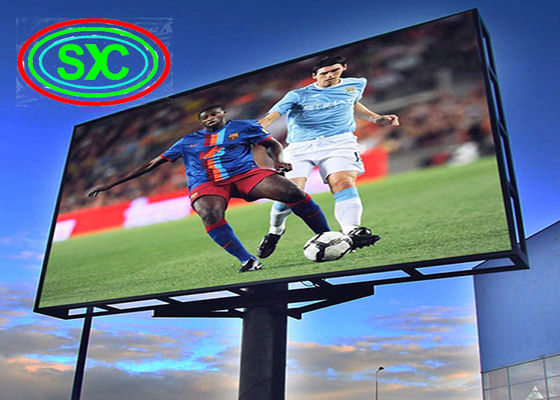

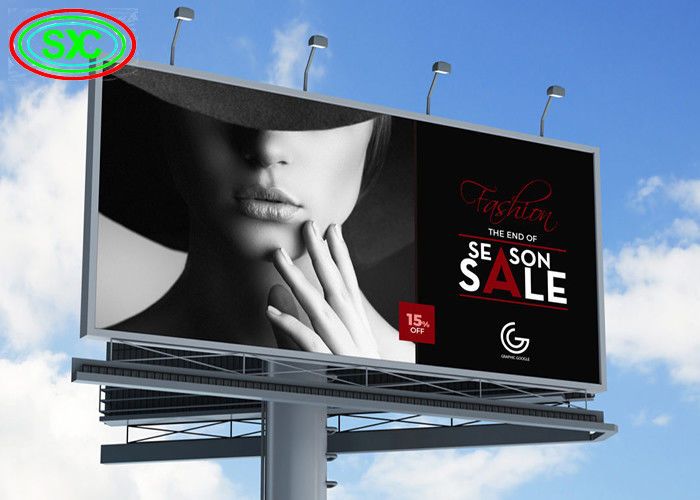

Outdoor Full Color Led Screen Panels 256x128mm P8 Advertising billboard
Product Description
1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.
2. Nice appearance and simple structures.
3. Jointed correctly, being installed & dismounted by one person without tool.
4. Humanized operating interface with breakdown indicator lights, easy to maintain.
5. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.
Applications
--- Outdoor and indoor advertising, digital billboards, advertising companies
--- Sports halls, fields, playgrounds,school church
--- Airports, bus stations and railway passenger terminals.
--- Facades of shopping malls, department stores, banks and car dealerships.
--- Architecture and social projects, information systems in cities.
--- Show-business, concerts, festivals, motor shows and other public events.
Module Parameter
Pixel pitch | 8mm |
Pixel configuration | 1R1G1B |
LED type | 3-in-1 SMD 3528 |
Module size | 256x128mm |
Module resolution | 64x32dots |
Cabinet Parameter
Cabinet size | 1024x1024mm |
Cabinet material | ironed steel cabinet |
Cabinet weight | 36.5kg |
Ingress protection | Front/Rear IP65/IP54 |
Whole Screen Parameter
Pixel density | 15625dots/m² |
Brightness | ≥5500 cd/m² |
Viewing angle | H≥120° V≥120° |
Min.viewing distance | 8m |
Max.power consumption | 800W/m² |
Avg.power consumption | 250 W/m² |
Working voltage | 110~220VAC±15% |
Interface | HUB75 |
Colors | 16.7millon colors |
Gray level | 65536 |
Refresh rate | ≥1920Hz |
MTBF | ≥100,000 hours |
Lifespan | ≥500,000 hours |
Protective function | Over-heat/Over-load /Power-down /Power-leakage /Lightning-protection etc. |
Operating temperature | -10℃ ~ +60℃ |
Storage temperature | -20℃ ~ +60℃ |
Control System Parameter
Video signal (with video processor) | AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP |
Color temperature | Adjustable by software |
Brightness level | 256 levels, automatic adjustment by software |
Control way | Computer, video-synchronous, real-time, off-line, wireless, internet etc. |
Cabinet
Why choose us
Continues Quality
With more than 10 years experience in led display,equipments are updated regularly.What’s more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built effective modular production.We always stick to promote the technical innovation and reduce cost to benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to you.
After-sales:We will track the products usage and then constantly perfect our products.
Company profile
Shenzhen SCXK Electronic Co.,Ltd established in 2009 and has the standard new factory, about 100 employees. We have outstanding R&D department and after-sell service workers, and separately design ability. Our product mainly included led indoor full color display, led outdoor full color display,led indoor full color display, led wireless car usd screen, poster screen,transparent screen etc.It can be used on the shopping mall, bank, bus station, train station, center of downtown, airport,school,factory,bus,taxi and so on. We adapt many methods and very good after-sell service to sell our product all over the world. Whenever and wherever we are, we always take the principle that is: professional makes good quality,good price product market to price product market to provide perfect product and service for our customers.
Certificate
Packaging and shipping
Packing:1.wooden case packing for ironed steel cabinet.
2.flight case packing for die casting aluminum cabinet.
Delivery:Shipping by sea,air or DHL,multiple shipping ways for your choice.
Contact details
Sales representatives: Andy
Skype: Andy liu Wechat:liu15179028073
Tel:+86-15797878183(whatsapp)
E-mail:Andy_he@scxled.cn
Contact Person: jack liu
Tel: +8615797878183
