Place of Origin: | China |
Brand Name: | SCXK |
Certification: | CE/ROHS/FCC/ISO/UL |
Model Number: | SCXK -P4 |
Minimum Order Quantity: | 5sqm |
---|---|
Price: | negotiation |
Packaging Details: | flight case, wooden case, carton, it is up to you. |
Delivery Time: | 7-10 working days after receive your payment |
Payment Terms: | T/T, Western Union, MoneyGram, MoneyGram, D/A, L/C |
Supply Ability: | 5000sqm per month |
Product Name: | Indoor P4 Led Screen | Usage: | Indoor |
---|---|---|---|
Led Type: | SMD2121 | Tube Chip Color: | Full Color |
IP: | IP43 | Cabinet: | Steel Or Aluminum For Options |
High Light: | indoor led display screen,indoor led billboard |

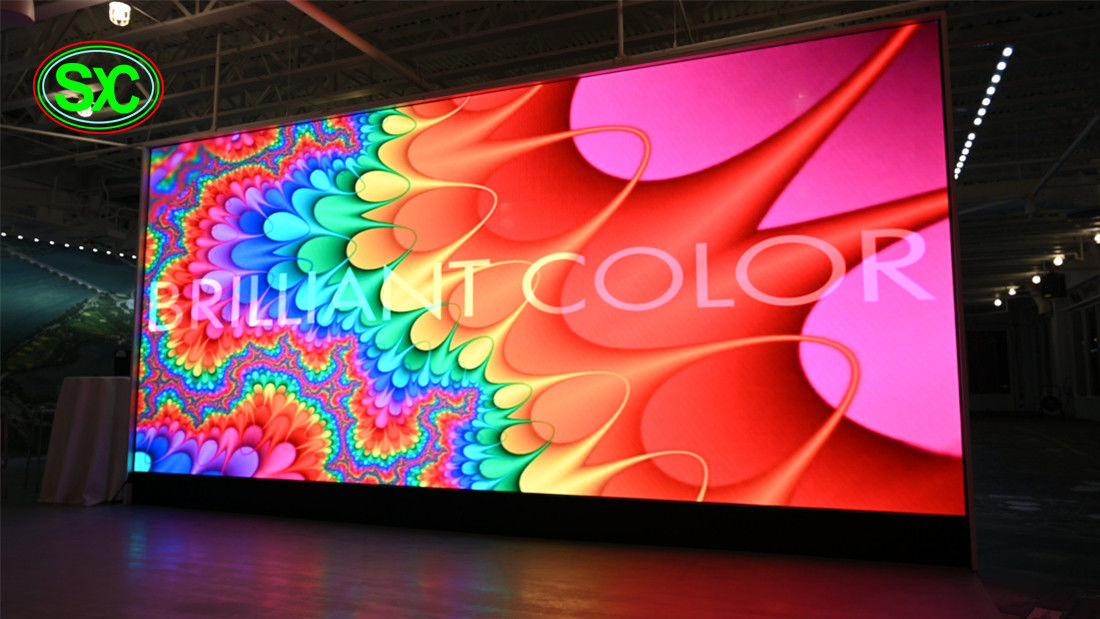

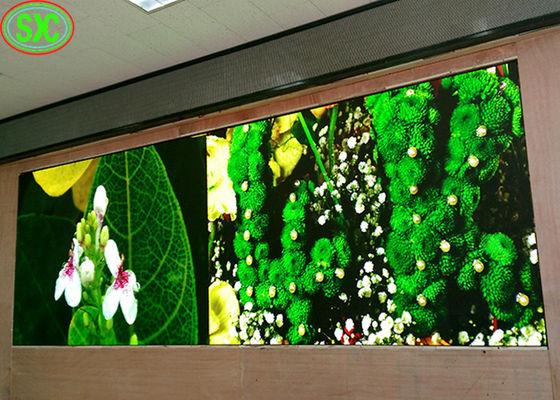

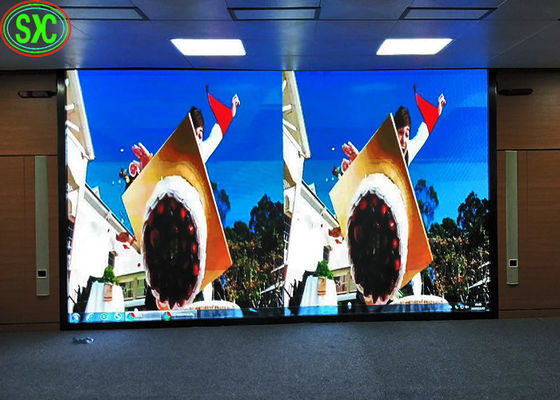

Big P2.5 P3 P3.91 P4 P5 Led Screen Indoor Series Video Wall For Decoration
Shenzhen SCXK Electronic Co.Ltd is a manufacturer which have lead-edge technologies in solving problems of led field.SCXK was established in 2005 Longhua new area,Shenzhen,with a plant area of 10,000 square meters,office stuffs is 300 members,.At the end of 2013,the producing capability was reached up to 5000sq.m per month.It become the leading manufacturer in the LED industry soon.It's one of the fastest growing companies in China.
Features :
P4 Indoor SMD LED Display Module Technical Parameter (T=25°C) | |
Technical Parameter | Parameters Values |
Pixel Pitch | 4mm |
Physical Density | 62500dots |
Pixel Configuration | 1R1G1B |
LED Parameter | R: 82~102mcd ; 621~625nm G: 245~305mcd; 524~528nm B: 45~56mcd; 468~472nm |
LED Encapsulation | SMD 2121Black (Nationstar or kinglight LEDs) |
Module Size | 256*128mm |
Module Resolution | 64*32dots |
Cabinet Size | 768*768mm |
Cabinet Resolution | 192*192dots |
Driving Method | Constant Current |
Scanning Mode | 1/16 scan |
Driving Device | MBI 5124 IC (Standard Configuration) or other High refresh rate driver IC |
Module Working Voltage | DC 5V |
Module Consumption | 18W |
Viewng Angle | 140° |
Frame Frequency | ≥60Hz |
Refresh Frequency | ≥1920Hz |
Equilibrium Brightness | >1400cd/m2 |
Working Environment Temperature | -10°C ~ 60°C |
Working Environment Humidity | 10% ~ 70% RH |
Color Temperature | ≥10000K |
Gray Scale / Color | ≥16.7M color |
Mean Free Error Time | >5000hours |
Change Frame Frequency | ≥ 60Hz |
Life Span | >100000hours |
Lamp Failure Frequency | <0.0001 |
The epistar Led chip. with SMD and DIP Technology .
We adopt the epistar led chip from Taiwan,DIP and SMD led display module will be available
The wire or wireless controll system are available .( 3g/4g and wifi controll will be welcome)
The steer consturction is very stable for led display,and you can purchase from your local market .
Methods for Quality Assurance
a. Aging
100% fully test
Condition: 72 hours with 256 gray leve
b. Vibration Testing
Condition: 3-5 min up and down in 5mm range
Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.
Competitive Advantage:
1. 2 years’ warranty with free repair service
2. 24/7 Hours online Remote Support
3. Solution and PCB design
4. Free factory training
5. On site installation instruction and regular inspection
6, Small order accepted.
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
♦ FAQ
What kind of payment terms you can accept ?
We can accept T/T and Western Union.
What about your Led Display quality ?
Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of
our products continuity.
What is your delivery time ?
Within 7-35 days according to your area and quantity.
Is your LED display competitive ?
Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure
our led display’s competitiveness.
