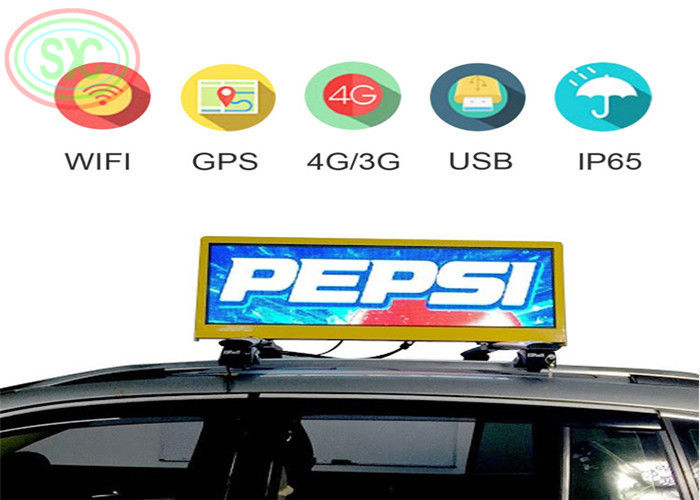

Full color smd outdoor P 10 LED sign for taxi advertising MOQ 10 pcs

Full color smd outdoor P 10 LED sign for taxi advertising MOQ 10 pcs

  • Full color smd outdoor P 10 LED sign for taxi advertising MOQ 10 pcs
  • Full color smd outdoor P 10 LED sign for taxi advertising MOQ 10 pcs
  • Full color smd outdoor P 10 LED sign for taxi advertising MOQ 10 pcs
  • Full color smd outdoor P 10 LED sign for taxi advertising MOQ 10 pcs
  • Full color smd outdoor P 10 LED sign for taxi advertising MOQ 10 pcs
  • Full color smd outdoor P 10 LED sign for taxi advertising MOQ 10 pcs
Full color smd outdoor P 10 LED sign for taxi advertising MOQ 10 pcs
Product Details:
Place of Origin: CHINA
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P10
Payment & Shipping Terms:
Minimum Order Quantity: 1 sqm
Price: negotiation
Packaging Details: wooden case,flight case, you choose you like.
Delivery Time: 7-10 days
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Led Type: P10 Single Red Light Pixel: 10mm
Module Size: 320*160mm Pixel Density: 10000/m2
Resolution: 32*16dots Brightness: ≥3000/m2
Min.view Distance: 10m
High Light:

car led message board

,

car led message display

Full color smd outdoor P 10 LED sign for taxi advertising MOQ 10 pcs





When you buy this, you should pay attention to the following points:

1, Earthquake:

Buy car led display, the most important you should pay attention to is the earthquake effect, which is also a led display, but they are installed at different locations, led strip screen is installed there are not move, it is installed on the taxi or bus,sometimes the car may go bad roads, it requires car led display arrive the seismic performance of 8 at least in order to keeping a long-term.

2, voltage:

Taxis and buses are battery-powered, the use time of battery determines the voltage performance, there will be voltage instability when use a long time, and sometime even collapse or not power supply,

the battery voltage problems on our car led display is a direct impact,the light chips or power burned, the heavy screen paralyzed, and even repaired also loss the possibility of continuing to work in the car, just like where we were injured Even if restored can not like the previous, so it requires our power with the over-voltage protection function, our power supply is 9-33V wide arc voltage, automatically power down lower than 9V Or higher than 33V.

3, Cooling

heat Car screen, especially the rear window advertising screen, many manufacturers are using the iron frame, we all know that the aluminum is cooling, iron frame is hotting. our car screen is used special aluminum, exclusive mold 3.5 cm thickness, beautiful appearance, good heat dissipation and durability; even if a long time will be embroidered iron, aluminum is not ocurred this case.



P10 bus car screen technical parameters:

Display type P10 insert light single red
Pixel diameter 5mm
Pixel pitch 10mm
Screen luminous points 16 (H) X 160 (L)
Display size

160mm(H)X1600mm(L)

Scanning frequency ≥150Hz
Brightness

≥300cd/m2

View angle Horizontal 70 degrees, vertical 45 degrees
Communication method GPRS wireless
Working voltage 8-36V
Operating temperature -20ºC~+70ºC
Relative humidity 10%-95%
Power consumption About 100W, relative to 24V current about 5A
Mean Time Between Failure 10000 hours
Screen shell Aluminum alloy shell, with sufficient mechanical strength
Housing dimensional accuracy error ≤1mm
Process requirements Dustproof, anti-corrosion, at the same time with short circuit, over current, overvoltage, undervoltage protection.


Our advantages

1. OEM service, No MOQ.
2. Easy installation, regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5.Wooden case or flight case, you are the boss.
6.Your reply will be replied within 24 hours.
7. Fast delivery: 7-10 days.



Buying Guides

In order to offer you a suitable solution, please follow the guides bellowing :

1,Star effect or video effect which you need.

2,Dimension (Width and Height)

3,Location of installation. (picture is best)

4,Purpose. ( what are you going to do with the LED Curtain)



After-Sale Service

1. Three year warranty , Lifetime free maintenance.

2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.

3. Customer satisfaction tracking report.

4. Free technician training.

5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on

6. Special service for big project, such as stadium, exhibitions, squares and so on.



Product item

Full color smd outdoor P 10 LED sign for taxi advertising MOQ 10 pcs 0

Full color smd outdoor P 10 LED sign for taxi advertising MOQ 10 pcs 1



Company profile

Full color smd outdoor P 10 LED sign for taxi advertising MOQ 10 pcs 2

Full color smd outdoor P 10 LED sign for taxi advertising MOQ 10 pcs 3





Certificate

Full color smd outdoor P 10 LED sign for taxi advertising MOQ 10 pcs 4



Packaging and shipping

Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.

Full color smd outdoor P 10 LED sign for taxi advertising MOQ 10 pcs 5
