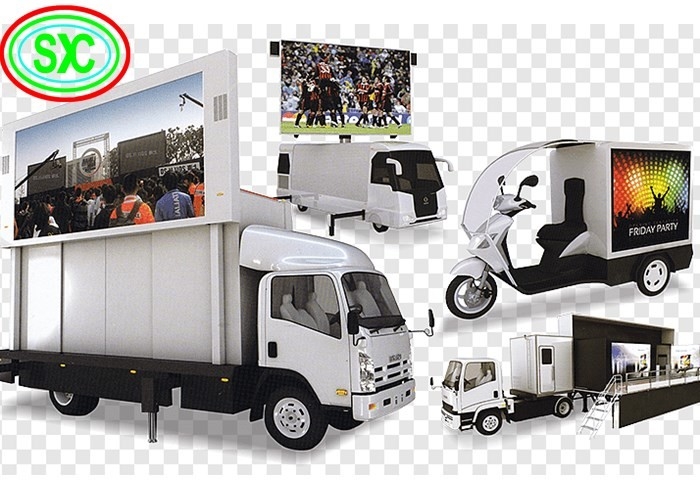

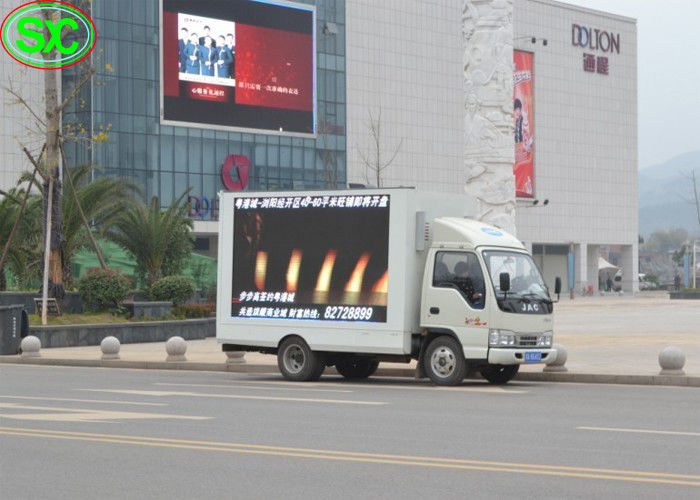

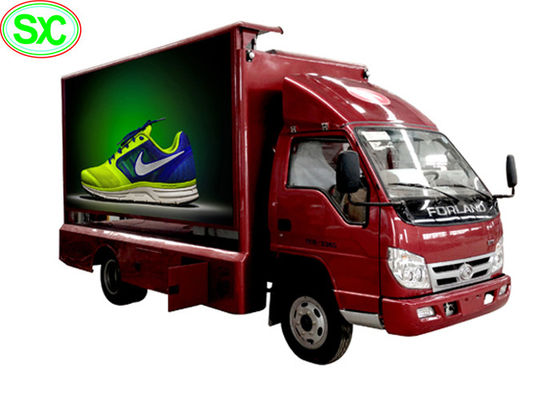

Name: High Definition Mobile Truck LED Display Video , Advertising Truck Led Screen Billboard
Brand: SCXK
SKU: SMD P4
Rating: 4.6 (188 reviews)

Home Products Mobile Truck LED Display

High Definition Mobile Truck LED Display Video , Advertising Truck Led Screen Billboard

Product Details:

Place of Origin:	China
Brand Name:	SCXK
Certification:	CE/ROHS/FCC/ISO/UL
Model Number:	SMD P4

Payment & Shipping Terms:

Minimum Order Quantity:	negotiation
Price:	negotiation
Packaging Details:	flight case, wooden case, carton, it is up to you.
Delivery Time:	7-10 working days after receive your payment
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	5000sqm per month

Contact Now

Detailed Product Description

Product Name:	P4 High Definition Mobile Truck Video LED Advertising Display Billboard	Pitch:	4
LED Type:	SMD3535	Module Size(mm):	256*128mm
Input Voltage:	AC220 V/50HZ Or AC 110V/60HZ	Color:	64g Color(on The Condition Of 4096 Gray Scale)
Highlight:	truck mounted led screen , digital led sign

High Definition Mobile Truck LED Display Video , Advertising Truck Led Screen Billboard

♦ Our service

1)Your inquiry related to our products or price will be replied in 24hrs

2)OEM&ODM,any your customized lightings we can help you to design and put into product

3)Distributoership are offered for your unique design and some our current models

4)Protection of your sales area,ideas of design and all your private information

5)Top Quality+Reasonable Price+Responsible After Service=Successful & Win

♦ Product specification

indoor SMD P4

Lamp size

2121

Resolution/mm

Pixel configuration

RGB 3 in 1

Pixel density/pixels/m²

62500/m²

Module resolution

64x32

Module size/mm

256*128

View distance

≥3m

Single point brightness adjust

Can be added

Single point color adjust

Can be added

White balance brightness

>1800cd/㎡

Color temperature

6500K-9500K

Horizontal view angle

120(degrees)

Vertical view angle

60(degrees)

Signal Process bit

10 or 14 bit

Grey process

1024x1024x1024 16834x16834x16834 65536x65536x65536

Control distances

Internet cable:100m, multimembrane:500m, monofilm:5km

Driving mode

Constant driving current

Scanning mode

1/8

Frame rate

60Hz

Refresh frequency

>1800Hz

Control mode

Computer synchronous

Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point

<1/10000

Working hours

≥72hours

Mean Time Between Failure

>5000hours

Life time

100000hours

Life-all-white(brightness halving)

50000hours

Environment temperature range

Operating temperature range: -20-45℃ Storing temperature range: -30-65℃

Maximum power:/㎡

<1100W

Average power:/㎡

<280W

Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment

WindowsNT,Windows1999,WindowsXP

Luminous point width between centres

Deviation<3%

Brightness uniformity

<10%

Color uniformity(chromaticity coordinate)

±0.003

Power supply request

AC85-264V(50Hz-60Hz)

Contrast

(1000:1)

System protection

Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration

Humidity(working)

working:10-95%

Humidity(storing)

storing:10-95%

Product Overviews

Items	Indoor Led display: P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10 Outdoor Led display: P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25
Material	steel,aluminum ,die casting aluminum
Payment terms	30% deposit before production, 70% balance before shipping
	T/T
	Western Union
Packing:	Standard Export Carton with fully Polyfoam or Pearl Wool
	Flight case;
	Anti-shaking wooden case
Shipping:	5 to 7 working days upon receiving deposit payment
After-Sales-Service:	Lifetime with professional engineer support for free.
After-Sales-Service:	Within 5 year, supply spare parts for free if has quality problem ( not by man-made damage)
Using Range	Shopping mall,bank,bus station, train station, center of downtown, airport, school, factory, bus, taxi,and so on.

♦ Introduction

Shenzhen SCXK electronic company was establieshed in 2005. With more than 10 years experience in led display industry, our clients cover more than 50 countries. We have built good reputation at home and abroad. Welcome for your visiting our factory.

♦ Production process:

1) Incoming Inspection→2) SMD→3) Plug-in

→4) Wave Soldering→5) After Welding→6) Testing

→7) Semi Finished Aging→8) Module Assembly

→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

♦ Packaging and shipping

Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.

♦ Why choose us:

Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.

Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.

Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.

Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.

♦ Methods for Quality Assurance

a. Aging
1) 100% fully test
2) Condition: 72 hours with 256 grey level

b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range

♦ Our project
