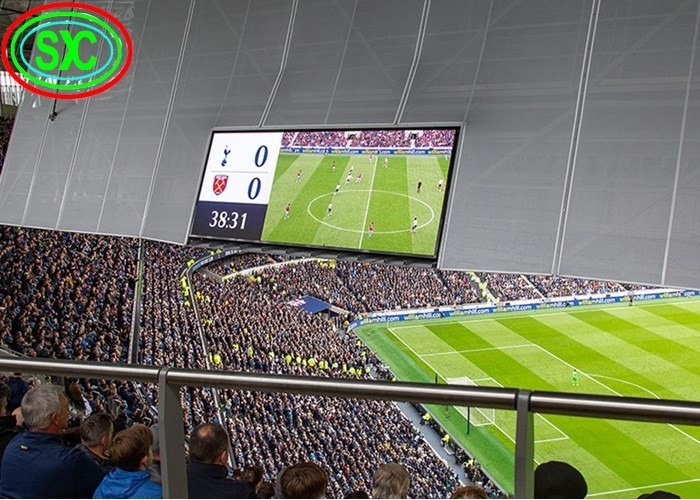

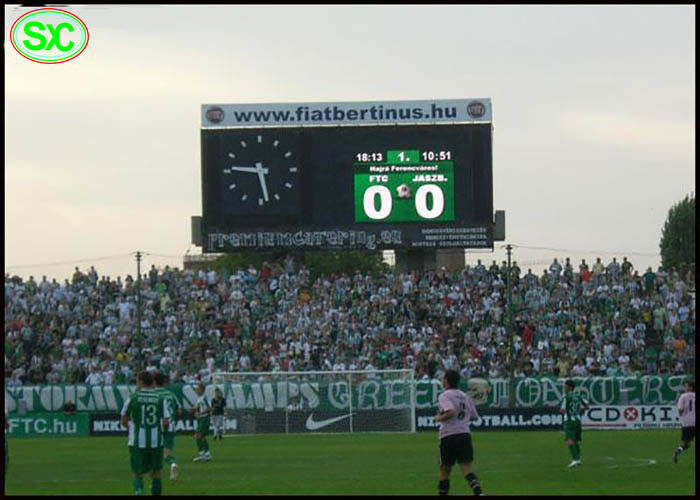

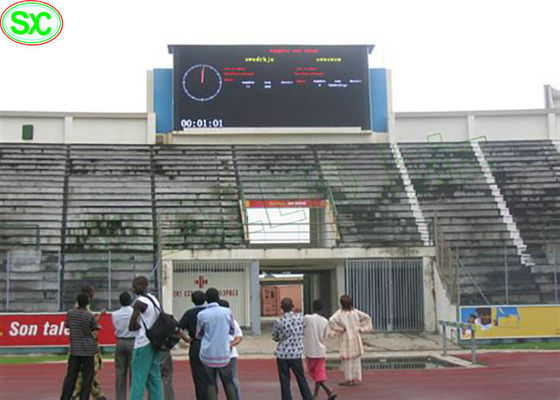

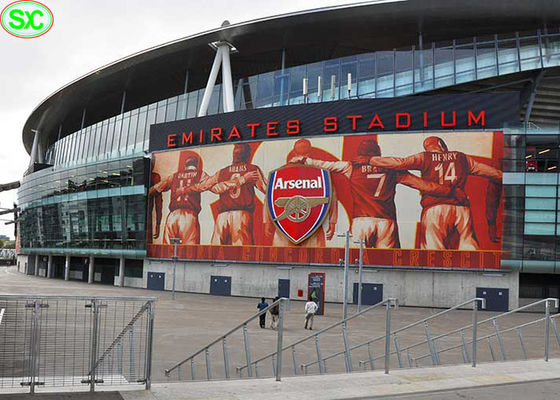

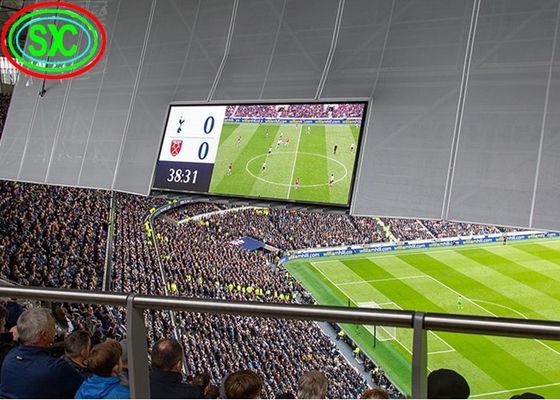

P8 Outdoor Stadium LED Display Board for Sport Advertising with Timing System

P8 Outdoor Stadium LED Display Board for Sport Advertising with Timing System

    • P8 Outdoor Stadium LED Display Board for Sport Advertising with Timing System
    • P8 Outdoor Stadium LED Display Board for Sport Advertising with Timing System
  • P8 Outdoor Stadium LED Display Board for Sport Advertising with Timing System

    Product Details:

    Place of Origin: China
    Brand Name: SCXK
    Certification: CE/ROHS/FCC/ISO/UL
    Model Number: p8

    Payment & Shipping Terms:

    Minimum Order Quantity: negotiation
    Price: negotiation
    Packaging Details: flight case, wooden case, carton, it is up to you.
    Delivery Time: 7-10 working days after receive your payment
    Payment Terms: T/T, Western Union
    Supply Ability: 5000sqm per month
    Contact Now
    Detailed Product Description
    Brand: OEM, ODM Model: P8
    Refresh Rate: About 5000hz Tube Chip Color:: RGB Full Color
    Brightness: About 8000nits Warranty(year): More Than 5 Years

    P8 Outdoor Stadium LED Display Board for Sport Advertising with Timing System



    About our company

    1. SCXK LED, as a professional manufacturer of LED Display and led street light in China, our products have exported to more than 50 countries and made 700 projects all over the world.

    2. We are specialized at providing solutions for commercialadvertising, stage rental and sport led banner.

    3. For the commercial led display, we offer 8 years warranty.

    4. We have subsidiary in USA and close distributor in Finland, Cambodia, South America and Australia and UK. In the future, we will develop more subsidiaries in our sales area.



    ♦ Technical specification



    outdoor  SMD P8
    Resolution/mm 8
    Pixel configuration 1R1G1B
    Pixel density/pixels/m² 15625/m²
    Module resolution 32x16
    Module size/mm 256x128
    View distance 7-500m
    Single point brightness adjust Can be added
    Single point color adjust Can be added
    White balance brightness >8000cd/㎡
    Color temperature 6500K-9500K
    Horizontal view angle 120(degrees)
    Vertical view angle 60(degrees)
    Signal Process bit 10 or 16bit
    Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
    Control distances Internet cable:100m, multimembrane:500m, monofilm:2km
    Driving mode Constant driving current
    Scanning mode (1/4)
    Frame rate 60Hz
    Refresh frequency >4200Hz
    Control mode Computer synchronous
    Brightness adjusted range

    Manual, automatic operation, stepless continuous adjusted

    255 steps. No grey loss

    Out of control point <1/10000
    Working hours ≥72hours
    Mean Time Between Failure >5000hours
    Life time 100000hours
    Life-all-white(brightness halving) 50000hours
    Environment temperature range Operating temperature range: -20-45℃
    Maximum power:/㎡ <950W
    Average power:/㎡ <350W
    Self-check technology

    LED spot self-check, communications check, power check,

    temperature monitor(need customization)

    Remote monitoring

    Remote supervision and control, record potential fault,

    send out warning signs to the operators.(need customization)

    Software environment WindowsNT,Windows1999,WindowsXP
    Luminous point width between centres Deviation<3%
    Brightness uniformity <10%
    Color uniformity(chromaticity coordinate) ±0.003
    Power supply request AC85-264V(50Hz-60Hz)
    Contrast  (1000:1)
    System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
    Humidity(working) working:10-95%
    Humidity(storing) storing:10-95%



    Product overviews
    Items Indoor Led display:
    P1.5 P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10
    Outdoor Led display:
    P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25
    Dance floor led display
    DJ led screen
    Transparent led display
    Material steel,aluminum ,die casting aluminum
    Certificates CE, FCC,RoHS, CCC, UL
    Payment
    terms
    30% deposit before production, 70% balance before shipping
    T/T
    Western Union
    Packing: Standard Export Carton with fully Polyfoam or Pearl Wool
    Flight case;
    Anti-shaking wooden case
    Shipping: 5 to 7 working days upon receiving deposit payment
    After-Sales-Service: Lifetime with professional engineer support for free.
    Within 5 year, supply spare parts for free if has quality problem
    ( not by man-made damage)
    Using Range Shopping mall,bank,bus station, train station,
    center of downtown, airport, school, factory, bus, taxi,and so on.


    ♦ Production process



    1) Incoming Inspection→2)SMD→3)Plug-in

    →4) Wave Soldering→5)After Welding→6)Testing

    →7) Semi Finished Aging→8)Module Assembly

    →9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing



    ♦ Packaging and shipping



    Wooden case or flight case package are available.

    Shipping by sea,air or DHL,multiple shipping ways for your choice.



    ♦ Applications



     --- Outdoor and indoor advertising, digital billboards, advertising companies
     --- Sports halls, fields, playgrounds,school church
     --- Airports, bus stations and railway passenger terminals.
     --- Facades of shopping malls, department stores, banks and car dealerships.
     --- Architecture and social projects, information systems in cities.
     --- Show-business, concerts, festivals, motor shows and other public events.



    ♦ Why choose us



    Continues Quality

    With more than 10 years experience in led display producing,equipments are updated regularly.What’s

    more,unique standardized and module production ensure our products continuous quality.



    Competitive Price

    With large scale production capacity and professional production technology,our company have built

    effective modular production.We always stick to promote the technical innovation and reduce cost to

    benefit customers.



    Fast Delivery

    Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

    inventory will be used to maintain your uninterrupted supply of the products.



    Perfect Service

    Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

    you.

    After-sales:We will track the products usage and then constantly perfect our products.



    P8 Outdoor Stadium LED Display Board for Sport Advertising with Timing System
