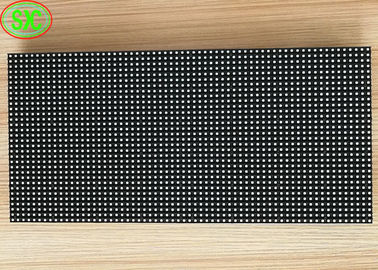

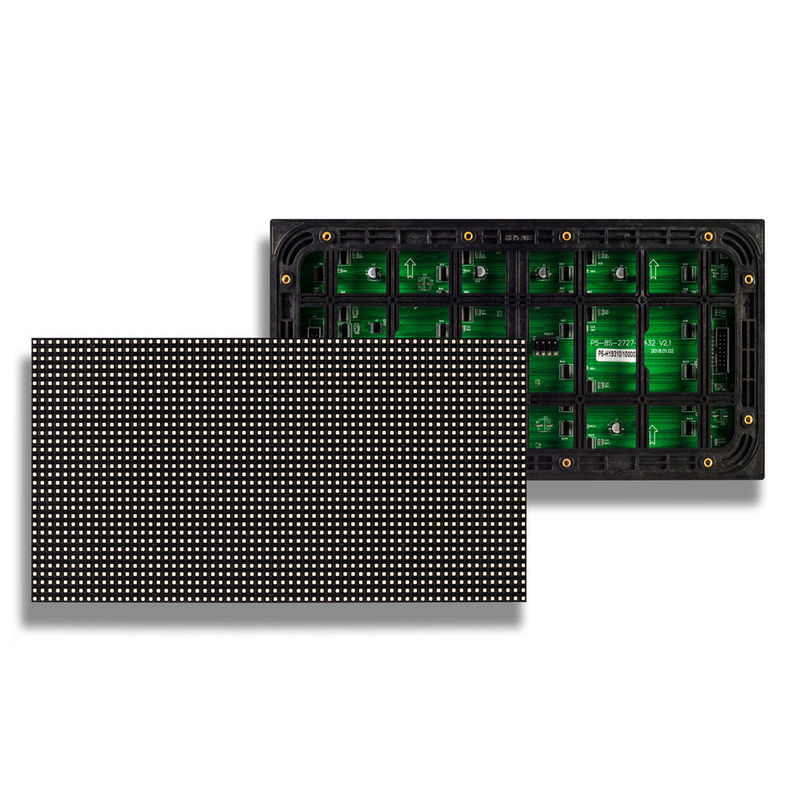

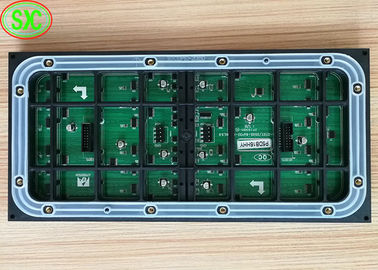

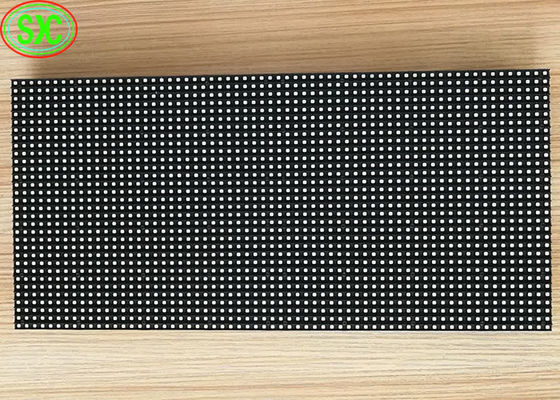

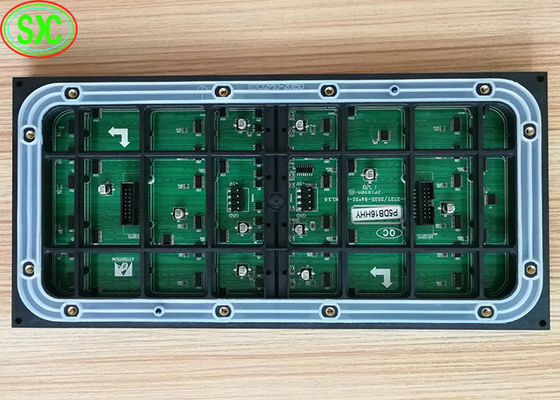

320x160 LED Display Module High Definition , Outdoor p5 flexible led display module

320x160 LED Display Module High Definition , Outdoor p5 flexible led display module

    • 320x160 LED Display Module High Definition , Outdoor p5 flexible led display module
    • 320x160 LED Display Module High Definition , Outdoor p5 flexible led display module
  • 320x160 LED Display Module High Definition , Outdoor p5 flexible led display module

    Product Details:

    Place of Origin: MADE IN CHINA
    Brand Name: SCXK
    Certification: CE/ROHS/FCC/ISO/UL
    Model Number: SCXK-P5 outdoor

    Payment & Shipping Terms:

    Minimum Order Quantity: 1sqm
    Price: negotiation
    Packaging Details: flight case, wooden case, carton, it is up to you.
    Delivery Time: 7-10 working days after receive your payment
    Payment Terms: T/T, Western Union
    Supply Ability: 5000sqm per month
    Contact Now
    Detailed Product Description
    Product Name: P5 Module Module Size: 320*160mm
    Tube Chip Color: Full Color Pixel Pitch: 5mm
    Resolution: 64mm*32mm Certificate: CE FCC SGS ROSH ISO9001

    320x160 LED Display Module High Definition , Outdoor p5 flexible led display module


    Established in 2005 in Shenzhen, SCXK  has fully dedicated itself to the design and manufacturing of quality LED displays for 12 years. over the past decade, SCXK has been one of the tier-1 LED display manufactures in China and Asia-Pacific market, which laid a solid foundation for our international business expansion.

    SCXK is looking forward to working with customers all over the world and contributing to your success with its reliable product and service.



    Main Technical Parameters for Indoor Series
    Model SGI-P5
    Pixel Pitch(mm) 5
    Physical Density(dot/m²) 40,000
    LED Configuration 1R1G1B
    LED Type SMD3528
    Model Size(mm*mm) 320 x 160
    Module Resolution( W*H) 64 x 32
    Drive Mode 1/8 scan
    Brightness(cd/m²) ≥1600
    Max Power Consumption(W/ m²) 800
    Average Power Consumption( W/m²) 280
    Cabinet Size(mm*mm) 640*640
    Cabinet Resolution(W*H) 128 x 128
    Mini. View Distance (m) 5
    View Angle(deg.) Horizontal≥120℃,Vertical≥120℃
    Grey Scale ≥16 bits
    Refresh Rate( Hz) ≥960
    MTBF >10,000 hours
    Life Span ≥100,000 hours
    Working Input Voltage AC220V/50Hz or AC110V/60Hz
    Module Display Brightness Uniformity <2%
    Earth Leakage Current <3mA
    Temperature-operating -25℃~45℃
    Humidity-operating 10%~95%
    Operating System Windows98/me/2000/NT/XP/W8/Vista/W7

    320x160 LED Display Module High Definition , Outdoor p5 flexible led display module



    Packing & delivery:



    1. LED display cabinet Packing: For indoor fixed installatin project, cellular carton or plywood case

    packing is recommended to save cost.

    2. But if the led display cabinet is uesed for rental,then flight case

    is the best choice,as it is more convenient and easy for transportation and dismantling.

    3. Delivery lead time: 6-15 working days after order being confirmed



    Services

    1.Your inquiry related to our products or price will be replied in 12hrs

    2. OEM & ODM any your customized lightings we can help you to design and put into product

    3. Distributorship are offered for your unique design and some our current models

    4. Protection of your sales area ideas of design and all your private information

    5. Best cost performance and perfect service before and after sales





    FAQ


    Q1: Why choose us:



    A1.1: Company Info: Canbest Opto-electronics have been in LED industry for almost 10 years, focusing on the led display, and have completed more than 2000 projects home and aboard, thus we are fully experienced to provide led display solutions. Canbest are focusing and professional!



    A1.2: R&D Team: Canbest Opto-electronics have the R&D team with more than 8 years’ experience, and launch new products according to the customers ‘needs every year or even each quarter.



    A1.3: Products: there are indoor and outdoor fixed led display screen, indoor and outdoor rental led display, creative led display such as advertising led poster, soft led display and led curtain mesh, they are widely used for shopping mall, stage, events, conference room, church etc. meeting the demands of message display and delivery.



    A1.4: Manufacturing: Canbest Opto-electronics have strict QC control and manufacturing management process, which enable our products high quality and stable working performance.



    A1.5:Service: Canbest Opto-electronics have specialized technicians before and after sales. And strong marketing team to offer you the solutions 7/24 anytime.



    Q2: What’s your payment term? How long it takes to delivery?



    A3: T/T and L/C, 30% deposit in advance, and balance 70% before shipment.



    Q3: What is the control system?



    A3: We use Nova and Linsn control system.



    Q4: How can you ensure your led display product quality?



    A4: Canbest Opto-electronics have been enrolled in led display industry for almost 10 years, and professional R&D team and skilled QC team with standard process to assure quality products.
