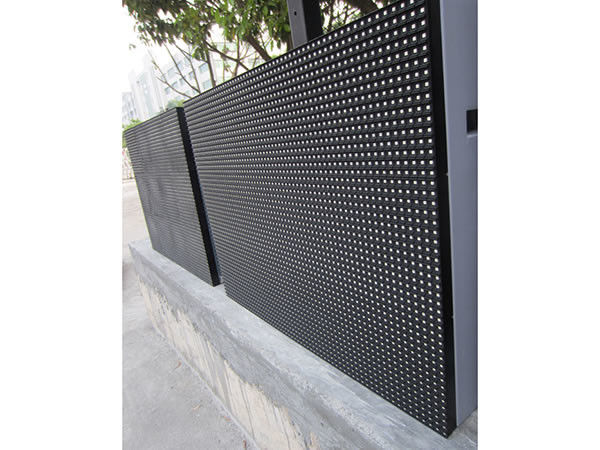

P10 SMD3535 Outdoor Full Color LED Display , Outdoor Led Billboards 1/4 Scan

P10 SMD3535 Outdoor Full Color LED Display , Outdoor Led Billboards 1/4 Scan

  • P10 SMD3535 Outdoor Full Color LED Display , Outdoor Led Billboards 1/4 Scan
  • P10 SMD3535 Outdoor Full Color LED Display , Outdoor Led Billboards 1/4 Scan
  • P10 SMD3535 Outdoor Full Color LED Display , Outdoor Led Billboards 1/4 Scan
P10 SMD3535 Outdoor Full Color LED Display , Outdoor Led Billboards 1/4 Scan
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P10
Payment & Shipping Terms:
Minimum Order Quantity: 5sqm
Price: by negotiation
Packaging Details: At your option - flight case, wooden case or carton
Delivery Time: 10 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description

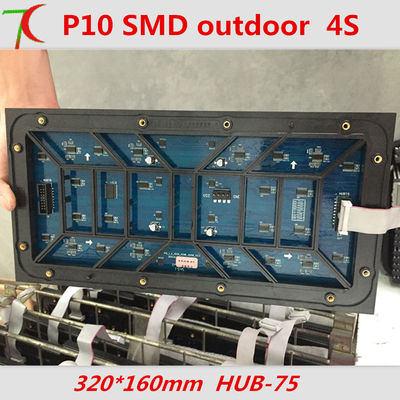

Module Size: 320*160 Scan: 1/4

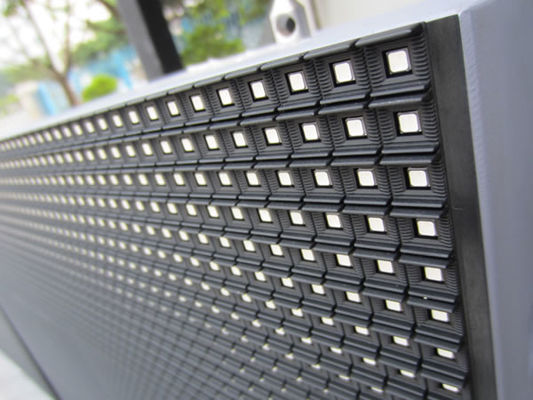

LED Shape&size: 3mm Smd3535 Cabinet Size: 640*640
Brightness: 5500 Max Power Consumption: 600
Avarage Power Consumption: 200 Min.View Distance: 10m
High Light:

full color led signs outdoor

,

outdoor full color led screen

P10 SMD3535 Outdoor Full Color LED Display , Outdoor Led Billboards



Product Name: P10 Outdoor Full Color LED Display





P10 Integrated 3 in 1 Full Color Indoor LED Screen Series
Full color indoor P10 LED screens with integrated 3in1 SMD full color LED block modules as unit is another deeper revolutionary development in the LED screens industry. It shows a super fine and high quality picture on the LED screens and has a much wider viewing angle than the full color dip lamps LED screens. It rejects the deficiencies of the traditional LED lamp outdoor display screens.

The 10mm 3in1 SMD has been the outmost highest pitch of conventional LED lamp display.

LED Screen Name: P10 Indoor Integrated 3in1 Full Color SMD Series
LED Class: Integrated 3in1 SMD Series
Pixel pitch: 10mm
Cabinet Size: 960mm(w) X 960mm(h)

LED Screen Advantages:
High resolution of indoor full color LED display;
Integrated encapsulation is blessed with higher reliability;
Good color mixture from far or very near distance;
Good color consistency transparent picture;
Good picture uniformity;
Wide viewing angle;
Higher contrast ratio;
The most economical and rational solution for 3 in 1 full color technology.

Pixel Pitch: 10 mm
Cabinet: 960mm×960mm
Die-casting steel/aluminum alloy

P10 SMD3535 Outdoor Full Color LED Display , Outdoor Led Billboards 1/4 Scan 0





LED Screen P10 3in1 SMD Specifications

Below you can find the technical specification of the P10 Indoor LED Screen 3in1 SMD.


Parameters

 Indoor LED Screen P10 3in1 SMD

Pixel Pitch

10mm

Working Voltage

AC220V±10%; AC110V±10%

Power Consumption

Max 300W/sqm

Average 190W/sqm

LED Brand

Epistar LED Chips

Maximum Brightness

> 1,400 cd/m²

Pixel Configuration

1R1G1B

Pixel Size

5.0 mm (circle)

Pixel Density

10,000 Pixels/m²

Drive Mode

1/8 or 1/4 Scanning

Grade Level

RGB 4096 grade/each

Best Viewing Distance

<8m ~ >150m

(26ft ~ >492ft)

Viewing Angle

Horizontally >160° / Vertically >130°

Screen Lifetime

≥ 100,000 hours

Driving IC

MBI5024

Refresh Frequency

≥ 400HZ/s

(1,000+ HZ/s available)

Change Frame Frequency

≥ 60Hz

Protection Level

IP20

Control System ¹

Simple LED Video Control System

or Advanced LED Video Processor

Ambient Temperature

-10°C ~ +45°C

(-14°F ~ 113°F)

Relative Humidity

10%~90%

Screen Weight

Steel: ≤ 55Kg/cabinet (121 Lbs)

Aluminum: ≤ 50Kg/cabinet (110 Lbs)

Input Signal

RF S-Video RGB RGBHV

YUVYC, etc.

Brightness Adjustment ²

256 levels of each color (RGB) can be adjusted manually and

8 levels of each color can be adjusted automatically.

LED Module Size

160mm x 160mm (6.3″ X 6.3″)

(16 pixels x 16 pixels)

LED Cabinet Size

960mm X 960mm (38″ X 38″)

(96 pixels x 96 pixels)

Cabinet Material

Steel or Aluminum

Package Material

Wooden Case

Warranty ³

3 Years



  1. WIFI/LAN/WAN/3G/WIMAX control system available upon request.

  2. Intelligent multifunctional card available with automatic brightness sensor to save energy including outside temperature sensor.

  3. Two years warranty extension program available.



Info:



Packaging:
1:Flight Case(5 cabinets in one case)
Gross Weight:150KG
Size:1010mm*560mm*1175mm
2:Wooden case(5 cabinets in one case)
Gross Weight:180KG
Size:1120mm*585mm*930mm

Our Services:
Buying Guides
In order to offer you a suitable solution,pleasefollow the guides belowing:
1, star effect or video effect which you need.
2,Dimension (Width and Height)
3,Location of installation. (picture is best)
4,Purpose. ( what are you going to do with the LED Curtain)

After-Sale Service
1. One year warranty , Lifetime free maintenance.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on
6. Special service for big project, such as stadium, exhibitions, squares and so on.

Company Information
Shenzhen SCXK Electronics Co.,Ltd has the standard new factory,and about 100 employees.
We have outstanding R&D department and after-sell service workers,and separately design ability.
Our product mainly included led single dual color display,led indoor full color display;led outdoor full color display,led wireless car used screen etc.It can be used on the shopping more,bank,bus station,train station,Center of downtown,airport,school,factory,bus,taxi and son on.
We adapt many methods and very good after-sell service to sell our product all over the world.
Whenever and wherever we are,we always take the principle that is:professional makes good quality,good price product market to provide perfect product and service for our customers.

FAQ:
1.Q:Are you a factory or trading company?
A:We are a factory,located in Dalang,Longhua District .

2.Q:What kind of payment terms you accept?
A:We accept T/T,Western Union,MoneyGram etc.

3.Q:What's packaging?
A:1.Flight case packaging
2.Wooden case packaging
3. 36pcs in on
