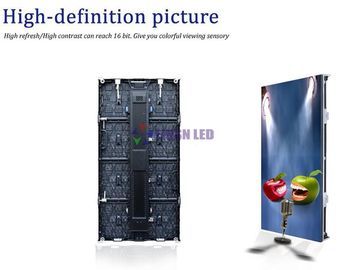

P4.81 Outdoor Full Color LED Display Light Weight Seamless Aluminum Cabinet
Feature:
* Pitch 4.81mm
* Light weight: one person is able to carry one cabinet easily, very convenient in assembly and transport.
* Urtra Thin: Depth of the cabinet is 90mm only,Save space for both the application site and transportation.
* Precise Die-cast Aluminum Cabinet: seamless assembly;
* Easy to maintain;
* Removable center cabinet;
* Cabinet weight only 12kg and 6kg
* Outdoor Application
500mm*500mm 500mm*1000mm
P4.81mm Outdoor Rental LED Display Specifications:
|
|
| Technique | SMD |
| Pixel structure | 1R1G1B 3in1 |
| Pixel pitch | 4.81mm |
| Pixel density | 43,222 dots |
| Luminance | 6,500cd |
| Module dimension | 250mm(W) * 250mm(H) |
| Module resolution | 52 pixel(W) * 52pixel mm(H) |
| Cabinet dimension | 500mm * 500mm, 500mmx1000mm |
| Cabinet resolution | 104* 104 dots, 104*208 dots |
| Cabinet area | 0.25sq. meter, 0.5sqm |
| Optimal visual distance | >4.81m |
| Visual angel | 140 degree (H/V) |
| Max power consumption | ≤1000w /m2 |
| Average power consumption | ≤550w /m2 |
| Brightness adjustment | Adjust according to the environment |
| brightness software (0%-100%adjustable) | |
| Gray scale | point by point 4096 gray grade levels of |
| each color, 16 bits γ correction available | |
| Drive mode | 1/16 dynamic scan, constant current |
| Frame frequency | ≥60HZ |
| Refresh frequency | ≥1920HZ |
| Input voltage | AC 110~240 volts |
| Operation temperature | - 40℃~ +60℃ |
| Operation humidity | 10%~90% |
| Input signal | video, s-videl, RGB digital signal etc. |
| Inout signal | S-video, RF, RGB, Yuv, YC, composite… |
| Control system | DVI card + master control card + receiver card |
| MTBF | >5000 hrs |
| Life span (50% brightness) | 100, 000 hrs |
| Malfunction dot rate | 1/10000 |
| Ingress protection rate | IP65-outdoor waterproof |
| Cabinet material | Epoxy paint coated, aluminum / iron |
| Application: | Rental / Permanent installation available |
Packaging:
1:Flight Case(5 cabinets in one case)
Gross Weight:150KG
Size:1010mm*560mm*1175mm
2:Wooden case(5 cabinets in one case)
Gross Weight:180KG
Size:1120mm*585mm*930mm
Our Services:
Buying Guides
In order to offer you a suitable solution,pleasefollow the guides belowing:
1, star effect or video effect which you need.
2,Dimension (Width and Height)
3,Location of installation. (picture is best)
4,Purpose. ( what are you going to do with the LED Curtain)
After-Sale Service
1. One year warranty , Lifetime free maintenance.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on
6. Special service for big project, such as stadium, exhibitions, squares and so on.
Company Information
Shenzhen SCXK Electronics Co.,Ltd has the standard new factory,and about 100 employees.
We have outstanding R&D department and after-sell service workers,and separately design ability.
Our product mainly included led single dual color display,led indoor full color display;led outdoor full color display,led wireless car used screen etc.It can be used on the shopping more,bank,bus station,train station,Center of downtown,airport,school,factory,bus,taxi and son on.
We adapt many methods and very good after-sell service to sell our product all over the world.
Whenever and wherever we are,we always take the principle that is:professional makes good quality,good price product market to provide perfect product and service for our customers.
FAQ:
1.Q:Are you a factory or trading company?
A:We are a factory,located in Dalang,Longhua District .
2.Q:What kind of payment terms you accept?
A:We accept T/T,Western Union,MoneyGram etc.
3.Q:What's packaging?
A:1.Flight case packaging
2.Wooden case packaging
3. 36pcs in on
