Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | P5 |
| Minimum Order Quantity: | 5sqm |
|---|---|
| Price: | by negotiation |
| Packaging Details: | At your option - flight case, wooden case or carton |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000sqm per month |
| Module Size: | 192*192 | Brightness: | 1200 |
|---|---|---|---|
| Scan: | 1/32 And 1/16 | LED Shape&size: | 2mm Smd2121 |
| Cabinet Size: | 576*576 | Max Power Consumption: | 900 |
| Avarage Power Consumption: | 300 | Min.View Distance: | 3m |
| High Light: | led full color screen,indoor led display screen |
||
P3 Indoor Full Color LED Display
Energy Saving Indoor Full Color LED Display SMD2121 Dust Proof Antistatic
P3mm Indoor LED Display Features:
1) Wide viewing angle: The horizontal and vertical viewing angles are so wide that it is suitable for the environment of wide Horizontal.
2) High contrast ,High refresh rate and High brightness that the content on the display remains clearly visible under direct sunlight without any delay, smear phenomenon.
3) The brightness can be adjustable to meet the need of changing requirement of customer in environment.
4) Energy saving and environment protection, antistatic, dust-proof, good heat dissipation, cost-effective .
5) High reliability: using distributed scanning technology and module design technology that make higher reliability and stability.
6) Favorable effect: using dot to dot calibration technology makes the image clearer and the layering stronger.
7) Steady and reliable system, with strong anti-interference ability and long service life that can continually work for over 24 hours,and it’s easy to operate the system.
P3mm LED Video Wall Specifications:
| Pixel Information | Pixel Pitch | 3mm |
| Technology | SMD 3 in 1 | |
| Pixel Density | 111111 Pixels/m2 | |
| Pixel Configuration | SMD2121 | |

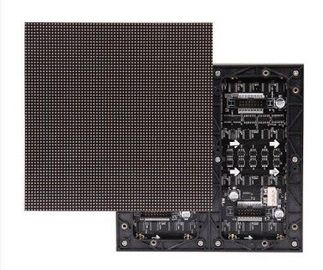

| LED Module | Module Size | 192 mm (Width) × 96 mm(Height) |
| Module Resolution | 64 pixels(Width) × 32 pixels(Height) | |
| LED Cabinet | Cabinet Size | 576x576mm/768x768mm/960x960mm are avaliable |
| Cabinet Weight | 50kg/m2 | |
| Cabinet Material | Steel or aluminum | |
| Power | Input Voltage | 100-240V AC, 50/60Hz |
| Max Power Consumption | 800 Watt/m2 | |
| Avg. Power Consumption | 400 Watt/m2 | |
| Viewing | White Balance |
|
| X= 0.33 Y= 0.33 5600°K(Adjustable up to 9000°K) | ||
|
|
||
| Brightness | ≥1200cd/m2 | |
| Brightness Uniformity | Luminance Discrepancy < 5% | |
| Colors | 16777216 | |
| Grey Scale(Level) | 4096 | |
| Best Viewing Distance | 3m-30m | |
| Best Viewing Angle | Horizontal:160°,Vertical:160° | |
| Ambint Conditions | Temperature Range | Storage:-40deg. to +85deg.; Working:-20deg. to +60deg |
| Operating Humidity | 10%90%RH | |
| Ingression Protection Grade | IP34 | |
| Processing | Scanning Mode | 1/16 Scan |
| Refresh Frequency | 180HZ-600HZ, Adjustable | |
| Signal Input | DVI, Composite Video for Live Video | |
| Supported Networking | Through LAN/WAN, RS 232/RS485 | |
|
|
PC based | |
| Other | Life Span | 50,000 - 100,000 Hours |
| Software | Linsn |
Packaging:
1:Flight Case(5 cabinets in one case)
Gross Weight:150KG
Size:1010mm*560mm*1175mm
2:Wooden case(5 cabinets in one case)
Gross Weight:180KG
Size:1120mm*585mm*930mm
Our Services:
Buying Guides
In order to offer you a suitable solution,pleasefollow the guides belowing:
1, star effect or video effect which you need.
2,Dimension (Width and Height)
3,Location of installation. (picture is best)
4,Purpose. ( what are you going to do with the LED Curtain)
After-Sale Service
1. One year warranty , Lifetime free maintenance.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on
6. Special service for big project, such as stadium, exhibitions, squares and so on.
Company Information
Shenzhen SCXK Electronics Co.,Ltd has the standard new factory,and about 100 employees.
We have outstanding R&D department and after-sell service workers,and separately design ability.
Our product mainly included led single dual color display,led indoor full color display;led outdoor full color display,led wireless car used screen etc.It can be used on the shopping more,bank,bus station,train station,Center of downtown,airport,school,factory,bus,taxi and son on.
We adapt many methods and very good after-sell service to sell our product all over the world.
Whenever and wherever we are,we always take the principle that is:professional makes good quality,good price product market to provide perfect product and service for our customers.
FAQ:
1.Q:Are you a factory or trading company?
A:We are a factory,located in Dalang,Longhua District .
2.Q:What kind of payment terms you accept?
A:We accept T/T,Western Union,MoneyGram etc.
3.Q:What's packaging?
A:1.Flight case packaging
2.Wooden case packaging
3. 36pcs in on
Your special wishes and requirements for the product will be carefully considered.
We are open to counter offers of cooperation
Contact Person: maku
Tel: +8613590361707
