P6 Outdoor Full Color SMD LED Die-Cast Aluminum Screen 1R1G1B 8000 Nits

P6 Outdoor Full Color SMD LED Die-Cast Aluminum Screen 1R1G1B 8000 Nits

P6 Outdoor Full Color SMD LED Die-Cast Aluminum Screen 1R1G1B 8000 Nits
P6 Outdoor Full Color SMD LED Die-Cast Aluminum Screen 1R1G1B 8000 Nits
P6 Outdoor Full Color SMD LED Die-Cast Aluminum Screen 1R1G1B 8000 Nits
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE,ROHS ,FCC,UL
Model Number: SCXK-P6
Payment & Shipping Terms:
Minimum Order Quantity: 1sqm can be available
Price: negotiation
Packaging Details: the led display can be packaged with wooden box,paper box,flight case
Delivery Time: 5-8days
Payment Terms: L/C, T/T, Western Union
Contact Now
Detailed Product Description
Material: Super Thin Iron And Steel Cabinet Color: Full Color
Pixel Density: 27777dots/sqm Application: SMD LED Screen
Warranty: 3 Years Module Size: 192mm X192mm
Brightness: 8000nits Name: P6 Smd Led Screen
Highlight:

led display smd

,

outdoor smd led display

P6 Outdoor SMD LED Screen Full Colour Led Display 1R1G1B 8000 Nits

Quick details

We use various customized light sources such as Taiwan LeiJing chip, GuoXing, WangXing, etc. for higher clarity and brightness (We still provide you with LED display modules and spare parts, which you can assemble in your country, which will help you save transportation cost and customization cost) (Iron Cabinet LED Display is very cheap and cost-effective. They are very secure and suitable for stationary use. We still print your logo on it)

SCXK has been specialized in LED field since 2005. We are a leading manufacturer an provider of technical solution of full color indoor and outdoor led display,rental LED display, led modules where in Shenzhen city Guang dong province,China
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
6. Your reply will be replied within 24 hours.
7. Fast delivery: Usually 6-8 working days
8. Excellent R&D team,factory Price and assure you quality goods.
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
♦ Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.

P6 Outdoor Full Color SMD LED Die-Cast Aluminum Screen 1R1G1B 8000 Nits 0
Specification

LED Lamps Type SMD3535(High Brightness LEDs)
LED Standard Real Pixel(1R1G1B)
Red Wavelength 625-630nm
Green Wavelength 515-530nm
Blue Wavelength 465-475nm
LED Module Pixel Pitch 6mm
Module Size 192mmx192mm
Module Resolution 32*32dots
LED Cabinet Cabinet Size 960mmX960mm
Cabinet Resolution 160pixels *160pixels
Cabinets Material Sealed Iron Cabinet
LED screen Pixel Density 27777pixels/sqm
Drive IC MBI5024
Power Supply Series connection
Brightness 8000cd/sqm
Display Color 16.7million
Viewing Angle 160°(Horizontal),110°(Vertical)
Best Viewing Distance 6m~200m
Max Power Consumption 600 w/sq.m

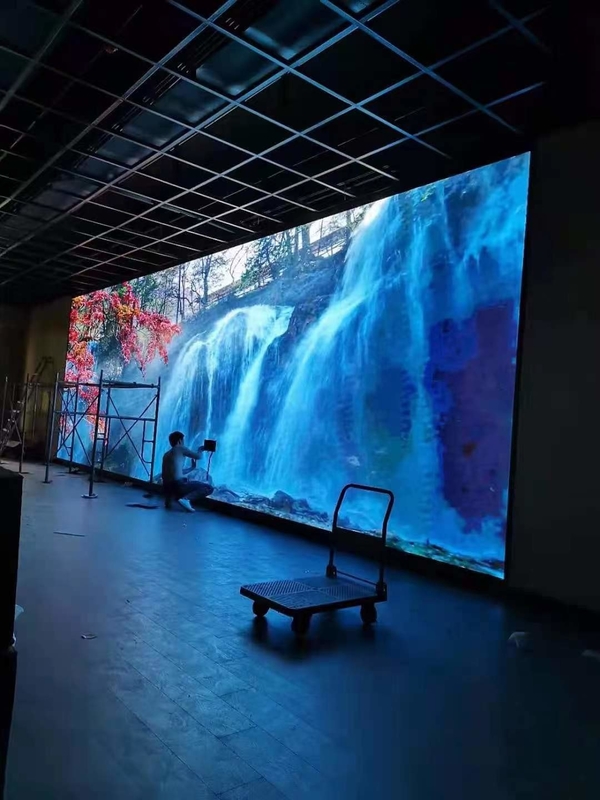

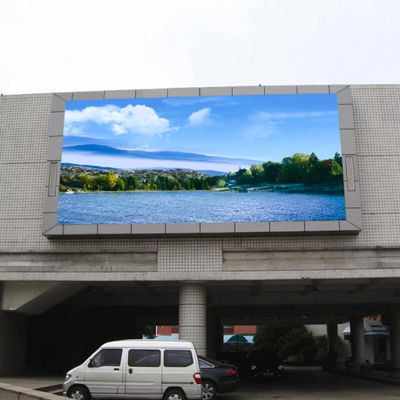

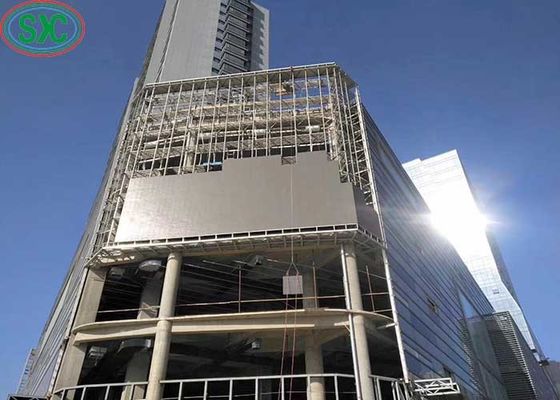

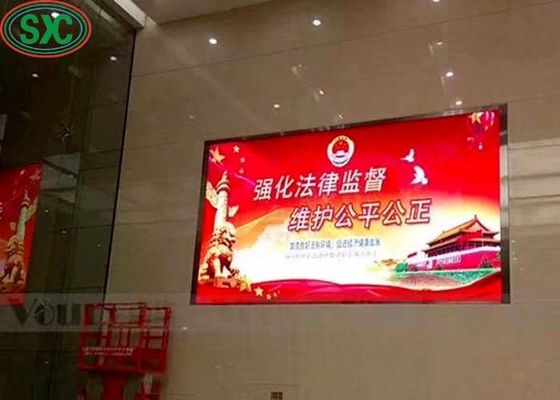

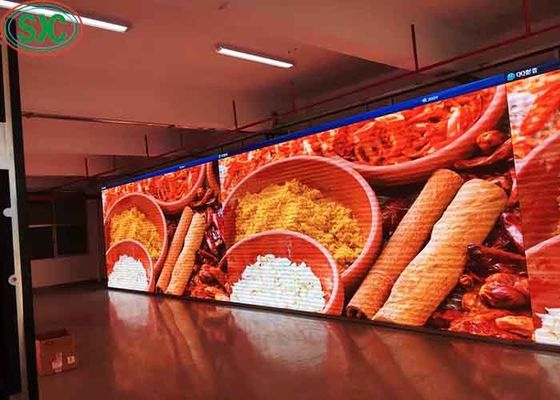

Project case.
P6 Outdoor Full Color SMD LED Die-Cast Aluminum Screen 1R1G1B 8000 Nits 1
♦ Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.

P6 Outdoor Full Color SMD LED Die-Cast Aluminum Screen 1R1G1B 8000 Nits 2



FAQ

Q1. What's the warranty of your LED Display Screen ?

A1. We have a 3-years warranty for our led display screen, and 100,000 hours life span of the led lamps.


Q2. What about your pre-sale service and post-sale service?

A2. For pre-sale service. We have a professional sales team and a 8 years technical team who are willing to answer your question 24/7.

We can offer a whole complete solution for your project!

For post-sale service. We can instruct you how to use, adjust the screens, and change the boken modules with spare parts.

Also, we can send technicals to your country to solve problems. Mostly, our led display will not have big problems within warranty time!
