| Brand Name: | SCXK |
| Model Number: | SCXK-P3 |
| MOQ: | 1sqm can be available |
| Price: | negotiation |
| Payment Terms: | L/C, T/T, Western Union |
High Resolution Full Color SMD LED Screen P3 Die Cast Aluminum Cabinet
Quick details
SCXK has been specialized in LED field since 2005. We are a leading manufacturer an provider of technical solution of full color indoor and outdoor led display,rental LED display, led modules where in Shenzhen city Guang dong province,China
We adopt the Taiwan epistar chip,National star,king-star light .and all kinds of the customed light,it’s more high definition and brightness( we still provide the led display module and spare parts to you,you can assemble it in your country.It can help you save shipment cost and custom fee) ( the iron and steel cabinet led display is very cheaper and cost-effective. very safe ,good for fixed usage .we still print your logo on it)![]()
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
♦ Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
♦ Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
♦ Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.

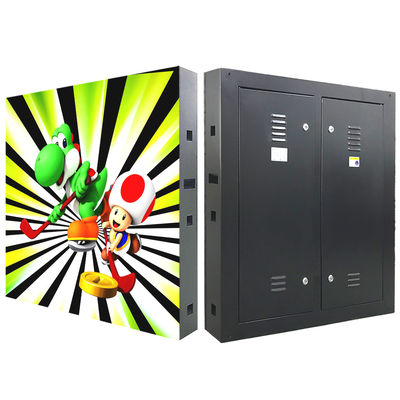

P3 indoor smd full color smd led display iron and steel cabinet for fixed usage
| LED Lamps | Type | SMD2121 (High Brightness LEDs) | |||||||
| LED Standard | Real Pixel(1R1G1B) | ||||||||
| Red Wavelength | 625-630nm | ||||||||
| Green Wavelength | 515-530nm | ||||||||
| Blue Wavelength | 465-475nm | ||||||||
| LED Module | Pixel Pitch | 3mm | |||||||
| Module Size | 192mm x192mm | ||||||||
| Module Resolution | 64dots x 64dots | ||||||||
| LED Cabinet | Cabinet Size | 576mm x576mm | |||||||
| Cabinet Resolution | 192pixels *192pixels | ||||||||
| Cabinets Material | Sealed Iron Cabinet | ||||||||
| LED screen | Pixel Density | 111111pixels/sqm | |||||||
| Drive IC | MBI5024 | ||||||||
| Power Supply | Series connection | ||||||||
| Brightness | 2500cd/sqm | ||||||||
| Display Color | 16.7million | ||||||||
| Viewing Angle | 160°(Horizontal),110°(Vertical) | ||||||||
| Best Viewing Distance | 3m~200m | ||||||||
| Max Power Consumption | 600 w/sq.m | ||||||||
![]()
Our advantage:
1) Manufacturer with over 11 years experience in electronic goods & PCB assembly.
2) over 400 employees.
3) 6 high-speed SMT machine, 6 Yamaha SMT machine, 2 AOI testing equipment, etc.
4) 10 production lines.
5) 6S management.
6) Passed ISO9001:2008 & ISO14001:2004 and CE/RoHS/FCC certified.![]()
