| Brand Name: | SCXK |
| Model Number: | P8 |
| MOQ: | 3 pcs |
| Price: | negotiation |
| Payment Terms: | Western Union, MoneyGram, D/P, T/T, L/C |
| Supply Ability: | 5000sqm per month |

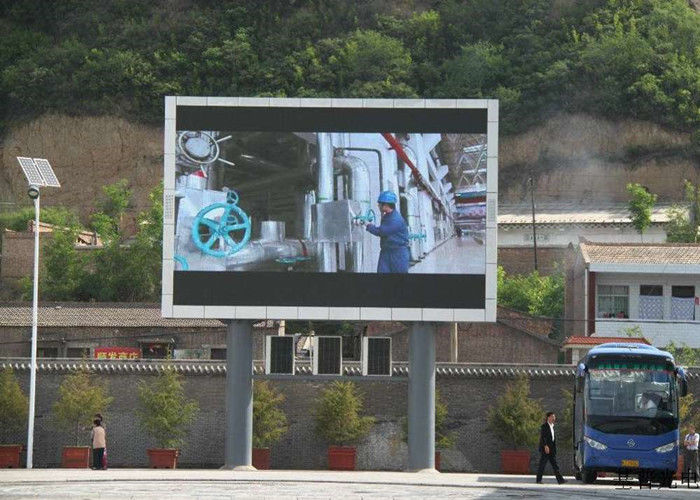

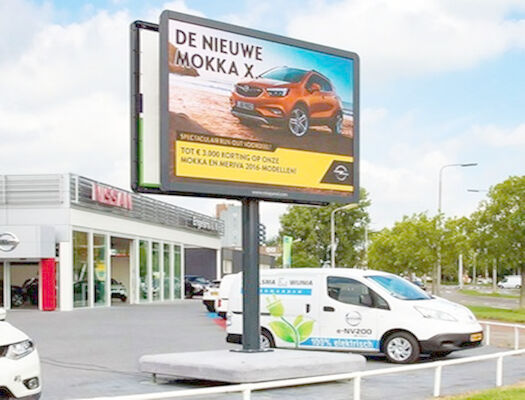

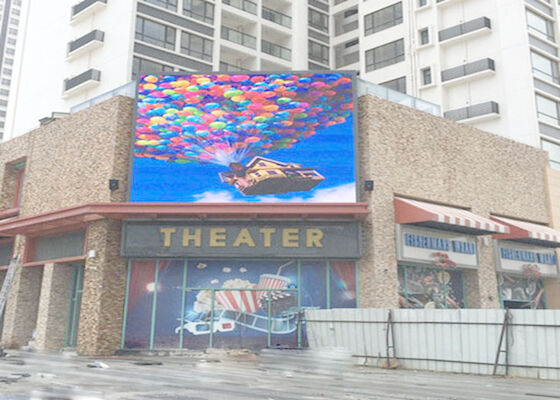

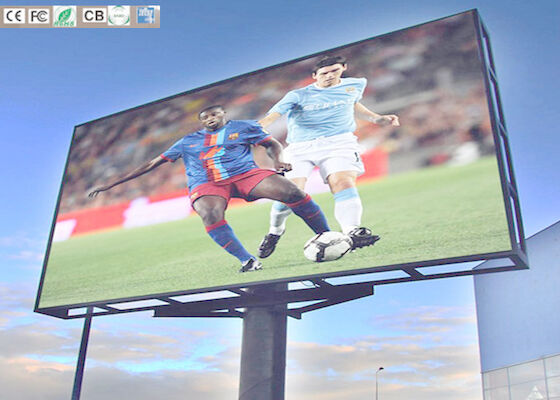

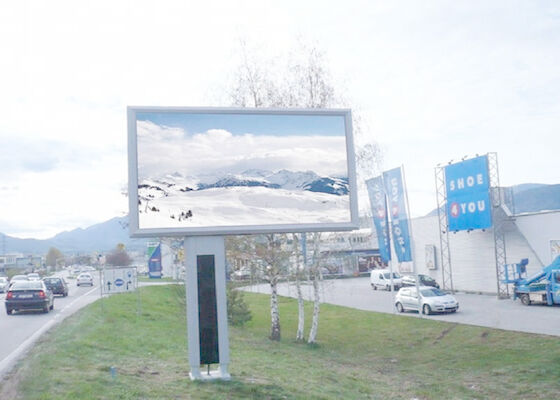

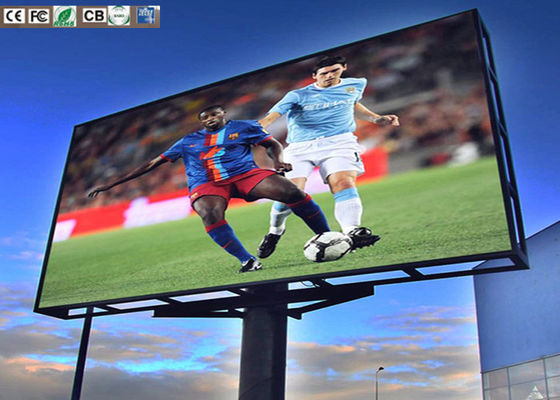

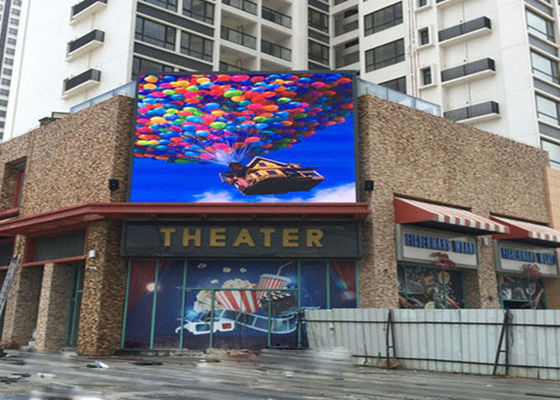

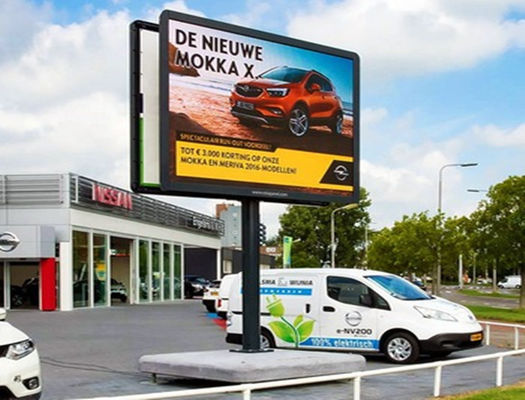

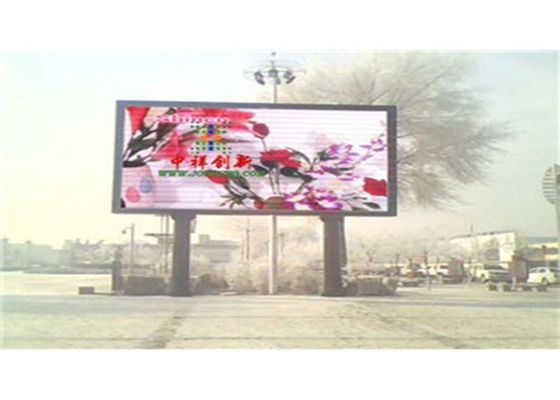

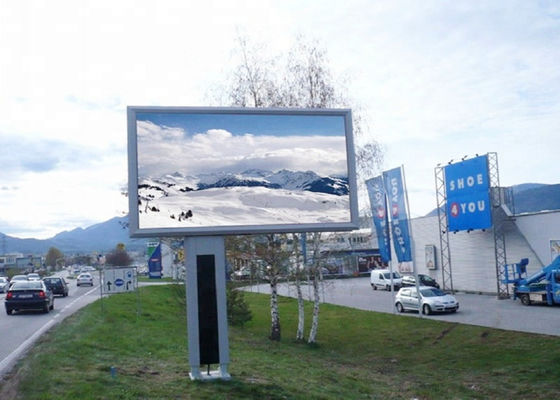

P8 Outdoor Digital Comercial Advertising Led Display Billboard with 4x5m
Technical Parameters:
| Model P8 | |
| Pixel Pitch | 8mm |
| Module dimension | 320mm*160mm |
| Density | 15625dots/sqm |
| Brightness (calibrating value) | 5000nits |
| View Angle (min, 50% brightness) | H≥110° V≥50° |
| Viewing distance | 8~200m |
| Brightness Control | 100 levels |
| Grey Scale | 1024 |
| Frame Frequency | ≥60Hz |
| Refresh Rate | ≥1200Hz |
| Drive Type | Constant current drive |
| Scan Type | 1/4 scan |
| Input Voltage | AC 220/110V±15% |
| Average Power Consumption(W/sqm) | 280W/ sqm |
| Max Power Consumption(W/sqm) | 80W/ sqm |
| Color Temperature | 6500 deg. k |
| Malfunction dot rate | ≤0.0001 |
| MTBF | 5000hs |
| Module Brightness Uniformity | ≤4% |
| Input signal | RF, S-VIDEO, RGB, RGBTV, YUT, YC, COMPOSITON. |
| Control system | LINSN Synchronous Control System |
| Software | LED Studio |
| System Operation Platform | WINDOWS 2000, XP, 7, Vista etc. |
| Protection Level | IP65 |
| Earth Leakage Current | <1.5mA |
| Operating Temperature | -25℃ ~ +65℃ |
| Storage Temperature | -35℃ ~ +85℃ |
| Operating Humidity Range |
operating 10~99% |
![]()
♦ Production Process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Packaging and Shipping
Wooden case or flight case package are available.
Shipping by sea, air or DHL, multiple shipping ways for your choice.
♦ Description:
•With sensitive control system, it can adjust screen brightness automatically according to the lighting change of indoor and outdoor, saving energy to reduce your operating costs greatly.
•High refresh rate and high gray make the picture more realistic, which meets the demand of high visual quality of commercial usage.
•The advertising contents can be changed at any time, for different customers and various advertisements.
•you can know the display operation anytime, anywhere.
• it can turn on and turn off the screen by software timing or manually at any time, achieving unattended function.
♦ Our Advantages
Professional Manufacturer of led display
1. OEM service, No MOQ
2. Easy installation, regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case, you are the boss.
6. Your reply will be replied within 24 hours.
7. Fast delivery: Usually 6-8 working days
8. Excellent R&D team, factory price and assure you quality goods.
♦ Project in Malaysia
![]()
