Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | P10 |
| Minimum Order Quantity: | 1 sqm |
|---|---|
| Price: | negotation |
| Packaging Details: | plywood case, flight case, you choose what you like. |
| Delivery Time: | 7-10 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 sqm per month |
| Usage: | Indoor | Tube Chip Color: | Full Color |
|---|---|---|---|
| Display Function: | Video-Graphics-Animation | Screen Dimension: | Customized |
| Module Size: | 320mm*160mm | Cabinet Size: | 960*960MM/1280*1280MM |
| Power Supply: | Meanwell/Chuanglian/YHY | Warranty: | 3 Year And Lifetime Maintenance |
| High Light: | perimeter led screen,led perimeter advertising boards |
||
Waterproof Stadium Led Display Full Color / Perimeter Led Screen 960X960 MM
Advantages:
1. Use the flexible soft rubber module mask protect the players and LED display itself.
2. High brightness, large viewing angle, clear and vivid picture, high contrast degree and good waterproof function.
3. With the speciality structure support, the cabinet easy to move, also the support structure can be taken off and folded up easily.
4. The football arena full color LED display is applicable to the advertising screen sports such as arena football, basketball, volleyball, etc.
Specification:
| model | P10 | |
| Pixel unit module | Pixel pitch(mm) | 10 |
| Pixel density (dots/sqm) | 10000 | |
| LED type | SMD | |
| Module size(mm) | W320×H160 | |
| Pixel composing | RGB full color | |
| Pixel unit screen | screen size(mm) | 960*960mm |
| module Resolution (nits) | 32*16 | |
| Cabinet structure | Water-proof | |
| installation | fixed on the back | |
| screen material | magnesium alloy | |
| Protect degree | IP65 front ,IP54 rear | |
| Viewing distance(m) | 10~100m | |
| Brightness(cd/sqm) | 7000 cd/sqm or 7000 nits or more | |
| Power consumption (w/sqm) | Max 900W/sqm ,can be custom make 500W max | |
| Driving IC | 1/4 scan MBI Brand Driver | |
| Refresh rate(HZ) | ≥2000- 3000 | |
| Viewing angel(c) | H120 V110 | |
| Other parameter | Image adjustment | contrast, tonal, the color saturation, gray calibration coefficient, color range, image variable times, etc |
| Image processing | Video noise reduction, fast motion compensation, edge to sharpen, edge smooth, color space transformation and control, coordinate transformation of grey scale, etc | |
| Brightness uniformity | The whole screen on the monochrome, minimum pixel luminance and the brightest pixel luminance than more than 0.9 | |
| Gray | 65536 | |
| Color temperature/contrast | Red, green, and blue brightness and contrast can through the software level 100 adjustable, color temperature can be adjusted according to need | |
| Transmitting Distance | The shielded twisted-pair cable transmission distance for 100 meters, the biggest up to 140 m. Multimode fiber of up to 500 meters, the single-mode optical fiber to 20 kilometers | |
| Input Signal | RF,S-VIDEO,RGBTV,YUT,YC,COMPOSITION | |
| Control System | PCTV non-liner editing card+DVI display card+main control card+optic fiber transmission(Optional) or video dealer | |
| Average No Failure Time | 20000 hours | |
| Life span | 100,000 hours | |
| Out-of Control rate | 0.0001 | |
| To floor drain current | Less than 3.5MA | |
| Control system | Synchronized | |
| Operating Environment Temperature | -20°C—65°C Optional | |

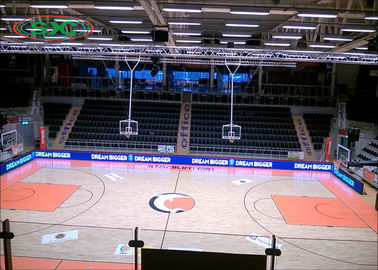

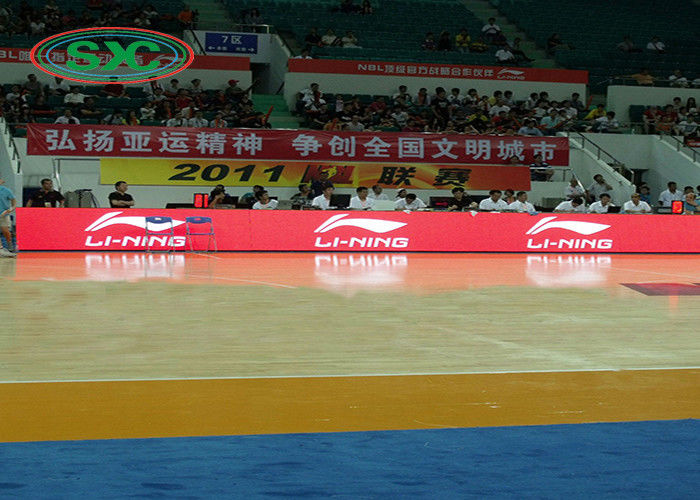

Product show
Buying Guides
In order to offer you a suitable solution, please follow the guides bellowing :
1,Star effect or video effect which you need.
2,Dimension (Width and Height)
3,Location of installation. (picture is best)
4,Purpose. ( what are you going to do with the LED Curtain)
After-Sale Service
1. Three year warranty , Lifetime free maintenance.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on
6. Special service for big project, such as stadium, exhibitions, squares and so on.
Product item
Many selection for your screen ,welcom to visit our factory
Outdoor series:
{P3.91,P4,P4.81,P5,P5.95,P6,P6.67,P8(SMD)}{P10,P12,P16,P20,P25(DIP)} outer full color led module/display.
Indoor series:
P2,P2.5,P3,p3.91,P4,P5,P6,P7.62,P6,P10(SMD) indoor full color led module/display.
Company profile
Certificate
Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
Contact
Salesman: Andy
Skype: Andy he
Wechat: he474367
Tel: +86-13574641422(whatsapp)
E-mail:Andy_he@scxled.cn
Web: www.rgbleddisplays.com
Save your time and money with us!
