Full color outdoor P10 LED billboard 2 scan driving mode with high brightness

Full color outdoor P10 LED billboard 2 scan driving mode with high brightness

  • Full color outdoor P10 LED billboard 2 scan driving mode with high brightness
  • Full color outdoor P10 LED billboard 2 scan driving mode with high brightness
  • Full color outdoor P10 LED billboard 2 scan driving mode with high brightness
  • Full color outdoor P10 LED billboard 2 scan driving mode with high brightness
  • Full color outdoor P10 LED billboard 2 scan driving mode with high brightness
  • Full color outdoor P10 LED billboard 2 scan driving mode with high brightness
Full color outdoor P10 LED billboard 2 scan driving mode with high brightness
Product Details:
Place of Origin: CHINA
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P10
Payment & Shipping Terms:
Minimum Order Quantity: 1 sqm
Price: negotiation
Packaging Details: plywood case, flight case, you choose what you like.
Delivery Time: 7-10 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Usage: Outdoor, Stadium Games Tube Chip Color: Full Color
Display Function: Animation Pixels: 10mm
Chip: Epistar IP Rating: IP65
Module Size: 320*160mm Warranty: 3 Years
High Light:

perimeter led screen

,

led perimeter advertising boards

Full color outdoor P10 LED billboard 2 scan driving mode with high brightness



The stadium LED display description

The LED display screen of the stadium is specially designed according to the special application requirements of the stadium. It is mainly used in commercial advertisements, highlights, slow-motion playback, close-up shots, etc. in stadiums to bring the audience a perfect visual feast. . Providing high-quality display screens for all kinds of sports events, the LED video image processor can realize unlimited real-time communication, manage and integrate dynamic display content (such as: video, time, text, graphics, animation and scoreboard systems, etc.) But also through the software partition function to achieve a full-screen multi-window display, can display images, real-time display, text, clock, match scores. Unmatched video quality, excellent color performance, real-time live broadcast of events, sponsors and organizers of sports events to enhance the brand image, pass promotional information, but also ensure that each audience can experience the stimulation and perfection of the scene competition.



Stadium LED display function
1. The commercial advertisement plays an icing on the game scene, with perfect picture quality and sound effects, making the scene more competitive and shocking.
2. Introduce player information and the actual situation of the game. The large and clear live broadcast of the game breaks the limits of the seat and makes it easier to watch the game from a distance.
3, connect the referee system, timing scoring system, LED display can play time and scores in real time.

4, slow-motion playback has become the basis for the referee to make a correct decision, maintaining the fairness and fairness of the game and reducing unnecessary conflicts.
5, highlights, slow-motion playback, close-ups, to bring the audience a perfect visual feast.



Parameter specification

model P10
Pixel unit module Pixel pitch(mm) 10
Pixel density (dots/sqm) 10000
LED type SMD
Module size(mm) W320×H160
Pixel composing RGB full color
Pixel unit screen screen size(mm) 960*960mm
module Resolution (nits) 32*16
Cabinet structure Water-proof
installation fixed on the back
screen material magnesium alloy
Protect degree IP65 front ,IP54 rear
  Viewing distance(m) 10~100m
Brightness(cd/sqm) 7000 cd/sqm or 7000 nits or more
Power consumption (w/sqm) Max 900W/sqm ,can be custom make 500W max
Driving IC 1/4 scan MBI Brand Driver
Refresh rate(HZ) ≥2000- 3000
Viewing angel(c) H120 V110
Other parameter Image adjustment contrast, tonal, the color saturation, gray calibration coefficient, color range, image variable times, etc
Image processing Video noise reduction, fast motion compensation, edge to sharpen, edge smooth, color space transformation and control, coordinate transformation of grey scale, etc
Brightness uniformity The whole screen on the monochrome, minimum pixel luminance and the brightest pixel luminance than more than 0.9
Gray 65536
Color temperature/contrast Red, green, and blue brightness and contrast can through the software level 100 adjustable, color temperature can be adjusted according to need
Transmitting Distance The shielded twisted-pair cable transmission distance for 100 meters, the biggest up to 140 m. Multimode fiber of up to 500 meters, the single-mode optical fiber to 20 kilometers
Input Signal RF,S-VIDEO,RGBTV,YUT,YC,COMPOSITION
Control System PCTV non-liner editing card+DVI display card+main control card+optic fiber transmission(Optional) or video dealer
Average No Failure Time 20000 hours
Life span 100,000 hours
Out-of Control rate 0.0001
To floor drain current Less than 3.5MA
Control system Synchronized
Operating Environment Temperature -20°C—65°C Optional

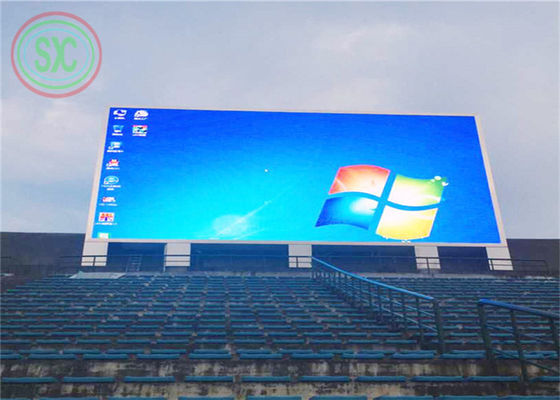

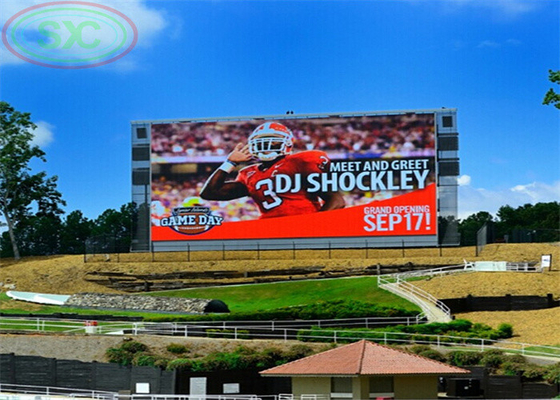

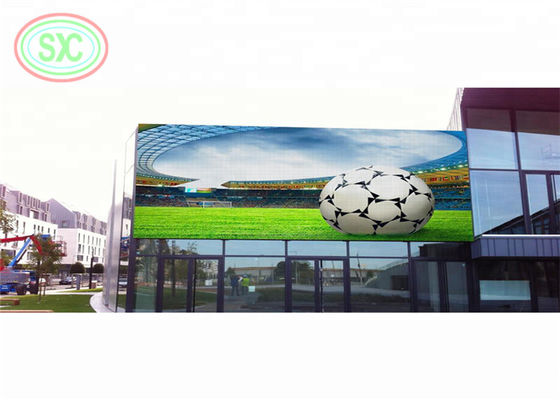

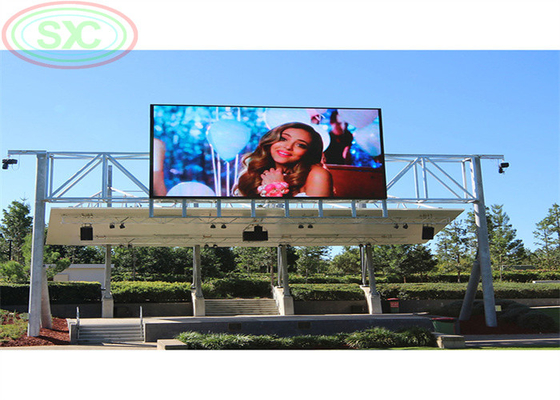

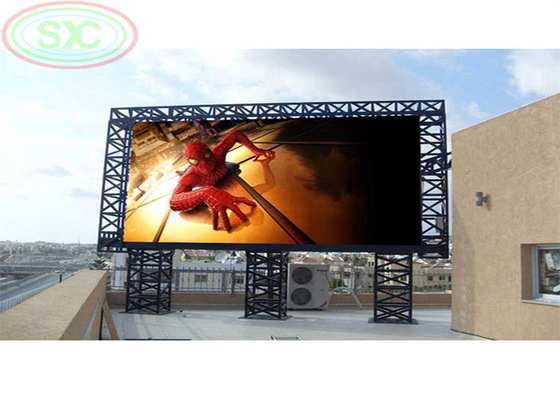

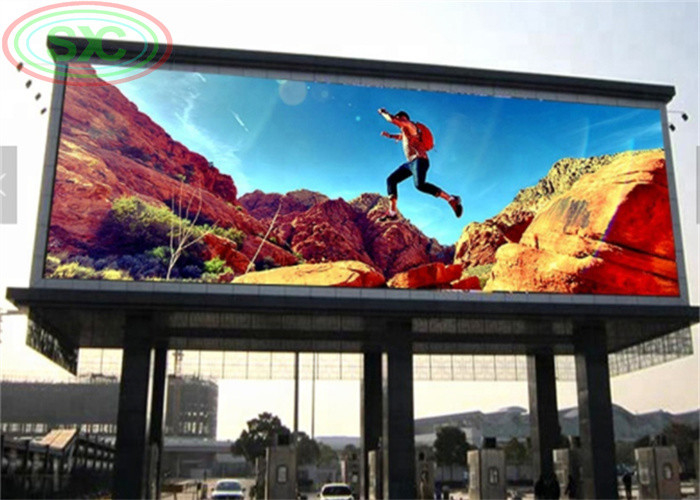

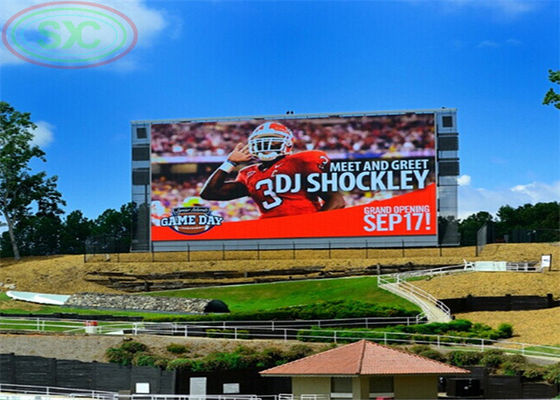

Product show

Full color outdoor P10 LED billboard 2 scan driving mode with high brightness 0

Full color outdoor P10 LED billboard 2 scan driving mode with high brightness 1



Buying Guides
In order to offer you a suitable solution, please follow the guides bellowing :
1,Star effect or video effect which you need.
2,Dimension (Width and Height)
3,Location of installation. (picture is best)
4,Purpose. ( what are you going to do with the LED Curtain)



After-Sale Service
1. Three year warranty , Lifetime free maintenance.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on
6. Special service for big project, such as stadium, exhibitions, squares and so on.



Product item
Many selection for your screen ,welcom to visit our factory
Outdoor series:
{P3.91,P4,P4.81,P5,P5.95,P6,P6.67,P8(SMD)}{P10,P12,P16,P20,P25(DIP)} outer full color led module/display.
Indoor series:
P2,P2.5,P3,p3.91,P4,P5,P6,P7.62,P6,P10(SMD) indoor full color led module/display.
Full color outdoor P10 LED billboard 2 scan driving mode with high brightness 2
Full color outdoor P10 LED billboard 2 scan driving mode with high brightness 3



Company profile

Full color outdoor P10 LED billboard 2 scan driving mode with high brightness 4

Full color outdoor P10 LED billboard 2 scan driving mode with high brightness 5



Certificate
Full color outdoor P10 LED billboard 2 scan driving mode with high brightness 6


Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
