Advertisement Outdoor RGB LED Display P3.91 , Full Color Led Screen

Advertisement Outdoor RGB LED Display P3.91 , Full Color Led Screen

  • Advertisement Outdoor RGB LED Display P3.91 , Full Color Led Screen
  • Advertisement Outdoor RGB LED Display P3.91 , Full Color Led Screen
  • Advertisement Outdoor RGB LED Display P3.91 , Full Color Led Screen
Advertisement Outdoor RGB LED Display P3.91 , Full Color Led Screen
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P3.91
Payment & Shipping Terms:
Minimum Order Quantity: 5sqm
Price: by negotiation
Packaging Details: flight case, wooden case, carton, it's up to you
Delivery Time: 10 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Module Size: 250*250 Cabinet Size: 500*1000 / 1000*1000 /
Scan: 1/8 Brightness: 6000
Max Power Consumption: 1200 Average Power Consumption: 380
Min.View Distance: 3
High Light:

rgb led screen


full color outdoor led display

P3.91 Outdoor RGB LED Display​

Pixel Pitch: 3.91mm

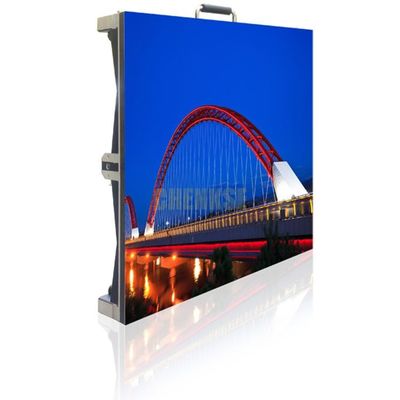

Cabinet for Rental: W500mm×H1000mm
Die-casting aluminum alloy

Advertisement Outdoor RGB LED Display P3.91 , Full Color Led Screen 0


• Die-casting aluminium or standard iron cabinet available for different requirement and cost control, easy installation for indoor rental and fixed.
• High gray, high refresh and high contrast ensure images more clear and vivid.
• Seamless connetion installation, as easy as you wish to install the whole screen.
• Lowest radiation, lowest harm to body and highest stability of signal transmission.
• Excellent cooling effect, operationg without any noise.
• Lightweight, thin design, low transportation cost and installation cost.
Application: The hot product for indoor rental application ,advertisng, modeling, wedding ceremony, shows, stages, commercial use and other fields.
Parameters Value
Product Model P3.91 indoor full color display
Pixel Pitch 3.91mm
Driving Mode 1/16 scan constant current
Pixel Configuration 1R1G1B
LED Type 3-in-1 SMD2121

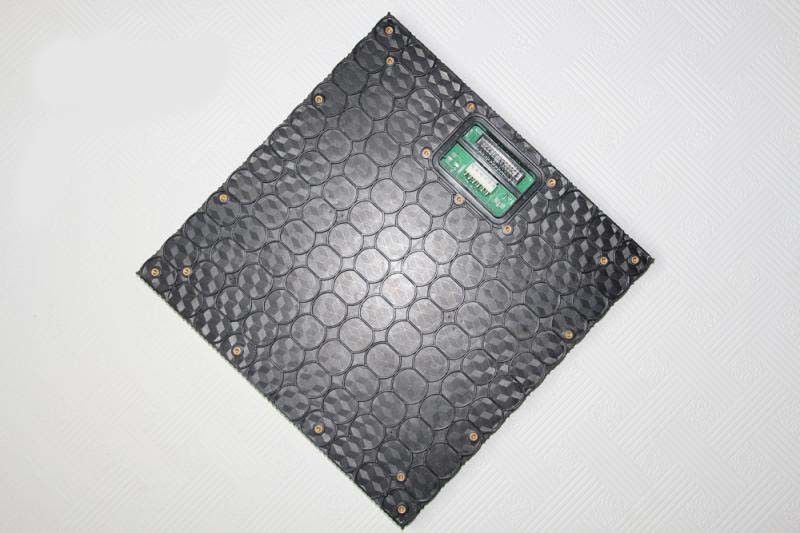

Module Size 250mm×250mm
Cabinet Size Die-casting aluminium W500mm×H1000mm
Protection IP65
Pixel Density 65410 dots/m²
Viewing Angle H≥120° V≥120°
Input Voltage 110~220VAC±15%
Max./Avg. Power Comsumption 700/220 W/m²
Brightness ≥6000 cd/m²
Brightness Conformity >95%
Video Frame Rate 60 frames/s
Refresh Rate ≥1920Hz
Gray Level 15 bits(32768)
Colors 32768³
Recommended Viewing Distance ≥3.91m
Decay Rate ≤5%/year
Defective Dots Rate <0.0001 (LED industry standard<0.0003)
MTBF ≥10000 hours
Lifespan ≥50000 hours
Control Way Computer, Video-synchronous, Real-time, Off-line, Wireless, Internet etc.
Input Signal Format (with video processer) AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP etc.
Operating Temperature/Humidity -10℃~+40℃/10-80% no Condensation
Storage Temperature/Humidity -20℃~+60℃/10-85% no Condensation
Advertisement Outdoor RGB LED Display P3.91 , Full Color Led Screen 1

1:Flight Case(5 cabinets in one case)
Gross Weight:150KG

2:Wooden case(5 cabinets in one case)
Gross Weight:180KG


Our Services:
Buying Guides

In order to offer you a suitable solution,pleasefollow the guides belowing:

1, star effect or video effect which you need.

2,Dimension (Width and Height)

3,Location of installation. (picture is best)

4,Purpose. ( what are you going to do with the LED Curtain)


After-Sale Service
1. One year warranty , Lifetime free maintenance.

2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.

3. Customer satisfaction tracking report.

4. Free technician training.

5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on

6. Special service for big project, such as stadium, exhibitions, squares and so on.


Company Information
Shenzhen SCXK Electronics Co.,Ltd has the standard new factory,and about 100 employees.
We have outstanding R&D department and after-sell service workers,and separately design ability.
Our product mainly included led single dual color display,led indoor full color display;led outdoor full color display,led wireless car used screen etc.It can be used on the shopping more,bank,bus station,train station,Center of downtown,airport,school,factory,bus,taxi and son on.
We adapt many methods and very good after-sell service to sell our product all over the world.
Whenever and wherever we are,we always take the principle that is:professional makes good quality,good price product market to provide perfect product and service for our customers.
