| Brand Name: | SCXK |
| Model Number: | SCXK-P6 |
| MOQ: | 1sqm can be available |
| Price: | negotiation |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 3000sqm per month |
High Brightness outdoor P6 Iron cabinet SMD LED Screen Waterproof With CE RoHS FCC Certified
Quick details
All the led display will be through the temperature and water proof test,it can guarantee the quality and keep good reputation .Choose us ,choose the success. If the working temperature is too lower, we can suggest the lower temperature power supply to you.If it’s rainy in your area,our water proof test cabinet is better for your choice
1) Manufacturer with over 11 years experience in electronic goods & PCB assembly.
2) over 400 employees.
3) 6 high-speed SMT machine, 6 Yamaha SMT machine, 2 AOI testing equipment, etc.
4) 10 production lines.
5) 6S management.
6) Passed ISO9001:2008 & ISO14001:2004 and CE/RoHS/FCC certified
Some led display parameter
| the hd full color outdoor P6 Led display parameter | ||||||
| Product name | outdoor P6 SMD led display | |||||
| Pixel pitch | 6mm | |||||
| Scanning method | 1/8 scan | |||||
| Module size: | 192mmx192mm | |||||
| Module resolution | 32x32dots | |||||
| Dot density | 27777 dots | |||||
| brightness | 7500cd/sqm | |||||
| Cabinet size | 960mmx960mm | |||||
| Cabinet resolution | 160x160dots | |||||
| Packaged | wooden box | |||||
| warranty | 3 years warrranty | |||||
| Power supply | Meanwell or chuanglian (110v or 220v) | |||||
| LED chip | Epistar | |||||
| Led lamp | Nationstar or kinglight | |||||
| Refresh rate | 1920hz | |||||
![]()
| Out door full color smd 3in1 led display | ||||||||
| Product | scanning method | module size (mm) | pixel | dot density | brightness | Cabinet size (mm ) | Price(sqm) | Notes |
| P3.91 Die cast aluminum (smd) | 1/8scan | 250x250 | 64x64dots | 65410dots | 7500cd | 500X1000 | 1465.5$ | flight case package |
| P3.91 Iron cabinet | 1/8scan | 250x250 | 64x64dots | 65410dots | 7500cd | 1000x1000 | $1,396.50 | wooden packaged |
| P4 die cast aluminum cabinet (smd) | 1/8scan | 256x128 | 64x32dots | 62500dots | 7500cd | 512x512 | $111.50 | flight case package |
| P4 iron cabinet(smd) | 1/8scan | 256x128 | 64x32dots | 62500dots | 7500cd | 718x718 | $1,035.50 | wooden packaged |
| P4.81 die cast aluminum cabinet | 1/13scan | 250x250mm | 52x52dots | 43222dots | 7500cd | 500x500 | $1,035.50 | flight case package |
| P5 die cast aluminum cabinet | 1/8scan | 320x160 | 64x32dots | 40000dots | 7500cd | 640x640 | $825.50 | flight case package |
| P5 Iron cabinet | 1/8scan | 320x160 | 64x32dots | 40000dots | 7500cd | 960x960 | $795.50 | wooden packaged |
| P5.95 die cast aluminum cabinet | 1/7scan | 250x250 | 42x42dots | 28246dots | 7500cd | 500x1000 | $795.50 | flight case package |
| P6 die cast aluminum cabinet | 1/8scan | 192x192 | 32x32dots | 27778dots | 7500cd | 576x576 | $715.50 | flight case package |
| P6 Iron cabinet | 1/8scan | 192x192 | 32x32dots | 27778dots | 7500cd | 960x960mm | $625.40 | flight case package |
| P6.67 die cast aluminum cabinet | 1/8scan | 320x160 | 48x24dots | 22478dots | 7500cd | 640x640 | $765.50 | flight case package |
| P8 die cast aluminum cabinet | 1/4scan | 320x160 | 40x20dots | 15625dots | 7500cd | 640x640 | $507.50 | flight case package |
| P8 Iron cabinet | 1/4scan | 256x128mm | 32x16dots | 15625dots | 7500cd | 1024x1024 | $480.50 | wooden packaged |
| P10 Die cast aluminum cabinet | 1/4scan | 320x160mm | 32x16dots | 10000dots | 7500cd | 640x640 | $500.50 | flight case package |
| P10 Iron cabinet(DIP) | 1/4scan | 160X160 | 16x16dots | 10000dots | 7500cd | 960x960 | $539.50 | wooden packaged |
| P10 Iron cabinet (smd) | 1/4scan | 320x160 | 32x16dots | 10000dots | 7500cd | 960x960 | $425.50 | wooden packaged |
| P16Iron cabinet | static scan | 256x256 | 16x16dots | 3906dots | 7500cd | 1024x1024 | $555.50 | wooden packaged |

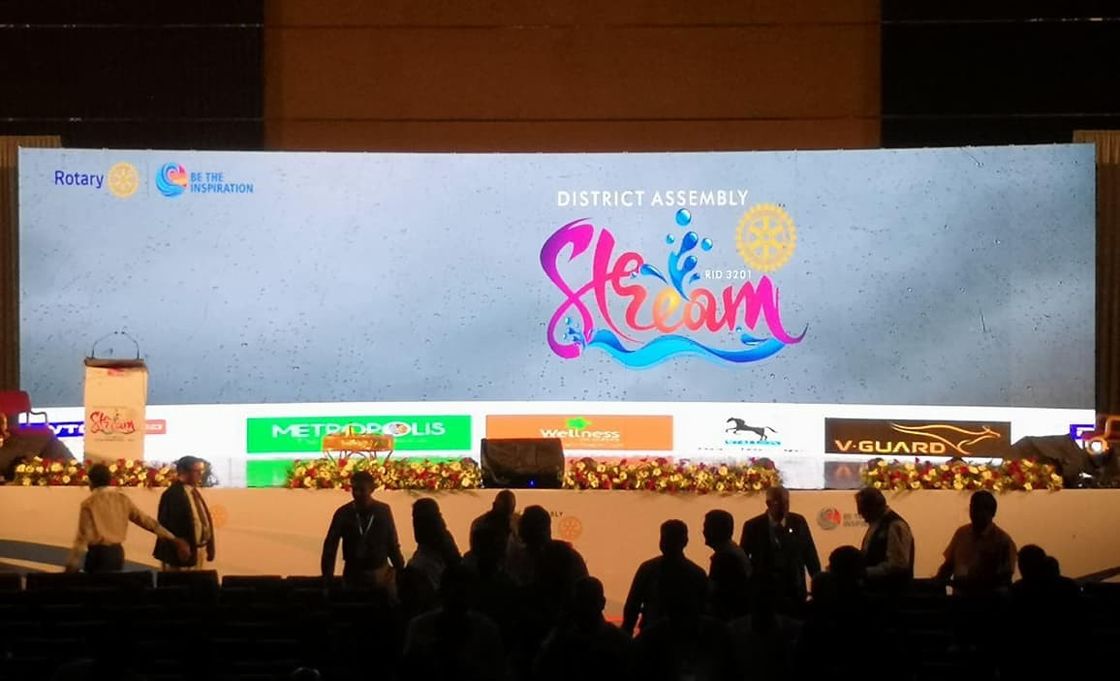

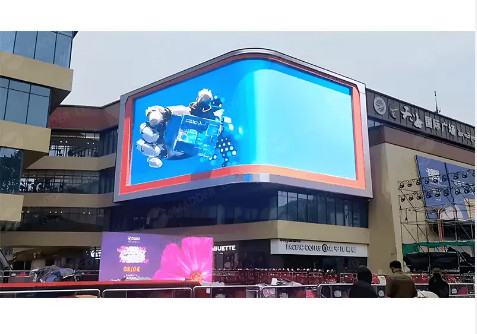

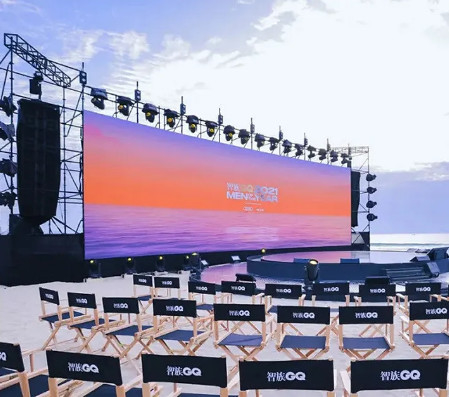

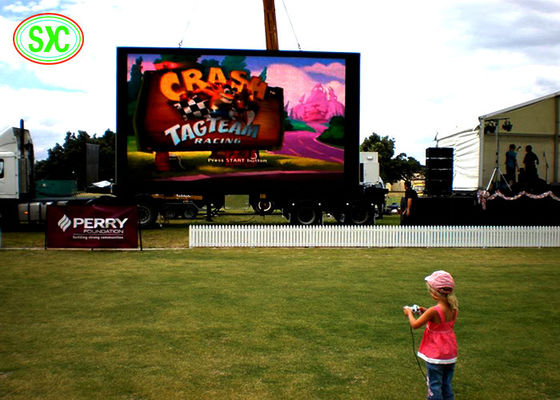

Stage,Sports,advertising,traffic,events,stadium,shopping center,airport,exhibitions, car shows,
fashion shows, concerts, ceremonies, entertainment,etc.
![]()
The led display will be packaged as your requirements. Such as the wooden box,paper box, flight case and so on. All the them will be protected well .No any damage during the transportation.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you. After-sales:We will track the products usage and then constantly perfect our products.
Whats your payment term? How long it takes to delivery?
A3. We accept T/T and L/C, For both T/T and L/C, At least 30% deposit in advance, and the rest 70% before delivery.Our average Production time is 10 days, after receiving the deposit.
What's the control system?
A4. For synchronization control. We use Nova, Linsn Or Colorlight control system.
For asynchronous control We use Onbon, or Xixun control system. just feel free to contact us for more business information.Any feedbacks will be highly appreciated!
